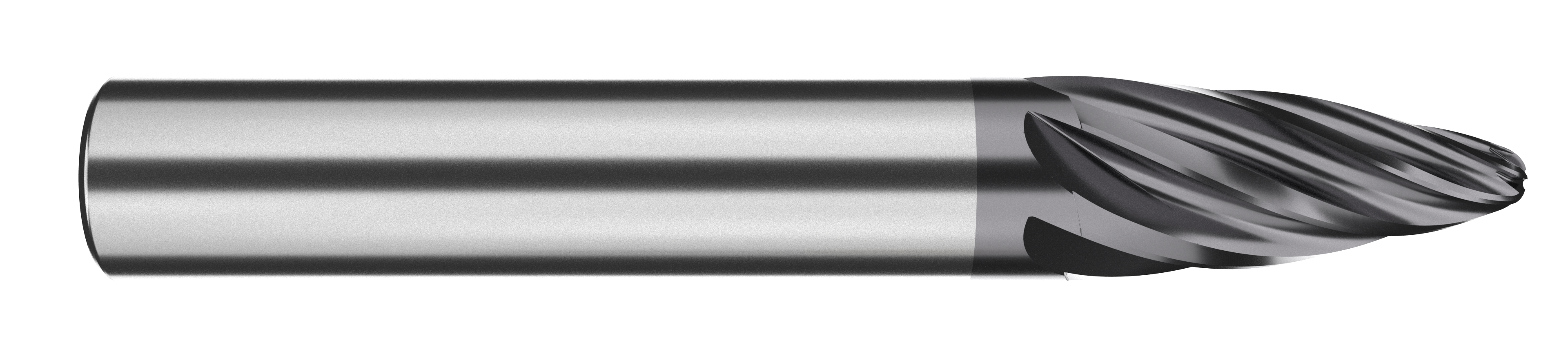

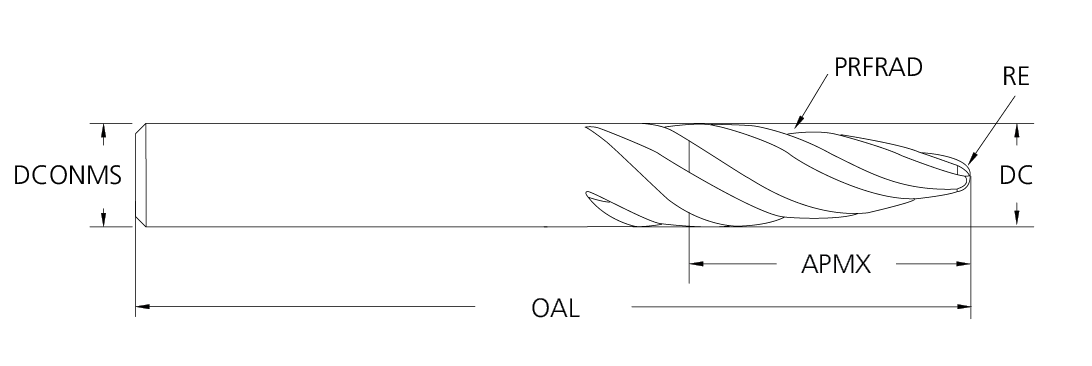

product photo product drawing

End Mills / XFO

Solid Carbide TuffCut® 3D Xtreme Finisher, Oval
Designed for 5-axis, 3D surfacing in tough-to-machine materials
  • Oval form
  • Multiple flute configurations for finishing & semi-finishing suitability
  • ALtima® Q coating for optimal heat & wear resistance, AQ=ALtima® Q coated
  • Progressive helix & rake angles for smooth, vibration free finishing
  • Enhanced edge preparation for increased strength & cutting-edge stabilization
  • Radius form tolerance + 0.010mm (.0004")

Materials

  • Steel
  • Stainless steel
  • Super-alloys and titanium
  • Hard material

Applications

  • 3D Surfacing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Nose Radius (RE) Major Radius (R2) NOF RH Coating Shank Type Available List Price
.2362 XFO-4M06R95AQ 19904 6mm 6mm 64mm 20.8mm 1mm 95mm 4 ALtima® Q Straight 70.00 158.47
.3150 XFO-4M08R90AQ 19905 8mm 8mm 64mm 24.5mm 1mm 90mm 4 ALtima® Q Straight 28.00 205.53
.3937 XFO-4M10R85AQ 19906 10mm 10mm 72mm 24.7mm 2mm 85mm 4 ALtima® Q Straight 30.00 220.8
.3937 XFO-6M10R85AQ 19907 10mm 10mm 72mm 24.7mm 2mm 85mm 6 ALtima® Q Straight 26.00 256.94
.4724 XFO-4M12R80AQ 19908 12mm 12mm 84mm 27.3mm 2mm 80mm 4 ALtima® Q Straight 37.00 266.06
.4724 XFO-6M12R80AQ 19909 12mm 12mm 84mm 27.3mm 2mm 80mm 6 ALtima® Q Straight 19.00 302.63
