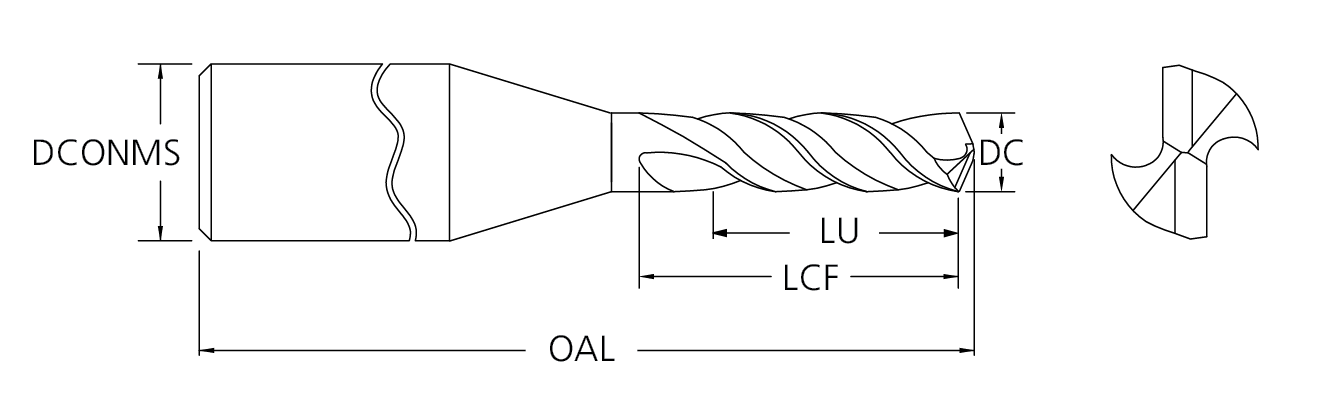

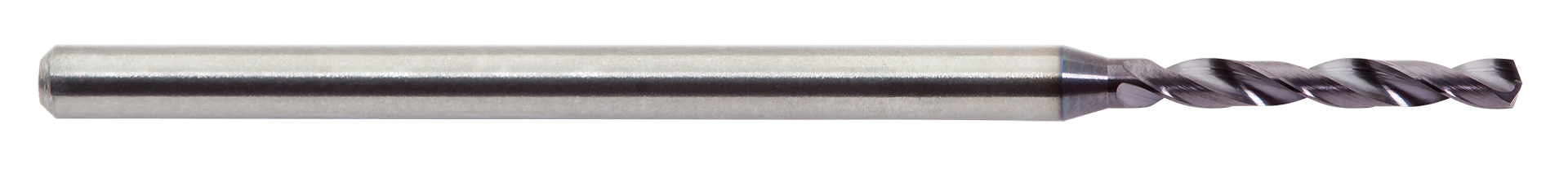

product photo product drawing

Drills / MXDSR

Solid Carbide Twister® Micro XD Drill
Designed for high performance drilling in a broad range of materials.  The web thinned point helps to reduce cutting forces during the drilling operation.  All sizes have post coating polish to improve chip evacuation. Sizes 0.8mm and above have honed cutting edges on the point which increases the strength of the cutting edges.
  • 2 Flute
  • Micro sizes
  • 5xD Regular length
  • Solid carbide
  • Single margin
  • 138° Point, web thinned
  • 30° Helix
  • ALtima® Coated, A=ALtima® coated
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0197 MXDSRM0050A 04694 0.50mm .0197 3mm 57mm 4mm ALtima® Straight 33.00 34.13
.0217 MXDSRM0055A 04696 0.55mm .0217 3mm 57mm 4mm ALtima® Straight 30.00 34.13
.0236 MXDSRM0060A 04698 0.60mm .0236 3mm 57mm 5mm ALtima® Straight 59.00 34.13
.0256 MXDSRM0065A 04700 0.65mm .0256 3mm 57mm 5mm ALtima® Straight 59.00 34.13
.0276 MXDSRM0070A 04702 0.70mm .0276 3mm 57mm 5mm ALtima® Straight 74.00 34.13
.0295 MXDSRM0075A 04704 0.75mm .0295 3mm 57mm 6mm ALtima® Straight 84.00 34.13
.0315 MXDSRM0080A 04706 0.8mm .0315 3mm 57mm 6mm ALtima® Straight 10.00 34.13
.0335 MXDSRM0085A 04708 0.85mm .0335 3mm 57mm 7mm ALtima® Straight 75.00 34.13
.0354 MXDSRM0090A 04710 0.9mm .0354 3mm 57mm 7mm ALtima® Straight 22.00 34.13
.0374 MXDSRM0095A 04712 0.95mm .0374 3mm 57mm 7mm ALtima® Straight 54.00 34.13
.0394 MXDSRM0100A 04714 1mm .0394 3mm 57mm 8mm ALtima® Straight 27.00 34.13
.0413 MXDSRM0105A 04716 1.05mm .0413 3mm 57mm 8mm ALtima® Straight 17.00 34.13
.0433 MXDSRM0110A 04718 1.1mm .0433 3mm 57mm 8mm ALtima® Straight 26.00 34.13
.0453 MXDSRM0115A 04720 1.15mm .0453 3mm 57mm 9mm ALtima® Straight 41.00 34.13
.0472 MXDSRM0120A 04722 1.2mm .0472 3mm 57mm 9mm ALtima® Straight 64.00 34.13
.0492 MXDSRM0125A 04724 1.25mm .0492 3mm 57mm 9mm ALtima® Straight 61.00 34.13
.0512 MXDSRM0130A 04726 1.3mm .0512 3mm 57mm 10mm ALtima® Straight 44.00 34.13
.0531 MXDSRM0135A 04728 1.35mm .0531 3mm 57mm 10mm ALtima® Straight 12.00 34.13
.0551 MXDSRM0140A 04730 1.4mm .0551 3mm 57mm 10mm ALtima® Straight 0.00 34.13
.0571 MXDSRM0145A 04732 1.45mm .0571 3mm 57mm 11mm ALtima® Straight 19.00 34.13
.0591 MXDSRM0150A 04734 1.5mm .0591 3mm 57mm 11mm ALtima® Straight 51.00 34.13
.0610 MXDSRM0155A 04736 1.55mm .0610 3mm 57mm 12mm ALtima® Straight 6.00 41.59
.0630 MXDSRM0160A 04738 1.6mm .0630 3mm 57mm 12mm ALtima® Straight 22.00 41.59
.0650 MXDSRM0165A 04740 1.65mm .0650 3mm 57mm 12mm ALtima® Straight 118.00 41.59
.0669 MXDSRM0170A 04742 1.7mm .0669 3mm 57mm 13mm ALtima® Straight 42.00 41.59
.0689 MXDSRM0175A 04744 1.75mm .0689 3mm 57mm 13mm ALtima® Straight 84.00 41.59
.0709 MXDSRM0180A 04746 1.8mm .0709 3mm 57mm 13mm ALtima® Straight 28.00 41.59
.0728 MXDSRM0185A 04748 1.85mm .0728 3mm 57mm 14mm ALtima® Straight 88.00 41.59
.0748 MXDSRM0190A 04750 1.9mm .0748 3mm 57mm 14mm ALtima® Straight 49.00 41.59
.0768 MXDSRM0195A 04752 1.95mm .0768 3mm 57mm 14mm ALtima® Straight 33.00 41.59
.0787 MXDSRM0200A 04754 2mm .0787 3mm 57mm 15mm ALtima® Straight 18.00 41.59
.0807 MXDSRM0205A 04756 2.05mm .0807 3mm 57mm 15mm ALtima® Straight 82.00 41.59
.0827 MXDSRM0210A 04758 2.1mm .0827 3mm 57mm 15mm ALtima® Straight 29.00 41.59
.0846 MXDSRM0215A 04760 2.15mm .0846 3mm 57mm 16mm ALtima® Straight 53.00 41.59
.0866 MXDSRM0220A 04762 2.2mm .0866 3mm 57mm 16mm ALtima® Straight 21.00 41.59
.0886 MXDSRM0225A 04764 2.25mm .0886 3mm 57mm 17mm ALtima® Straight 59.00 41.59
.0906 MXDSRM0230A 04766 2.3mm .0906 3mm 57mm 17mm ALtima® Straight 192.00 41.59
.0925 MXDSRM0235A 04768 2.35mm .0925 3mm 57mm 17mm ALtima® Straight 183.00 41.59
.0945 MXDSRM0240A 04770 2.4mm .0945 3mm 57mm 18mm ALtima® Straight 52.00 41.59
.0965 MXDSRM0245A 04772 2.45mm .0965 3mm 57mm 18mm ALtima® Straight 74.00 41.59
.0984 MXDSRM0250A 04774 2.5mm .0984 3mm 57mm 18mm ALtima® Straight 47.00 41.59
.1004 MXDSRM0255A 04776 2.55mm .1004 3mm 57mm 19mm ALtima® Straight 23.00 45.76
.1024 MXDSRM0260A 04778 2.6mm .1024 3mm 57mm 19mm ALtima® Straight 39.00 45.76
.1043 MXDSRM0265A 04780 2.65mm .1043 3mm 57mm 19mm ALtima® Straight 24.00 45.76
.1063 MXDSRM0270A 04782 2.7mm .1063 3mm 57mm 20mm ALtima® Straight 139.00 45.76
.1083 MXDSRM0275A 04784 2.75mm .1083 3mm 57mm 20mm ALtima® Straight 54.00 45.76
.1102 MXDSRM0280A 04786 2.8mm .1102 3mm 57mm 20mm ALtima® Straight 79.00 45.76
.1102 MXDSRM0280N1.062A 19929 2.8mm .1102 3mm 57mm 20mm ALtima® Straight 0.00 65.3
.1122 MXDSRM0285A 04788 2.85mm .1122 3mm 57mm 21mm ALtima® Straight 292.00 45.76
.1142 MXDSRM0290A 04790 2.9mm .1142 3mm 57mm 21mm ALtima® Straight 47.00 45.76
.1161 MXDSRM0295A 04792 2.95mm .1161 3mm 57mm 22mm ALtima® Straight 162.00 45.76
