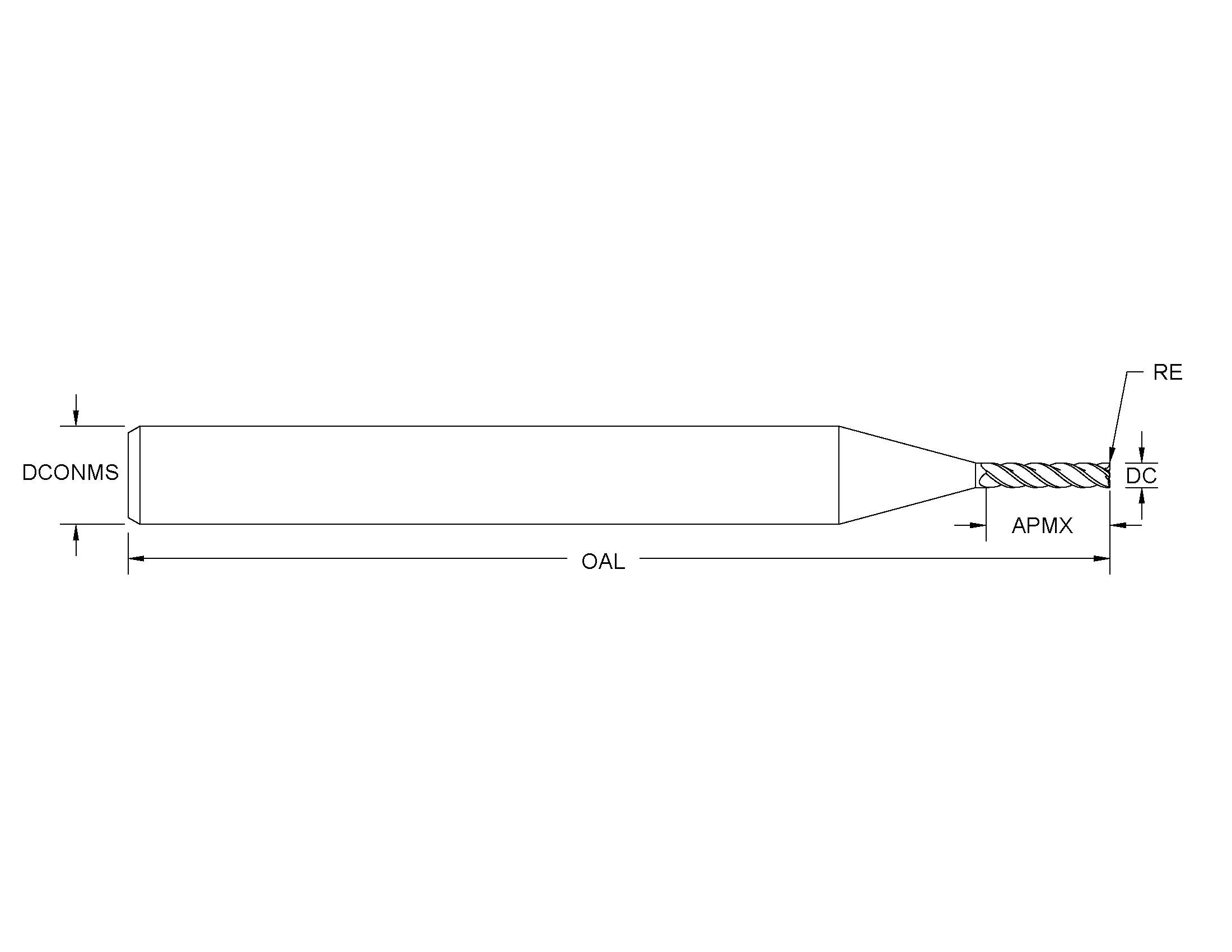

product photo product drawing

End Mills / 4MVL

Solid Carbide TuffCut® 4MVL 4 flute Micro End Mill for deep, dynamic milling applications in aerospace and medical grade materials.

  • Ultrafine carbide grade
  • 37° helix, variable pitch geometry for smooth cutting action
  • Thick core design for increased strength in long ap applications
  • Reinforced (1/4”) shank
  • 5xD cutting length
  • Square end and corner radius options
  • Center cutting
  • ALtima® Xtreme coated


Materials

  • Stainless steel
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) RE Coating Shank Type Available List Price
.0312 4MVL0312AX 20972 1/32 1/4 2-1/2 5/32 ALtima® Xtreme Straight 46.00 55
.0312 4MVL0312R.005AX 20973 1/32 1/4 2-1/2 5/32 0.005 ALtima® Xtreme Straight 39.00 57
.0468 4MVL0468AX 20974 3/64 1/4 2-1/2 1/4 ALtima® Xtreme Straight 28.00 55
.0468 4MVL0468R.010AX 20975 3/64 1/4 2-1/2 1/4 0.01 ALtima® Xtreme Straight 48.00 57
.0625 4MVL0625AX 20976 1/16 1/4 2-1/2 5/16 ALtima® Xtreme Straight 18.00 55
.0625 4MVL0625R.010AX 20977 1/16 1/4 2-1/2 5/16 0.01 ALtima® Xtreme Straight 77.00 57
.0781 4MVL0781AX 20978 5/64 1/4 2-1/2 3/8 ALtima® Xtreme Straight 0.00 55
.0781 4MVL0781R.010AX 20979 5/64 1/4 2-1/2 3/8 0.01 ALtima® Xtreme Straight 34.00 57
.0938 4MVL0938AX 20980 3/32 1/4 2-1/2 1/2 ALtima® Xtreme Straight 32.00 55
.0938 4MVL0938R.010AX 20981 3/32 1/4 2-1/2 1/2 0.01 ALtima® Xtreme Straight 49.00 57
.1250 4MVL1250AX 20982 1/8 1/4 2-1/2 5/8 ALtima® Xtreme Straight 42.00 55
.1250 4MVL1250R.010AX 20983 1/8 1/4 2-1/2 5/8 0.01 ALtima® Xtreme Straight 21.00 57
