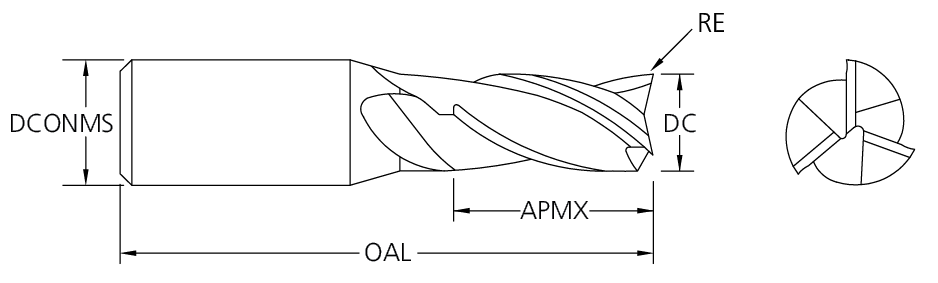

product photo product drawing

End Mills / 3MVR

Solid Carbide TuffCut® 3MVR 3 Flute Micro End Mill
For high performance micro milling on any ferrous material, especially material used in medical and aerospace manufacturing.
  • 3 Flute
  • Solid carbide
  • Standard length
  • Coated with ALtima® Xtreme, AH=ALtima® Xtreme coated
  • 31°-35° Variable helix
  • Manufactured from premium grade ultrafine carbide material for extended tool life
  • Center cutting
  • Square end or corner radius styles and neck relief options
  • Common Shanks

Materials

  • Stainless steel
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) RE Coating Shank Type Available List Price
.0156 3MVR0156AH 39001 1/64 1/8 1-1/2 3/64 ALtima® Xtreme Straight 35.00 69.47
.0156 3MVR0156R.003AH 39067 1/64 1/8 1-1/2 3/64 0.003 ALtima® Xtreme Straight 36.00 70.82
.0197 3MVRM0050AH 39005 0.50mm 4mm 50mm 1.5mm ALtima® Xtreme Straight 19.00 66.78
.0197 3MVRM0050R.10AH 39071 0.50mm 4mm 50mm 1.5mm 0.1mm ALtima® Xtreme Straight 49.00 67.8
.0312 3MVR0312AH 39007 1/32 1/8 1-1/2 3/32 ALtima® Xtreme Straight 33.00 47.49
.0312 3MVR0312R.005AH 39075 1/32 1/8 1-1/2 3/32 0.005 ALtima® Xtreme Straight 5.00 51.47
.0312 3MVR0312R.010AH 39079 1/32 1/8 1-1/2 3/32 0.01 ALtima® Xtreme Straight 33.00 55.68
.0394 3MVRM0100AH 39015 1mm 4mm 50mm 3mm ALtima® Xtreme Straight 0.00 56.18
.0394 3MVRM0100R.10AH 39083 1mm 4mm 50mm 3mm 0.1mm ALtima® Xtreme Straight 65.00 57.03
.0394 3MVRM0100R.20AH 39166 1mm 4mm 50mm 3mm 0.2mm ALtima® Xtreme Straight 27.00 57.03
.0468 3MVR0468AH 39019 3/64 1/8 1-1/2 9/64 ALtima® Xtreme Straight 68.00 50.13
.0468 3MVR0468R.005AH 39087 3/64 1/8 1-1/2 9/64 0.005 ALtima® Xtreme Straight 16.00 51.47
.0468 3MVR0468R.010AH 39091 3/64 1/8 1-1/2 9/64 0.01 ALtima® Xtreme Straight 73.00 55.68
.0591 3MVRM0150AH 39024 1.5mm 4mm 50mm 4.5mm ALtima® Xtreme Straight 279.00 52.82
.0591 3MVRM0150R.20AH 39095 1.5mm 4mm 50mm 4.5mm 0.2mm ALtima® Xtreme Straight 11.00 53.49
.0625 3MVR0625AH 39026 1/16 1/8 1-1/2 3/16 ALtima® Xtreme Straight 96.00 46.94
.0625 3MVR0625R.005AH 39099 1/16 1/8 1-1/2 3/16 0.005 ALtima® Xtreme Straight 31.00 47.93
.0625 3MVR0625R.010AH 39103 1/16 1/8 1-1/2 3/16 0.01 ALtima® Xtreme Straight 79.00 47.93
.0625 3MVR0625R.015AH 39107 1/16 1/8 1-1/2 3/16 0.015 ALtima® Xtreme Straight 16.00 47.93
.0781 3MVR0781AH 39034 5/64 1/8 1-1/2 15/64 ALtima® Xtreme Straight 178.00 46.94
.0781 3MVR0781R.005AH 39111 5/64 1/8 1-1/2 15/64 0.005 ALtima® Xtreme Straight 69.00 47.93
.0781 3MVR0781R.010AH 39115 5/64 1/8 1-1/2 15/64 0.01 ALtima® Xtreme Straight 99.00 47.93
.0781 3MVR0781R.015AH 39119 5/64 1/8 1-1/2 15/64 0.015 ALtima® Xtreme Straight 51.00 52.66
.0787 3MVRM0200AH 39039 2mm 4mm 50mm 6mm ALtima® Xtreme Straight 11.00 52.82
.0787 3MVRM0200R.20AH 39123 2mm 4mm 50mm 6mm 0.2mm ALtima® Xtreme Straight 11.00 53.49
.0938 3MVR0938AH 39043 3/32 1/8 1-1/2 9/32 ALtima® Xtreme Straight 167.00 46.94
.0938 3MVR0938R.005AH 39127 3/32 1/8 1-1/2 9/32 0.005 ALtima® Xtreme Straight 56.00 47.93
.0938 3MVR0938R.010AH 39131 3/32 1/8 1-1/2 9/32 0.01 ALtima® Xtreme Straight 8.00 47.93
.0938 3MVR0938R.015AH 39135 3/32 1/8 1-1/2 9/32 0.015 ALtima® Xtreme Straight 0.00 47.93
.0938 3MVR0938R.020AH 39139 3/32 1/8 1-1/2 9/32 0.02 ALtima® Xtreme Straight 6.00 47.93
.0984 3MVRM0250AH 39051 2.5mm 4mm 50mm 7.5mm ALtima® Xtreme Straight 60.00 52.82
.1094 3MVR1094AH 39053 7/64 1/8 1-1/2 21/64 ALtima® Xtreme Straight 33.00 46.94
.1181 3MVRM0300AH 39057 3mm 4mm 50mm 9mm ALtima® Xtreme Straight 144.00 52.82
.1181 3MVRM0300R.20AH 39143 3mm 4mm 50mm 9mm 0.2mm ALtima® Xtreme Straight 20.00 53.49
.1250 3MVR1250AH 39061 1/8 1/8 1-1/2 3/8 ALtima® Xtreme Straight 86.00 45.59
.1250 3MVR1250R.005AH 39147 1/8 1/8 1-1/2 3/8 0.005 ALtima® Xtreme Straight 40.00 47.93
.1250 3MVR1250R.010AH 39151 1/8 1/8 1-1/2 3/8 0.01 ALtima® Xtreme Straight 94.00 46.59
.1250 3MVR1250R.015AH 39155 1/8 1/8 1-1/2 3/8 0.015 ALtima® Xtreme Straight 37.00 46.59
.1250 3MVR1250R.020AH 39159 1/8 1/8 1-1/2 3/8 0.02 ALtima® Xtreme Straight 143.00 56.18
