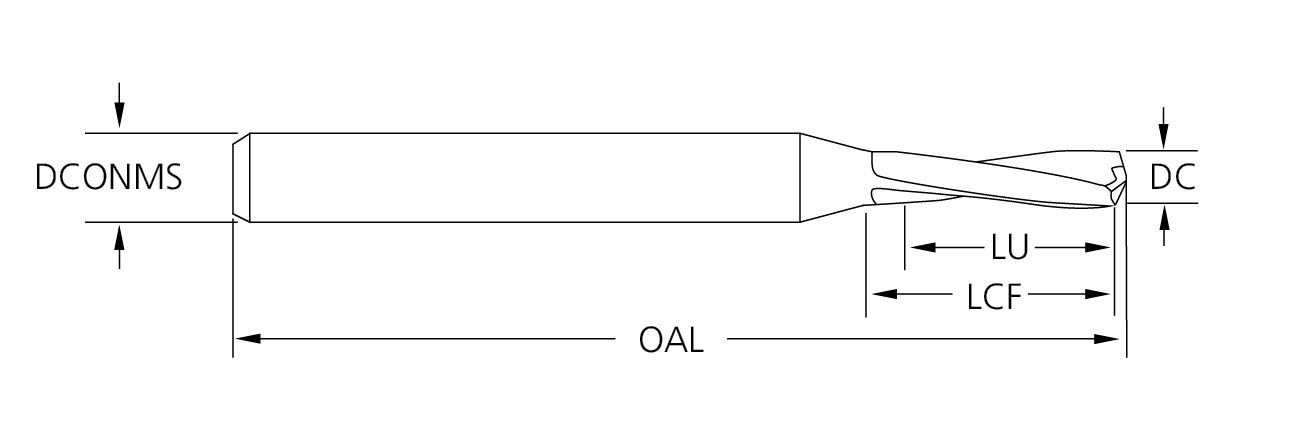

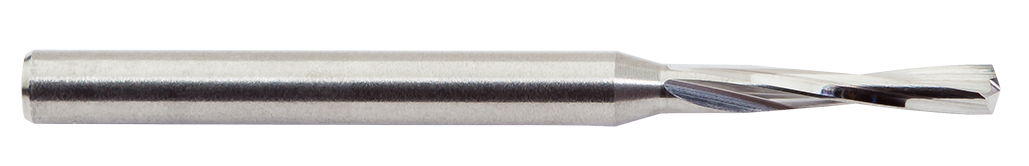

product photo product drawing

Drills / 305

Solid Carbide Twister® Micro-Tuff® Drill
The Tuffness of the 205 Series Hi-Tuff® Drill On a Micro Drill Platform.
  • 2 Flute
  • Solid carbide
  • Single margin
  • 3-10X Drilling lengths
  • 135° Point
  • 12° Helix angle
  • Available uncoated or with ALtima® Micro coating, AM=ALtima® Micro coated
  • Web thinned point sizes above 1/32 (.8mm)
  • Color coded depth setting rings available on 1/8" shank tools upon request.
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0039 305M0010 34000 0.10mm .0039 3mm 38mm 1.7mm Uncoated Straight 38.00 88.37
.0039 30500390 33999 #102 .0039 1/8 1-1/2 .065 Uncoated Straight 18.00 88.37
.0043 30500430 34001 #101 .0043 1/8 1-1/2 .065 Uncoated Straight 63.00 81.32
.0043 305M0011 33900 0.11mm .0043 3mm 38mm 1.7mm Uncoated Straight 51.00 88.37
.0047 30500470 34002 #100 .0047 1/8 1-1/2 .065 Uncoated Straight 64.00 74.22
.0047 305M0012 33901 0.12mm .0047 3mm 38mm 1.7mm Uncoated Straight 25.00 88.37
.0051 30500510 34003 #99 .0051 1/8 1-1/2 .065 Uncoated Straight 36.00 67.23
.0051 305M0013 33902 0.13mm .0051 3mm 38mm 1.7mm Uncoated Straight 32.00 88.37
.0055 30500550 34004 #98 .0055 1/8 1-1/2 .065 Uncoated Straight 70.00 60.11
.0055 305M0014 33903 0.14mm .0055 3mm 38mm 1.7mm Uncoated Straight 36.00 88.37
.0059 305M0015 34005 0.15mm .0059 3mm 38mm 2.5mm Uncoated Straight 66.00 50.2
.0060 30500600 34006 .0060 .0060 1/8 1-1/2 .100 Uncoated Straight 61.00 50.2
.0063 30500630 34007 #96 .0063 1/8 1-1/2 .100 Uncoated Straight 138.00 50.2
.0063 305M0016 33904 0.16mm .0063 3mm 38mm 2.5mm Uncoated Straight 107.00 50.2
.0067 30500670 34008 #95 .0067 1/8 1-1/2 .100 Uncoated Straight 47.00 50.2
.0067 305M0017 33905 0.17mm .0067 3mm 38mm 2.5mm Uncoated Straight 113.00 50.2
.0070 30500700 34009 .0070 .0070 1/8 1-1/2 .100 Uncoated Straight 144.00 38.02
.0071 30500710 34010 #94 .0071 1/8 1-1/2 .100 Uncoated Straight 4.00 38.02
.0071 305M0018 33906 0.18mm .0071 3mm 38mm 2.5mm Uncoated Straight 35.00 50.2
.0075 30500750 34011 #93 .0075 1/8 1-1/2 .100 Uncoated Straight 29.00 38.02
.0075 305M0019 33907 0.19mm .0075 3mm 38mm 2.5mm Uncoated Straight 70.00 50.2
.0078 305M0020 34012 0.20mm .0078 3mm 38mm 2.5mm Uncoated Straight 12.00 38.02
.0079 30500790 34013 #92 .0079 1/8 1-1/2 .125 Uncoated Straight 23.00 38.02
.0080 30500800 34014 .0080 .0080 1/8 1-1/2 .125 Uncoated Straight 70.00 38.02
.0080 30500800C 19862 .0080 .0080 1/8 1-1/2 .125 Uncoated Straight 0.00 38.7
.0083 30500830 34015 #91 .0083 1/8 1-1/2 .125 Uncoated Straight 226.00 38.02
.0083 305M0021 33908 0.21mm .0083 3mm 38mm 2.5mm Uncoated Straight 26.00 38.02
.0087 30500870 34016 #90 .0087 1/8 1-1/2 .125 Uncoated Straight 23.00 38.02
.0087 305M0022 33909 0.22mm .0087 3mm 38mm 2.5mm Uncoated Straight 21.00 38.02
.0090 30500900 34017 .0090 .0090 1/8 1-1/2 .125 Uncoated Straight 24.00 31.7
.0091 30500910 34018 #89 .0091 1/8 1-1/2 .125 Uncoated Straight 55.00 31.7
.0091 305M0023 33910 0.23mm .0091 3mm 38mm 2.5mm Uncoated Straight 103.00 38.02
.0094 305M0024 33911 0.24mm .0094 3mm 38mm 2.5mm Uncoated Straight 43.00 38.02
.0095 30500950 34019 #88 .0095 1/8 1-1/2 .125 Uncoated Straight 189.00 31.7
.0098 305M0025 34020 0.25mm .0098 3mm 38mm 3.2mm Uncoated Straight 71.00 31.7
.0100 30501000 34021 #87 .0100 1/8 1-1/2 .150 Uncoated Straight 49.00 23.74
.0100 30501000C 19864 #87 .0100 1/8 1-1/2 .150 Uncoated Straight 0.00 24.42
.0102 305M0026 33912 0.26mm .0102 3mm 38mm 3.2mm Uncoated Straight 149.00 31.7
.0105 30501050 34022 #86 .0105 1/8 1-1/2 .150 Uncoated Straight 14.00 23.74
.0106 305M0027 33913 0.27mm .0106 3mm 38mm 3.2mm Uncoated Straight 114.00 31.7
.0110 30501100 34023 #85 .0110 1/8 1-1/2 .150 Uncoated Straight 110.00 23.74
.0110 305M0028 33914 0.28mm .0110 3mm 38mm 3.2mm Uncoated Straight 19.00 31.7
.0110 30501100C 16646 #85 .0110 1/8 1-1/2 .150 Uncoated Straight 0.00 24.46
.0114 305M0029 33915 0.29mm .0114 3mm 38mm 3.2mm Uncoated Straight 15.00 31.7
.0115 30501150 34024 #84 .0115 1/8 1-1/2 .150 Uncoated Straight 108.00 21.36
.0118 305M0030 34025 0.30mm .0118 3mm 38mm 4.8mm Uncoated Straight 26.00 18.78
.0118 305M0030AM 34206 0.30mm .0118 3mm 38mm 4.8mm ALtima® Micro Straight 123.00 24.35
.0120 30501200 34026 #83 .0120 1/8 1-1/2 .190 Uncoated Straight 10.00 18.78
.0120 30501200AM 34145 #83 .0120 1/8 1-1/2 .190 ALtima® Micro Straight 70.00 24.35
.0122 305M0031 33916 0.31mm .0122 3mm 38mm 4.8mm Uncoated Straight 46.00 18.78
.0122 305M0031AM 20036 0.31mm .0122 3mm 38mm 4.8mm ALtima® Micro Straight 11.00 30.18
.0125 30501250 34027 #82 .0125 1/8 1-1/2 .190 Uncoated Straight 18.00 18.06
.0125 30501250AM 34146 #82 .0125 1/8 1-1/2 .190 ALtima® Micro Straight 111.00 23.64
.0125 30501250AMC 15816 #82 .0125 1/8 1-1/2 .190 ALtima® Micro Straight 0.00 24.36
.0125 30501250C 15815 #82 .0125 1/8 1-1/2 .190 Uncoated Straight 0.00 18.78
.0126 305M0032 33917 0.32mm .0126 3mm 38mm 4.8mm Uncoated Straight 53.00 18.78
.0126 305M0032AM 19794 0.32mm .0126 3mm 38mm 4.8mm ALtima® Micro Straight 0.00 31.99
.0130 30501300 34028 #81 .0130 1/8 1-1/2 .190 Uncoated Straight 63.00 18.06
.0130 30501300AM 34147 #81 .0130 1/8 1-1/2 .190 ALtima® Micro Straight 42.00 23.64
.0130 305M0033 33918 0.33mm .0130 3mm 38mm 4.8mm Uncoated Straight 130.00 18.78
.0130 305M0033AM 19663 0.33mm .0130 3mm 38mm 4.8mm ALtima® Micro Straight 2.00 31.99
.0134 305M0034 33919 0.34mm .0134 3mm 38mm 4.8mm Uncoated Straight 61.00 18.78
.0135 30501350 34029 #80 .0135 1/8 1-1/2 .190 Uncoated Straight 102.00 16.3
.0135 30501350AM 34148 #80 .0135 1/8 1-1/2 .190 ALtima® Micro Straight 71.00 21.88
.0135 30501350C 78014 #80 .0135 1/8 1-1/2 .190 Uncoated Straight 0.00 17.01
.0135 30501350CE 78015 #80 .0135 1/8 1-1/2 .190 CERAedge® Straight 0.00 27.5
.0138 305M0035 34030 0.35mm .0138 3mm 38mm 4.8mm Uncoated Straight 25.00 16.3
.0138 305M0035AM 34207 0.35mm .0138 3mm 38mm 4.8mm ALtima® Micro Straight 131.00 21.88
.0142 305M0036 33920 0.36mm .0142 3mm 38mm 4.8mm Uncoated Straight 40.00 16.3
.0145 30501450 34031 #79 .0145 1/8 1-1/2 .190 Uncoated Straight 65.00 16.3
.0145 30501450AM 34149 #79 .0145 1/8 1-1/2 .190 ALtima® Micro Straight 167.00 21.88
.0145 30501450C 16648 #79 .0145 1/8 1-1/2 .190 Uncoated Straight 0.00 17.01
.0146 305M0037 33921 0.37mm .0146 3mm 38mm 4.8mm Uncoated Straight 17.00 16.3
.0150 305M0038 33922 0.38mm .0150 3mm 38mm 4.8mm Uncoated Straight 1.00 16.3
.0150 305M0038AM 19347 0.38mm .0150 3mm 38mm 4.8mm ALtima® Micro Straight 5.00 29.52
.0154 305M0039 33923 0.39mm .0154 3mm 38mm 4.8mm Uncoated Straight 116.00 16.3
.0154 305M0039AM 19348 0.39mm .0154 3mm 38mm 4.8mm ALtima® Micro Straight 5.00 29.52
.0156 30501560 34032 1/64 .0156 1/8 1-1/2 .190 Uncoated Straight 115.00 16.3
.0156 30501560AM 34150 1/64 .0156 1/8 1-1/2 .190 ALtima® Micro Straight 142.00 21.88
.0156 30501560AMC 15818 1/64 .0156 1/8 1-1/2 .190 ALtima® Micro Straight 0.00 22.61
.0156 30501560C 15817 1/64 .0156 1/8 1-1/2 .190 Uncoated Straight 0.00 17.01
.0157 305M0040 34033 0.40mm .0157 3mm 38mm 4.8mm Uncoated Straight 37.00 16.3
.0157 305M0040AM 34208 0.40mm .0157 3mm 38mm 4.8mm ALtima® Micro Straight 59.00 21.88
.0160 30501600 34034 #78 .0160 1/8 1-1/2 .190 Uncoated Straight 138.00 16.3
.0160 30501600AM 34151 .0160 .0160 1/8 1-1/2 .190 ALtima® Micro Straight 24.00 21.88
.0160 30501600AMC 17200 .0160 .0160 1/8 1-1/2 .190 ALtima® Micro Straight 0.00 22.6
.0160 30501600C 17201 .0160 .0160 1/8 1-1/2 .190 Uncoated Straight 31.00 17.01
.0161 305M0041 33924 0.41mm .0161 3mm 38mm 6.35mm Uncoated Straight 110.00 16.3
.0165 305M0042 33925 0.42mm .0165 3mm 38mm 6.35mm Uncoated Straight 14.00 16.3
.0165 305M0042AM 15390 0.42mm .0165 3mm 38mm 6.35mm ALtima® Micro Straight 20.00 22.87
.0169 305M0043 33926 0.43mm .0169 3mm 38mm 6.35mm Uncoated Straight 45.00 16.3
.0169 305M0043AM 20831 0.43mm .0169 3mm 38mm 6.35mm ALtima® Micro Straight 8.00 29.51
.0173 305M0044 33927 0.44mm .0173 3mm 38mm 6.35mm Uncoated Straight 91.00 16.3
.0173 305M0044AM 15995 0.44mm .0173 3mm 38mm 6.35mm ALtima® Micro Straight 0.00 22.87
.0177 305M0045 34035 0.45mm .0177 3mm 38mm 6.35mm Uncoated Straight 47.00 16.3
.0177 305M0045AM 34209 0.45mm .0177 3mm 38mm 6.35mm ALtima® Micro Straight 14.00 21.88
.0180 30501800 34036 #77 .0180 1/8 1-1/2 .250 Uncoated Straight 107.00 16.3
.0180 30501800AM 34152 #77 .0180 1/8 1-1/2 .250 ALtima® Micro Straight 110.00 21.88
.0180 30501800C 16640 #77 .0180 1/8 1-1/2 .250 Uncoated Straight 50.00 17.01
.0181 305M0046 33928 0.46mm .0181 3mm 38mm 6.35mm Uncoated Straight 149.00 16.3
.0185 305M0047 33929 0.47mm .0185 3mm 38mm 6.35mm Uncoated Straight 39.00 16.3
.0185 305M0047AM 15529 0.47mm .0185 3mm 38mm 6.35mm ALtima® Micro Straight 16.00 22.87
.0189 305M0048 33930 0.48mm .0189 3mm 38mm 6.35mm Uncoated Straight 68.00 16.3
.0189 305M0048AM 18442 0.48mm .0189 3mm 38mm 6.35mm ALtima® Micro Straight 14.00 29.52
.0193 305M0049 33931 0.49mm .0193 3mm 38mm 6.35mm Uncoated Straight 157.00 16.3
.0193 305M0049AM 18444 0.49mm .0193 3mm 38mm 6.35mm ALtima® Micro Straight 0.00 29.52
.0197 305M0050 34037 0.50mm .0197 3mm 38mm 6.35mm Uncoated Straight 88.00 15.01
.0197 305M0050AM 34210 0.50mm .0197 3mm 38mm 6.35mm ALtima® Micro Straight 375.00 20.59
.0197 305M0050CE 78029 0.50mm .0197 3mm 38mm 6.35mm CERAedge® Straight 0.00 26.2
.0200 30502000 34038 #76 .0200 1/8 1-1/2 .250 Uncoated Straight 294.00 15.01
.0200 30502000AM 34153 #76 .0200 1/8 1-1/2 .250 ALtima® Micro Straight 28.00 20.59
.0200 30502000TICN 78017 #76 .0200 1/8 1-1/2 .250 TiCN Straight 0.00 21.58
.0200 30502000C 16644 #76 .0200 1/8 1-1/2 .250 Uncoated Straight 39.00 15.73
.0201 305M0051 33932 0.51mm .0201 3mm 38mm 6.35mm Uncoated Straight 59.00 15.01
.0201 305M0051AM 19593 0.51mm .0201 3mm 38mm 6.35mm ALtima® Micro Straight 370.00 28.23
.0205 305M0052 33933 0.52mm .0205 3mm 38mm 6.35mm Uncoated Straight 0.00 15.01
.0205 305M0052AM 17948 0.52mm .0205 3mm 38mm 6.35mm ALtima® Micro Straight 0.00 21.58
.0209 305M0053 33934 0.53mm .0209 3mm 38mm 6.35mm Uncoated Straight 17.00 15.01
.0209 305M0053AM 16049 0.53mm .0209 3mm 38mm 6.35mm ALtima® Micro Straight 5.00 21.58
.0210 30502100 34039 #75 .0210 1/8 1-1/2 .250 Uncoated Straight 74.00 15.01
.0210 30502100AM 34154 #75 .0210 1/8 1-1/2 .250 ALtima® Micro Straight 83.00 20.59
.0210 30502100CE 78018 #75 .0210 1/8 1-1/2 .250 CERAedge® Straight 140.00 26.2
.0213 305M0054 33935 0.54mm .0213 3mm 38mm 6.35mm Uncoated Straight 88.00 15.01
.0217 305M0055 34040 0.55mm .0217 3mm 38mm 6.35mm Uncoated Straight 79.00 15.01
.0217 305M0055AM 34211 0.55mm .0217 3mm 38mm 6.35mm ALtima® Micro Straight 181.00 20.59
.0217 305M0055CE 78030 0.55mm .0217 3mm 38mm 6.35mm CERAedge® Straight 0.00 26.2
.0220 305M0056 33936 0.56mm .0220 3mm 38mm 6.35mm Uncoated Straight 102.00 15.01
.0220 305M0056AM 16046 0.56mm .0220 3mm 38mm 6.35mm ALtima® Micro Straight 21.00 21.58
.0224 305M0057 33937 0.57mm .0224 3mm 38mm 6.35mm Uncoated Straight 0.00 15.01
.0224 305M0057AM 16047 0.57mm .0224 3mm 38mm 6.35mm ALtima® Micro Straight 63.00 21.58
.0225 30502250 34041 #74 .0225 1/8 1-1/2 .250 Uncoated Straight 165.00 15.01
.0225 30502250AM 34155 #74 .0225 1/8 1-1/2 .250 ALtima® Micro Straight 236.00 20.59
.0225 30502250C 78019 #74 .0225 1/8 1-1/2 .250 Uncoated Straight 20.00 15.73
.0228 305M0058 33938 0.58mm .0228 3mm 38mm 6.35mm Uncoated Straight 91.00 15.01
.0228 305M0058AM 16048 0.58mm .0228 3mm 38mm 6.35mm ALtima® Micro Straight 16.00 21.58
.0232 305M0059 33939 0.59mm .0232 3mm 38mm 6.35mm Uncoated Straight 65.00 15.01
.0232 305M0059AM 20035 0.59mm .0232 3mm 38mm 6.35mm ALtima® Micro Straight 1.00 26.62
.0236 305M0060 34042 0.60mm .0236 3mm 38mm 6.35mm Uncoated Straight 24.00 15.01
.0236 305M0060AM 34212 0.60mm .0236 3mm 38mm 6.35mm ALtima® Micro Straight 20.00 20.59
.0240 30502400 34043 #73 .0240 1/8 1-1/2 .250 Uncoated Straight 131.00 15.01
.0240 30502400AM 34156 #73 .0240 1/8 1-1/2 .250 ALtima® Micro Straight 14.00 20.59
.0240 305M0061 33940 0.61mm .0240 3mm 38mm 6.35mm Uncoated Straight 61.00 15.01
.0240 305M0061AM 78032 0.61mm .0240 3mm 38mm 6.35mm ALtima® Micro Straight 16.00 21.58
.0240 30502400C 16650 #73 .0240 1/8 1-1/2 .250 Uncoated Straight 31.00 15.73
.0244 305M0062 33941 0.62mm .0244 3mm 38mm 6.35mm Uncoated Straight 131.00 15.01
.0244 305M0062AM 19343 0.62mm .0244 3mm 38mm 6.35mm ALtima® Micro Straight 0.00 28.23
.0248 305M0063 33942 0.63mm .0248 3mm 38mm 6.35mm Uncoated Straight 15.00 15.01
.0250 30502500 34044 #72 .0250 1/8 1-1/2 .250 Uncoated Straight 174.00 15.01
.0250 30502500AM 34157 #72 .0250 1/8 1-1/2 .250 ALtima® Micro Straight 202.00 20.59
.0250 30502500C 12778 #72 .0250 1/8 1-1/2 .250 Uncoated Straight 0.00 15.73
.0250 30502500AMC 12793 #72 .0250 1/8 1-1/2 .250 ALtima® Micro Straight 0.00 21.27
.0252 305M0064 33943 0.64mm .0252 3mm 38mm 6.35mm Uncoated Straight 56.00 15.01
.0252 305M0064AM 16050 0.64mm .0252 3mm 38mm 6.35mm ALtima® Micro Straight 23.00 21.58
.0256 305M0065 34045 0.65mm .0256 3mm 38mm 6.35mm Uncoated Straight 48.00 15.01
.0256 305M0065AM 34213 0.65mm .0256 3mm 38mm 6.35mm ALtima® Micro Straight 99.00 20.59
.0260 30502600 34046 #71 .0260 1/8 1-1/2 .250 Uncoated Straight 76.00 15.01
.0260 30502600AM 34158 #71 .0260 1/8 1-1/2 .250 ALtima® Micro Straight 124.00 20.59
.0260 305M0066 33944 0.66mm .0260 3mm 38mm 8.13mm Uncoated Straight 63.00 15.01
.0260 305M0066AM 19963 0.66mm .0260 3mm 38mm 8.13mm ALtima® Micro Straight 10.00 21.58
.0264 305M0067 33945 0.67mm .0264 3mm 38mm 8.13mm Uncoated Straight 35.00 15.01
.0264 305M0067AM 16051 0.67mm .0264 3mm 38mm 8.13mm ALtima® Micro Straight 11.00 21.58
.0268 305M0068 33946 0.68mm .0268 3mm 38mm 8.13mm Uncoated Straight 933.00 15.01
.0268 305M0068AM 18347 0.68mm .0268 3mm 38mm 8.13mm ALtima® Micro Straight 10.00 28.23
.0272 305M0069 33947 0.69mm .0272 3mm 38mm 8.13mm Uncoated Straight 140.00 15.01
.0272 305M0069AM 16052 0.69mm .0272 3mm 38mm 8.13mm ALtima® Micro Straight 0.00 21.58
.0276 305M0070 34047 0.70mm .0276 3mm 38mm 8.13mm Uncoated Straight 46.00 15.01
.0276 305M0070AM 34214 0.70mm .0276 3mm 38mm 8.13mm ALtima® Micro Straight 74.00 20.59
.0280 30502800 34048 #70 .0280 1/8 1-1/2 .320 Uncoated Straight 88.00 15.01
.0280 30502800AM 34159 #70 .0280 1/8 1-1/2 .320 ALtima® Micro Straight 281.00 20.59
.0280 305M0071 33948 0.71mm .0280 3mm 38mm 8.13mm Uncoated Straight 41.00 15.01
.0280 305M0071AM 16053 0.71mm .0280 3mm 38mm 8.13mm ALtima® Micro Straight 9.00 21.58
.0280 30502800C 18463 #70 .0280 1/8 1-1/2 .320 Uncoated Straight 0.00 15.69
.0280 30502800AMC 19724 #70 .0280 1/8 1-1/2 .320 ALtima® Micro Straight 0.00 21.26
.0283 305M0072 33949 0.72mm .0283 3mm 38mm 8.13mm Uncoated Straight 204.00 15.01
.0283 305M0072AM 16054 0.72mm .0283 3mm 38mm 8.13mm ALtima® Micro Straight 2.00 21.58
.0287 305M0073 33950 0.73mm .0287 3mm 38mm 8.13mm Uncoated Straight 83.00 15.01
.0287 305M0073AM 16055 0.73mm .0287 3mm 38mm 8.13mm ALtima® Micro Straight 14.00 21.58
.0291 305M0074 33951 0.74mm .0291 3mm 38mm 8.13mm Uncoated Straight 56.00 15.01
.0291 305M0074AM 16056 0.74mm .0291 3mm 38mm 8.13mm ALtima® Micro Straight 3.00 21.58
.0292 30502920 34049 #69 .0292 1/8 1-1/2 .320 Uncoated Straight 96.00 15.01
.0292 30502920AM 34160 #69 .0292 1/8 1-1/2 .320 ALtima® Micro Straight 84.00 20.59
.0292 30502920AMC 18115 #69 .0292 1/8 1-1/2 .320 ALtima® Micro Straight 0.00 21.27
.0292 30502920C 18641 #69 .0292 1/8 1-1/2 .320 Uncoated Straight 0.00 15.69
.0295 305M0075 34050 0.75mm .0295 3mm 38mm 8.13mm Uncoated Straight 58.00 15.01
.0295 305M0075AM 34215 0.75mm .0295 3mm 38mm 8.13mm ALtima® Micro Straight 174.00 20.59
.0299 305M0076 33952 0.76mm .0299 3mm 38mm 10.16mm Uncoated Straight 375.00 15.01
.0299 305M0076AM 19304 0.76mm .0299 3mm 38mm 10.16mm ALtima® Micro Straight 0.00 21.59
.0303 305M0077 33953 0.77mm .0303 3mm 38mm 10.16mm Uncoated Straight 29.00 15.01
.0307 305M0078 33954 0.78mm .0307 3mm 38mm 10.16mm Uncoated Straight 77.00 15.01
.0307 305M0078AM 17097 0.78mm .0307 3mm 38mm 10.16mm ALtima® Micro Straight 5.00 21.59
.0310 30503100 34051 #68 .0310 1/8 1-1/2 .400 Uncoated Straight 104.00 15.01
.0310 30503100AM 34161 #68 .0310 1/8 1-1/2 .400 ALtima® Micro Straight 239.00 20.59
.0310 30503100C 18464 #68 .0310 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0311 305M0079 33955 0.79mm .0311 3mm 38mm 10.16mm Uncoated Straight 31.00 15.01
.0311 305M0079AM 16057 0.79mm .0311 3mm 38mm 10.16mm ALtima® Micro Straight 1.00 21.58
.0312 30503120 34052 1/32 .0312 1/8 1-1/2 .400 Uncoated Straight 117.00 15.01
.0312 30503120AM 34162 1/32 .0312 1/8 1-1/2 .400 ALtima® Micro Straight 227.00 20.59
.0315 305M0080 34053 0.8mm .0315 3mm 38mm 10.16mm Uncoated Straight 76.00 15.01
.0315 305M0080AM 34216 0.8mm .0315 3mm 38mm 10.16mm ALtima® Micro Straight 127.00 20.59
.0319 305M0081 33956 0.81mm .0319 3mm 38mm 10.16mm Uncoated Straight 142.00 15.01
.0319 305M0081AM 17096 0.81mm .0319 3mm 38mm 10.16mm ALtima® Micro Straight 0.00 21.59
.0320 30503200 34054 #67 .0320 1/8 1-1/2 .400 Uncoated Straight 26.00 15.01
.0320 30503200AM 34163 #67 .0320 1/8 1-1/2 .400 ALtima® Micro Straight 78.00 20.59
.0323 305M0082 33957 0.82mm .0323 3mm 38mm 10.16mm Uncoated Straight 28.00 15.01
.0323 305M0082AM 16020 0.82mm .0323 3mm 38mm 10.16mm ALtima® Micro Straight 9.00 21.58
.0327 305M0083 33958 0.83mm .0327 3mm 38mm 10.16mm Uncoated Straight 27.00 15.01
.0327 305M0083AM 19506 .83mm .0327 3mm 38mm 10.16mm ALtima® Micro Straight 10.00 28.23
.0330 30503300 34055 #66 .0330 1/8 1-1/2 .400 Uncoated Straight 188.00 15.01
.0330 30503300AM 34164 #66 .0330 1/8 1-1/2 .400 ALtima® Micro Straight 181.00 20.59
.0331 305M0084 33959 0.84mm .0331 3mm 38mm 10.16mm Uncoated Straight 51.00 15.01
.0331 305M0084AM 19697 0.84mm .0331 3mm 38mm 10.16mm ALtima® Micro Straight 4.00 28.22
.0335 305M0085 34056 0.85mm .0335 3mm 38mm 10.16mm Uncoated Straight 20.00 15.01
.0335 305M0085AM 34217 0.85mm .0335 3mm 38mm 10.16mm ALtima® Micro Straight 120.00 20.59
.0339 305M0086 33960 0.86mm .0339 3mm 38mm 10.16mm Uncoated Straight 158.00 15.01
.0339 305M0086AM 19368 0.86mm .0339 3mm 38mm 10.16mm ALtima® Micro Straight 14.00 28.23
.0343 305M0087 33961 0.87mm .0343 3mm 38mm 10.16mm Uncoated Straight 64.00 15.01
.0343 305M0087AM 19775 0.87mm .0343 3mm 38mm 10.16mm ALtima® Micro Straight 18.00 28.22
.0346 305M0088 33962 0.88mm .0346 3mm 38mm 10.16mm Uncoated Straight 49.00 15.01
.0346 305M0088AM 16058 0.88mm .0346 3mm 38mm 10.16mm ALtima® Micro Straight 14.00 21.58
.0350 30503500 34057 #65 .0350 1/8 1-1/2 .400 Uncoated Straight 18.00 15.01
.0350 30503500AM 34165 #65 .0350 1/8 1-1/2 .400 ALtima® Micro Straight 45.00 20.59
.0350 305M0089 33963 0.89mm .0350 3mm 38mm 10.16mm Uncoated Straight 43.00 15.01
.0350 305M0089AM 16059 0.89mm .0350 3mm 38mm 10.16mm ALtima® Micro Straight 0.00 21.58
.0350 30503500C 18124 #65 .0350 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0354 305M0090 34058 0.9mm .0354 3mm 38mm 10.16mm Uncoated Straight 98.00 15.01
.0354 305M0090AM 34218 0.9mm .0354 3mm 38mm 10.16mm ALtima® Micro Straight 220.00 20.59
.0358 305M0091 33964 0.91mm .0358 3mm 38mm 10.16mm Uncoated Straight 72.00 15.01
.0358 305M0091AM 16060 0.91mm .0358 3mm 38mm 10.16mm ALtima® Micro Straight 4.00 21.58
.0360 30503600 34059 #64 .0360 1/8 1-1/2 .400 Uncoated Straight 50.00 15.01
.0360 30503600AM 34166 #64 .0360 1/8 1-1/2 .400 ALtima® Micro Straight 85.00 20.59
.0362 305M0092 33965 0.92mm .0362 3mm 38mm 10.16mm Uncoated Straight 197.00 15.01
.0362 305M0092AM 19364 .92mm .0362 3mm 38mm 10.16mm ALtima® Micro Straight 9.00 28.23
.0366 305M0093 33966 0.93mm .0366 3mm 38mm 10.16mm Uncoated Straight 63.00 15.01
.0366 305M0093AM 78033 0.93mm .0366 3mm 38mm 10.16mm ALtima® Micro Straight 14.00 21.58
.0370 30503700 34060 #63 .0370 1/8 1-1/2 .400 Uncoated Straight 57.00 15.01
.0370 30503700AM 34167 #63 .0370 1/8 1-1/2 .400 ALtima® Micro Straight 102.00 20.59
.0370 305M0094 33967 0.94mm .0370 3mm 38mm 10.16mm Uncoated Straight 67.00 15.01
.0370 305M0094AM 16061 0.94mm .0370 3mm 38mm 10.16mm ALtima® Micro Straight 2.00 21.58
.0374 305M0095 34061 0.95mm .0374 3mm 38mm 10.16mm Uncoated Straight 42.00 15.01
.0374 305M0095AM 34219 0.95mm .0374 3mm 38mm 10.16mm ALtima® Micro Straight 106.00 20.59
.0378 305M0096 33968 0.96mm .0378 3mm 38mm 10.16mm Uncoated Straight 45.00 15.01
.0380 30503800 34062 #62 .0380 1/8 1-1/2 .400 Uncoated Straight 114.00 15.01
.0380 30503800AM 34168 #62 .0380 1/8 1-1/2 .400 ALtima® Micro Straight 104.00 20.59
.0382 305M0097 33969 0.97mm .0382 3mm 38mm 10.16mm Uncoated Straight 19.00 15.01
.0382 305M0097AM 20125 0.97mm .0382 3mm 38mm 10.16mm ALtima® Micro Straight 1.00 28.22
.0386 305M0098 33970 0.98mm .0386 3mm 38mm 10.16mm Uncoated Straight 73.00 15.01
.0386 305M0098AM 18619 0.98mm .0386 3mm 38mm 10.16mm ALtima® Micro Straight 15.00 28.23
.0390 30503900 34063 #61 .0390 1/8 1-1/2 .400 Uncoated Straight 129.00 15.01
.0390 30503900AM 34169 #61 .0390 1/8 1-1/2 .400 ALtima® Micro Straight 202.00 20.59
.0390 305M0099 33971 0.99mm .0390 3mm 38mm 10.16mm Uncoated Straight 109.00 15.01
.0390 30503900AMC 78020 #61 .0390 1/8 1-1/2 .400 ALtima® Micro Straight 0.00 21.27
.0390 30503900C 18466 #61 .0390 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0394 305M0100 34064 1mm .0394 3mm 38mm 10.16mm Uncoated Straight 31.00 15.01
.0394 305M0100AM 34220 1mm .0394 3mm 38mm 10.16mm ALtima® Micro Straight 509.00 20.59
.0400 30504000 34065 #60 .0400 1/8 1-1/2 .400 Uncoated Straight 54.00 15.01
.0400 30504000AM 34170 #60 .0400 1/8 1-1/2 .400 ALtima® Micro Straight 8.00 20.59
.0400 30504000T 78022 #60 .0400 1/8 1-1/2 .400 TiN Straight 0.00 21.58
.0410 30504100 34066 #59 .0410 1/8 1-1/2 .400 Uncoated Straight 21.00 15.01
.0410 30504100AM 34171 #59 .0410 1/8 1-1/2 .400 ALtima® Micro Straight 46.00 20.59
.0413 305M0105 34067 1.05mm .0413 3mm 38mm 10.16mm Uncoated Straight 35.00 15.01
.0413 305M0105AM 34221 1.05mm .0413 3mm 38mm 10.16mm ALtima® Micro Straight 353.00 20.59
.0420 30504200 34068 #58 .0420 1/8 1-1/2 .400 Uncoated Straight 104.00 15.01
.0420 30504200AM 34172 #58 .0420 1/8 1-1/2 .400 ALtima® Micro Straight 117.00 20.59
.0430 30504300 34069 #57 .0430 1/8 1-1/2 .400 Uncoated Straight 159.00 15.01
.0430 30504300AM 34173 #57 .0430 1/8 1-1/2 .400 ALtima® Micro Straight 77.00 20.59
.0430 30504300F 78023 #57 .0430 1/8 1-1/2 .400 Fordlube Straight 0.00 23.56
.0433 305M0110 34070 1.1mm .0433 3mm 38mm 10.16mm Uncoated Straight 135.00 15.01
.0433 305M0110AM 34222 1.1mm .0433 3mm 38mm 10.16mm ALtima® Micro Straight 183.00 20.59
.0452 305M0115 34071 1.15mm .0452 3mm 38mm 10.16mm Uncoated Straight 764.00 15.01
.0452 305M0115AM 34223 1.15mm .0452 3mm 38mm 10.16mm ALtima® Micro Straight 179.00 20.59
.0465 30504650 34072 #56 .0465 1/8 1-1/2 .400 Uncoated Straight 58.00 15.01
.0465 30504650AM 34174 #56 .0465 1/8 1-1/2 .400 ALtima® Micro Straight 64.00 20.59
.0465 30504650C 78024 #56 .0465 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0469 30504690 34073 3/64 .0469 1/8 1-1/2 .400 Uncoated Straight 0.00 15.01
.0469 30504690AM 34175 3/64 .0469 1/8 1-1/2 .400 ALtima® Micro Straight 212.00 20.59
.0469 30504690C 78025 3/64 .0469 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0469 30504690AMC 18116 3/64 .0469 1/8 1-1/2 .400 ALtima® Micro Straight 0.00 21.27
.0472 305M0120 34074 1.2mm .0472 3mm 38mm 10.16mm Uncoated Straight 159.00 15.01
.0472 305M0120AM 34224 1.2mm .0472 3mm 38mm 10.16mm ALtima® Micro Straight 811.00 20.59
.0472 305M0120CE 10873 1.2mm .0472 3mm 38mm 10.16mm CERAedge® Straight 0.00 26.2
.0492 305M0125 34075 1.25mm .0492 3mm 38mm 10.16mm Uncoated Straight 97.00 15.01
.0492 305M0125AM 34225 1.25mm .0492 3mm 38mm 10.16mm ALtima® Micro Straight 303.00 20.59
.0492 305M0125A 78034 1.25mm .0492 3mm 38mm 10.16mm ALtima® Straight 0.00 48.8
.0511 305M0130 34076 1.3mm .0511 3mm 38mm 10.16mm Uncoated Straight 91.00 15.01
.0511 305M0130AM 34226 1.3mm .0511 3mm 38mm 10.16mm ALtima® Micro Straight 0.00 20.59
.0520 30505200 34077 #55 .0520 1/8 1-1/2 .400 Uncoated Straight 54.00 15.01
.0520 30505200AM 34176 #55 .0520 1/8 1-1/2 .400 ALtima® Micro Straight 48.00 20.59
.0520 30505200C 19720 #55 .0520 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0520 30505200AMC 19722 #55 .0520 1/8 1-1/2 400 ALtima® Micro Straight 0.00 21.26
.0531 305M0135 34078 1.35mm .0531 3mm 38mm 10.16mm Uncoated Straight 57.00 15.01
.0531 305M0135AM 34227 1.35mm .0531 3mm 38mm 10.16mm ALtima® Micro Straight 206.00 20.59
.0550 30505500 34079 #54 .0550 1/8 1-1/2 .400 Uncoated Straight 73.00 15.01
.0550 30505500AM 34177 #54 .0550 1/8 1-1/2 .400 ALtima® Micro Straight 233.00 20.59
.0550 30505500C 18468 #54 .0550 1/8 1-1/2 .400 Uncoated Straight 0.00 15.69
.0551 305M0140 34080 1.4mm .0551 3mm 38mm 10.16mm Uncoated Straight 116.00 15.01
.0551 305M0140AM 34228 1.4mm .0551 3mm 38mm 10.16mm ALtima® Micro Straight 0.00 20.59
.0571 305M0145 34081 1.45mm .0571 3mm 38mm 10.16mm Uncoated Straight 66.00 15.01
.0571 305M0145AM 34229 1.45mm .0571 3mm 38mm 10.16mm ALtima® Micro Straight 135.00 20.59
.0590 305M0150 34082 1.5mm .0590 3mm 38mm 10.16mm Uncoated Straight 209.00 15.01
.0590 305M0150AM 34230 1.5mm .0590 3mm 38mm 10.16mm ALtima® Micro Straight 232.00 20.59
.0595 30505950 34083 #53 .0595 1/8 1-1/2 .400 Uncoated Straight 200.00 15.01
.0595 30505950AM 34178 #53 .0595 1/8 1-1/2 .400 ALtima® Micro Straight 123.00 20.59
.0610 305M0155 34084 1.55mm .0610 3mm 38mm 10.16mm Uncoated Straight 52.00 15.01
.0610 305M0155AM 34231 1.55mm .0610 3mm 38mm 10.16mm ALtima® Micro Straight 388.00 20.59
.0625 30506250 34085 1/16 .0625 1/8 1-1/2 .480 Uncoated Straight 107.00 15.01
.0625 30506250AM 34179 1/16 .0625 1/8 1-1/2 .480 ALtima® Micro Straight 214.00 20.59
.0625 30506250CE 78027 1/16 .0625 1/8 1-1/2 .480 CERAedge® Straight 0.00 26.2
.0625 30506250T 14877 1/16 .0625 1/8 1-1/2 .480 TiN Straight 0.00 21.58
.0625 30506250C 18469 1/16 .0625 1/8 1-1/2 .480 Uncoated Straight 0.00 15.69
.0630 305M0160 34086 1.6mm .0630 3mm 38mm 12.19mm Uncoated Straight 54.00 15.01
.0630 305M0160AM 34232 1.6mm .0630 3mm 38mm 12.19mm ALtima® Micro Straight 166.00 20.59
.0635 30506350 34087 #52 .0635 1/8 1-1/2 .480 Uncoated Straight 135.00 15.01
.0635 30506350AM 34180 #52 .0635 1/8 1-1/2 .480 ALtima® Micro Straight 191.00 20.59
.0635 30506350GP 20923 #52 .0635 1/8 1-1/2 .480 Gem Plus Straight 0.00 30.3
.0649 305M0165 34088 1.65mm .0649 3mm 38mm 12.19mm Uncoated Straight 79.00 15.01
.0649 305M0165AM 34233 1.65mm .0649 3mm 38mm 12.19mm ALtima® Micro Straight 283.00 20.59
.0669 305M0170 34089 1.7mm .0669 3mm 38mm 12.19mm Uncoated Straight 23.00 15.01
.0669 305M0170AM 34234 1.7mm .0669 3mm 38mm 12.19mm ALtima® Micro Straight 30.00 20.59
.0670 30506700 34090 #51 .0670 1/8 1-1/2 .480 Uncoated Straight 165.00 15.01
.0670 30506700AM 34181 #51 .0670 1/8 1-1/2 .480 ALtima® Micro Straight 421.00 20.59
.0689 305M0175 34091 1.75mm .0689 3mm 38mm 12.19mm Uncoated Straight 38.00 15.01
.0689 305M0175AM 34235 1.75mm .0689 3mm 38mm 12.19mm ALtima® Micro Straight 34.00 20.59
.0700 30507000 34092 #50 .0700 1/8 1-1/2 .480 Uncoated Straight 70.00 15.01
.0700 30507000AM 34182 #50 .0700 1/8 1-1/2 .480 ALtima® Micro Straight 244.00 20.59
.0700 30507000T 14792 #50 .0700 1/8 1-1/2 .480 TiN Straight 0.00 21.58
.0708 305M0180 34093 1.8mm .0708 3mm 38mm 12.19mm Uncoated Straight 49.00 15.01
.0708 305M0180AM 34236 1.8mm .0708 3mm 38mm 12.19mm ALtima® Micro Straight 322.00 20.59
.0728 305M0185 34094 1.85mm .0728 3mm 38mm 12.19mm Uncoated Straight 95.00 15.01
.0728 305M0185AM 34237 1.85mm .0728 3mm 38mm 12.19mm ALtima® Micro Straight 153.00 20.59
.0730 30507300 34095 #49 .0730 1/8 1-1/2 .480 Uncoated Straight 2464.00 15.01
.0730 30507300AM 34183 #49 .0730 1/8 1-1/2 .480 ALtima® Micro Straight 157.00 20.59
.0730 30507300C 18471 #49 .0730 1/8 1-1/2 .480 Uncoated Straight 0.00 15.69
.0748 305M0190 34096 1.9mm .0748 3mm 38mm 12.19mm Uncoated Straight 83.00 15.01
.0748 305M0190AM 34238 1.9mm .0748 3mm 38mm 12.19mm ALtima® Micro Straight 303.00 20.59
.0760 30507600 34097 #48 .0760 1/8 1-1/2 .480 Uncoated Straight 80.00 15.01
.0760 30507600AM 34184 #48 .0760 1/8 1-1/2 .480 ALtima® Micro Straight 46.00 20.59
.0767 305M0195 34098 1.95mm .0767 3mm 38mm 12.19mm Uncoated Straight 101.00 15.01
.0767 305M0195AM 34239 1.95mm .0767 3mm 38mm 12.19mm ALtima® Micro Straight 24.00 20.59
.0781 30507810 34099 5/64 .0781 1/8 1-1/2 .480 Uncoated Straight 88.00 15.01
.0781 30507810AM 34185 5/64 .0781 1/8 1-1/2 .480 ALtima® Micro Straight 251.00 20.59
.0785 30507850 34100 #47 .0785 1/8 1-1/2 .480 Uncoated Straight 22.00 15.01
.0785 30507850AM 34186 #47 .0785 1/8 1-1/2 .480 ALtima® Micro Straight 110.00 20.59
.0787 305M0200 34101 2mm .0787 3mm 38mm 12.19mm Uncoated Straight 99.00 15.01
.0787 305M0200AM 34240 2mm .0787 3mm 38mm 12.19mm ALtima® Micro Straight 199.00 20.59
.0787 305M0200CE 78035 2mm .0787 3mm 38mm 12.19mm CERAedge® Straight 0.00 26.2
.0807 305M0205 34102 2.05mm .0807 3mm 38mm 12.19mm Uncoated Straight 66.00 15.01
.0807 305M0205AM 34241 2.05mm .0807 3mm 38mm 12.19mm ALtima® Micro Straight 107.00 20.59
.0810 30508100 34103 #46 .0810 1/8 1-1/2 .480 Uncoated Straight 36.00 15.01
.0810 30508100AM 34187 #46 .0810 1/8 1-1/2 .480 ALtima® Micro Straight 208.00 20.59
.0820 30508200 34104 #45 .0820 1/8 1-1/2 .480 Uncoated Straight 46.00 15.01
.0820 30508200AM 34188 #45 .0820 1/8 1-1/2 .480 ALtima® Micro Straight 95.00 20.59
.0820 30508200C 18472 #45 .0820 1/8 1-1/2 .480 Uncoated Straight 0.00 15.69
.0827 305M0210 34105 2.1mm .0827 3mm 38mm 12.19mm Uncoated Straight 86.00 15.01
.0827 305M0210AM 34242 2.1mm .0827 3mm 38mm 12.19mm ALtima® Micro Straight 305.00 20.59
.0846 305M0215 34106 2.15mm .0846 3mm 38mm 12.19mm Uncoated Straight 62.00 15.01
.0846 305M0215AM 34243 2.15mm .0846 3mm 38mm 12.19mm ALtima® Micro Straight 159.00 20.59
.0860 30508600AM 34189 #44 .0860 1/8 1-1/2 .480 ALtima® Micro Straight 205.00 20.59
.0860 30508600 34107 #44 .0860 1/8 1-1/2 .480 Uncoated Straight 49.00 15.01
.0866 305M0220 34108 2.2mm .0866 3mm 38mm 12.19mm Uncoated Straight 36.00 15.01
.0866 305M0220AM 34244 2.2mm .0866 3mm 38mm 12.19mm ALtima® Micro Straight 144.00 20.59
.0886 305M0225 34109 2.25mm .0886 3mm 38mm 12.19mm Uncoated Straight 62.00 15.01
.0886 305M0225AM 34245 2.25mm .0886 3mm 38mm 12.19mm ALtima® Micro Straight 209.00 20.59
.0890 30508900 34110 #43 .0890 1/8 1-1/2 .480 Uncoated Straight 96.00 15.01
.0890 30508900AM 34190 #43 .0890 1/8 1-1/2 .480 ALtima® Micro Straight 86.00 20.59
.0906 305M0230 34111 2.3mm .0906 3mm 38mm 12.19mm Uncoated Straight 85.00 15.01
.0906 305M0230AM 34246 2.3mm .0906 3mm 38mm 12.19mm ALtima® Micro Straight 246.00 20.59
.0925 305M0235 34112 2.35mm .0925 3mm 38mm 12.19mm Uncoated Straight 55.00 15.01
.0925 305M0235AM 34247 2.35mm .0925 3mm 38mm 12.19mm ALtima® Micro Straight 185.00 20.59
.0935 30509350 34113 #42 .0935 1/8 1-1/2 .480 Uncoated Straight 38.00 15.01
.0935 30509350AM 34191 #42 .0935 1/8 1-1/2 .480 ALtima® Micro Straight 131.00 20.59
.0938 30509380 34114 3/32 .0938 1/8 1-1/2 .480 Uncoated Straight 163.00 15.01
.0938 30509380AM 34192 3/32 .0938 1/8 1-1/2 .480 ALtima® Micro Straight 538.00 20.59
.0938 30509380C 19721 3/32 .0938 1/8 1-1/2 .480 Uncoated Straight 0.00 15.69
.0938 30509380AMC 19723 3/32 .0938 1/8 1-1/2 .480 ALtima® Micro Straight 0.00 21.26
.0945 305M0240 34115 2.4mm .0945 3mm 38mm 12.19mm Uncoated Straight 97.00 15.01
.0945 305M0240AM 34248 2.4mm .0945 3mm 38mm 12.19mm ALtima® Micro Straight 253.00 20.59
.0960 30509600 34116 #41 .0960 1/8 1-1/2 .480 Uncoated Straight 22.00 15.01
.0960 30509600AM 34193 #41 .0960 1/8 1-1/2 .480 ALtima® Micro Straight 192.00 20.59
.0960 30509600CE 78028 #41 .0960 1/8 1-1/2 .480 CERAedge® Straight 0.00 26.2
.0965 305M0245 34117 2.45mm .0965 3mm 38mm 12.19mm Uncoated Straight 91.00 15.01
.0965 305M0245AM 34249 2.45mm .0965 3mm 38mm 12.19mm ALtima® Micro Straight 65.00 20.59
.0980 30509800 34118 #40 .0980 1/8 1-1/2 .480 Uncoated Straight 42.00 15.01
.0980 30509800AM 34194 #40 .0980 1/8 1-1/2 .480 ALtima® Micro Straight 59.00 20.59
.0984 305M0250 34119 2.5mm .0984 3mm 38mm 12.19mm Uncoated Straight 19.00 15.01
.0984 305M0250AM 34250 2.5mm .0984 3mm 38mm 12.19mm ALtima® Micro Straight 211.00 20.59
.0995 30509950 34120 #39 .0995 1/8 1-1/2 .480 Uncoated Straight 81.00 15.01
.0995 30509950AM 34195 #39 .0995 1/8 1-1/2 .480 ALtima® Micro Straight 240.00 20.59
.0995 30509950C 18473 #39 .0995 1/8 1-1/2 .480 Uncoated Straight 0.00 15.69
.1004 305M0255 34121 2.55mm .1004 3mm 38mm 12.19mm Uncoated Straight 55.00 15.01
.1004 305M0255AM 34251 2.55mm .1004 3mm 38mm 12.19mm ALtima® Micro Straight 57.00 20.59
.1015 30510150 34122 #38 .1015 1/8 1-1/2 .480 Uncoated Straight 56.00 15.01
.1015 30510150AM 34196 #38 .1015 1/8 1-1/2 .480 ALtima® Micro Straight 133.00 20.59
.1024 305M0260 34123 2.6mm .1024 3mm 38mm 12.19mm Uncoated Straight 65.00 15.01
.1024 305M0260AM 34252 2.6mm .1024 3mm 38mm 12.19mm ALtima® Micro Straight 179.00 20.59
.1040 30510400 34124 #37 .1040 1/8 1-1/2 .480 Uncoated Straight 5.00 15.01
.1040 30510400AM 34197 #37 .1040 1/8 1-1/2 .480 ALtima® Micro Straight 100.00 20.59
.1043 305M0265 34125 2.65mm .1043 3mm 38mm 12.19mm Uncoated Straight 69.00 15.01
.1043 305M0265AM 34253 2.65mm .1043 3mm 38mm 12.19mm ALtima® Micro Straight 178.00 20.59
.1063 305M0270 34126 2.7mm .1063 3mm 38mm 12.19mm Uncoated Straight 94.00 15.01
.1063 305M0270AM 34254 2.7mm .1063 3mm 38mm 12.19mm ALtima® Micro Straight 126.00 20.59
.1065 30510650 34127 #36 .1065 1/8 1-1/2 .480 Uncoated Straight 35.00 15.01
.1065 30510650AM 34198 #36 .1065 1/8 1-1/2 .480 ALtima® Micro Straight 182.00 20.59
.1083 305M0275 34128 2.75mm .1083 3mm 38mm 12.19mm Uncoated Straight 73.00 15.01
.1083 305M0275AM 34255 2.75mm .1083 3mm 38mm 12.19mm ALtima® Micro Straight 99.00 20.59
.1094 30510940 34129 7/64 .1094 1/8 1-1/2 .480 Uncoated Straight 90.00 15.01
.1094 30510940AM 34199 7/64 .1094 1/8 1-1/2 .480 ALtima® Micro Straight 110.00 20.59
.1100 30511000 34130 #35 .1100 1/8 1-1/2 .480 Uncoated Straight 135.00 15.01
.1100 30511000AM 34200 #35 .1100 1/8 1-1/2 .480 ALtima® Micro Straight 121.00 20.59
.1102 305M0280 34131 2.8mm .1102 3mm 38mm 12.19mm Uncoated Straight 21.00 15.01
.1102 305M0280AM 34256 2.8mm .1102 3mm 38mm 12.19mm ALtima® Micro Straight 39.00 20.59
.1110 30511100 34132 #34 .1110 1/8 1-1/2 .480 Uncoated Straight 36.00 15.01
.1110 30511100AM 34201 #34 .1110 1/8 1-1/2 .480 ALtima® Micro Straight 195.00 20.59
.1122 305M0285 34133 2.85mm .1122 3mm 38mm 12.19mm Uncoated Straight 43.00 15.01
.1122 305M0285AM 34257 2.85mm .1122 3mm 38mm 12.19mm ALtima® Micro Straight 22.00 20.59
.1130 30511300 34134 #33 .1130 1/8 1-1/2 .480 Uncoated Straight 193.00 15.01
.1130 30511300AM 34202 #33 .1130 1/8 1-1/2 .480 ALtima® Micro Straight 164.00 20.59
.1142 305M0290 34135 2.9mm .1142 3mm 38mm 12.19mm Uncoated Straight 101.00 15.01
.1142 305M0290AM 34258 2.9mm .1142 3mm 38mm 12.19mm ALtima® Micro Straight 143.00 20.59
.1160 30511600 34136 #32 .1160 1/8 1-1/2 .480 Uncoated Straight 52.00 15.01
.1160 30511600AM 34203 #32 .1160 1/8 1-1/2 .480 ALtima® Micro Straight 88.00 20.59
.1161 305M0295 34137 2.95mm .1161 3mm 38mm 12.19mm Uncoated Straight 46.00 15.01
.1161 305M0295AM 34259 2.95mm .1161 3mm 38mm 12.19mm ALtima® Micro Straight 224.00 20.59
.1181 305M0300 34138 3mm .1181 3mm 38mm 12.19mm Uncoated Straight 133.00 15.01
.1181 305M0300AM 34260 3mm .1181 3mm 38mm 12.19mm ALtima® Micro Straight 110.00 20.59
.1200 30512000 34139 #31 .1200 1/8 1-1/2 .480 Uncoated Straight 47.00 15.01
.1200 30512000AM 34204 #31 .1200 1/8 1-1/2 .480 ALtima® Micro Straight 109.00 20.59
.1250 30512500 34143 1/8 .1250 1/8 1-1/2 .480 Uncoated Straight 58.00 15.01
.1250 30512500AM 34205 1/8 .1250 1/8 1-1/2 .480 ALtima® Micro Straight 111.00 20.59
