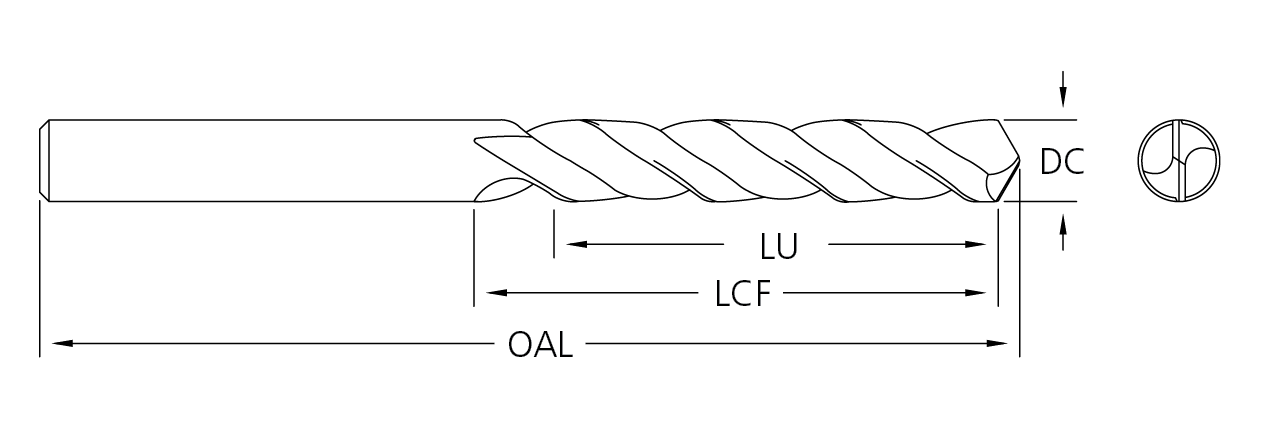

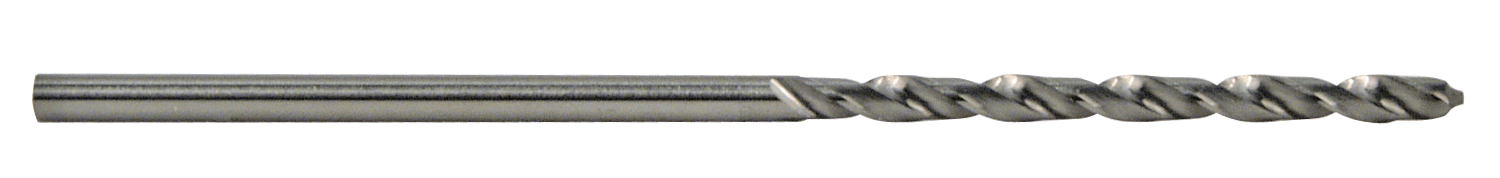

product photo product drawing

Drills / 300

Solid Carbide Twister® GP Drill
Designed for drilling soft metals as well as glass reinforced circuit boards, phenolic-epoxies and other abrasive materials.
  • 2 Flute
  • Solid carbide
  • Single margin
  • 118° Point
  • 35° Helix
  • Uncoated
  • Uncoated tools available coated upon request.  Contact Customer Service
  • Straight shank
  • Size range .0135-.2500", 0.50-3.15mm
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Cast iron
  • Non-Ferrous

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0135 30001350 30001 #80 .0135 .0135 1-1/2 1/4 Uncoated Straight 72.00 18.12
.0145 30001450 30005 #79 .0145 .0145 1-1/2 1/4 Uncoated Straight 53.00 18.12
.0156 30001560 30009 1/64 .0156 1/64 1-1/2 1/4 Uncoated Straight 148.00 17.78
.0160 30001600 30013 #78 .0160 .0160 1-1/2 1/4 Uncoated Straight 74.00 17.95
.0160 30001600A 20719 #78 .0160 .0160 1-1/2 1/4 ALtima® Straight 1.00 24.21
.0180 30001800 30017 #77 .0180 .0180 1-1/2 1/4 Uncoated Straight 58.00 17.26
.0197 30001970 30021 0.50mm .0197 0.5mm 38mm 9.5mm Uncoated Straight 308.00 17.43
.0200 30002000 30025 #76 .0200 .0200 1-1/2 3/8 Uncoated Straight 125.00 16.73
.0210 30002100 30029 #75 .0210 .0210 1-1/2 3/8 Uncoated Straight 244.00 16.57
.0217 30002170 30033 0.55mm .0217 0.55mm 38mm 9.5mm Uncoated Straight 51.00 18.12
.0225 30002250 30037 #74 .0225 .0225 1-1/2 3/8 Uncoated Straight 42.00 16.39
.0236 30002360 30041 0.60mm .0236 0.6mm 38mm 9.5mm Uncoated Straight 307.00 17.26
.0240 30002400 30045 #73 .0240 .0240 1-1/2 3/8 Uncoated Straight 142.00 16.21
.0250 30002500 30049 #72 .0250 .0250 1-1/2 1/2 Uncoated Straight 209.00 16.04
.0256 30002560 30053 0.65mm .0256 0.65mm 38mm 12.5mm Uncoated Straight 66.00 17.78
.0260 30002600 30057 #71 .0260 .0260 1-1/2 1/2 Uncoated Straight 75.00 16.21
.0276 30002760 30061 0.70mm .0276 0.7mm 38mm 12.5mm Uncoated Straight 415.00 17.43
.0280 30002800 30065 #70 .0280 .0280 1-1/2 1/2 Uncoated Straight 251.00 15.52
.0292 30002920 30069 #69 .0292 .0292 1-1/2 1/2 Uncoated Straight 223.00 15.18
.0295 30002950 30073 0.75mm .0295 0.75mm 38mm 12.5mm Uncoated Straight 180.00 16.57
.0310 30003100 30077 #68 .0310 .0310 1-1/2 1/2 Uncoated Straight 311.00 15.01
.0312 30003120 30081 1/32 .0312 1/32 1-1/2 1/2 Uncoated Straight 417.00 14.32
.0312 30003120A 76029 1/32 .0312 1/32 1-1/2 1/2 ALtima® Straight 36.00 20.57
.0315 30003150 30085 0.8mm .0315 0.8mm 38mm 12.5mm Uncoated Straight 100.00 16.57
.0320 30003200 30089 #67 .0320 .0320 1-1/2 1/2 Uncoated Straight 90.00 14.83
.0330 30003300 30093 #66 .0330 .0330 1-1/2 1/2 Uncoated Straight 186.00 15.01
.0335 30003350 30097 0.85mm .0335 0.85mm 38mm 12.5mm Uncoated Straight 119.00 18.45
.0350 30003500 30101 #65 .0350 .0350 1-1/2 5/8 Uncoated Straight 440.00 16.39
.0350 30003500A 16062 #65 .0350 .0350 1-1/2 5/8 ALtima® Straight 3.00 22.64
.0354 30003540 30105 0.9mm .0354 0.9mm 38mm 16mm Uncoated Straight 197.00 17.43
.0354 30003540A 19335 0.9mm .0354 0.9mm 38mm 16mm ALtima® Straight 0.00 23.69
.0360 30003600 30109 #64 .0360 .0360 1-1/2 5/8 Uncoated Straight 45.00 16.73
.0370 30003700 30113 #63 .0370 .0370 1-1/2 5/8 Uncoated Straight 44.00 16.57
.0374 30003740 30117 0.95mm .0374 0.95mm 38mm 16mm Uncoated Straight 144.00 18.45
.0380 30003800 30121 #62 .0380 .0380 1-1/2 5/8 Uncoated Straight 239.00 16.73
.0390 30003900 30125 #61 .0390 .0390 1-1/2 5/8 Uncoated Straight 189.00 17.09
.0394 30003940 30129 1mm .0394 1mm 38mm 16mm Uncoated Straight 1070.00 16.39
.0394 30003940A 19545 1mm .0394 1mm 38mm 16mm ALtima® Straight 0.00 20.35
.0400 30004000 30133 #60 .0400 .0400 1-1/2 5/8 Uncoated Straight 468.00 16.73
.0410 30004100 30137 #59 .0410 .0410 1-1/2 5/8 Uncoated Straight 152.00 16.39
.0413 30004130 30141 1.05mm .0413 1.05mm 38mm 16mm Uncoated Straight 68.00 16.39
.0420 30004200 30145 #58 .0420 .0420 1-1/2 5/8 Uncoated Straight 82.00 16.39
.0430 30004300 30149 #57 .0430 .0430 1-1/2 5/8 Uncoated Straight 66.00 15.71
.0433 30004330 30153 1.1mm .0433 1.1mm 38mm 16mm Uncoated Straight 462.00 15.71
.0452 30004520 30157 1.15mm .0452 1.15mm 38mm 16mm Uncoated Straight 304.00 15.71
.0465 30004650 30161 #56 .0465 .0465 1-1/2 5/8 Uncoated Straight 185.00 15.01
.0469 30004690 30165 3/64 .0469 3/64 1-1/2 5/8 Uncoated Straight 299.00 15.01
.0472 30004720 30169 1.2mm .0472 1.2mm 38mm 16mm Uncoated Straight 153.00 15.01
.0472 30004720A 77957 1.2mm .0472 1.2mm 38mm 16mm ALtima® Straight 0.00 21.3
.0492 30004920 30173 1.25mm .0492 1.25mm 38mm 16mm Uncoated Straight 257.00 14.32
.0492 30004920A 10825 1.25mm .0492 1.25mm 38mm 16mm ALtima® Straight 29.00 20.57
.0511 30005110 30177 1.3mm .0511 1.3mm 38mm 16mm Uncoated Straight 504.00 14.32
.0520 30005200 30181 #55 .0520 .0520 1-1/2 5/8 Uncoated Straight 221.00 14.32
.0531 30005310 30185 1.35mm .0531 1.35mm 38mm 16mm Uncoated Straight 375.00 13.62
.0550 30005500 30189 #54 .0550 .0550 1-1/2 5/8 Uncoated Straight 144.00 13.62
.0550 30005500GP 16866 #54 .0550 .0550 1-1/2 5/8 Gem Plus Straight 0.00 28.92
.0551 30005510 30193 1.4mm .0551 1.4mm 38mm 16mm Uncoated Straight 34.00 13.62
.0571 30005710 30197 1.45mm .0571 1.45mm 38mm 16mm Uncoated Straight 235.00 12.94
.0590 30005900 30201 1.5mm .0590 1.5mm 38mm 16mm Uncoated Straight 329.00 12.94
.0595 30005950 30205 #53 .0595 .0595 1-1/2 5/8 Uncoated Straight 336.00 12.94
.0610 30006100 30209 1.55mm .0610 1.55mm 38mm 16mm Uncoated Straight 1411.00 12.94
.0610 30006100A 77959 1.55mm .0610 1.55mm 38mm 16mm ALtima® Straight 7.00 19.21
.0625 30006250 30213 1/16 .0625 1/16 1-1/2 5/8 Uncoated Straight 272.00 12.94
.0630 30006300 30217 1.6mm .0630 1.6mm 38mm 16mm Uncoated Straight 34.00 12.22
.0635 30006350 30221 #52 .0635 .0635 1-1/2 5/8 Uncoated Straight 390.00 12.22
.0635 30006350A 15154 #52 .0635 .0635 1-1/2 5/8 ALtima® Straight 0.00 18.49
.0649 30006490 30225 1.65mm .0649 1.65mm 38mm 16mm Uncoated Straight 430.00 12.22
.0649 30006490A 76030 1.65mm .0649 1.65mm 38mm 16mm ALtima® Straight 59.00 18.49
.0669 30006690 30229 1.7mm .0669 1.7mm 38mm 16mm Uncoated Straight 343.00 12.22
.0670 30006700 30233 #51 .0670 .0670 1-1/2 5/8 Uncoated Straight 205.00 11.55
.0670 30006700A 77960 #51 .0670 .0670 1-1/2 5/8 ALtima® Straight 0.00 17.81
.0689 30006890 30237 1.75mm .0689 1.75mm 38mm 16mm Uncoated Straight 127.00 11.55
.0689 30006890A 77961 1.75mm .0689 1.75mm 38mm 16mm ALtima® Straight 6.00 17.81
.0700 30007000 30241 #50 .0700 .0700 1-1/2 5/8 Uncoated Straight 632.00 11.55
.0708 30007080 30245 1.8mm .0708 1.8mm 38mm 16mm Uncoated Straight 128.00 11.55
.0728 30007280 30249 1.85mm .0728 1.85mm 38mm 16mm Uncoated Straight 128.00 11.55
.0730 30007300 30253 #49 .0730 .0730 1-1/2 5/8 Uncoated Straight 172.00 11.37
.0730 30007300A 13583 #49 .0730 .0730 1-1/2 5/8 ALtima® Straight 0.00 17.63
.0748 30007480 30257 1.9mm .0748 1.9mm 38mm 16mm Uncoated Straight 262.00 12.22
.0760 30007600 30261 #48 .0760 .0760 1-1/2 5/8 Uncoated Straight 119.00 11.92
.0767 30007670 30265 1.95mm .0767 1.95mm 38mm 16mm Uncoated Straight 245.00 12.22
.0767 30007670A 20720 1.95mm .0767 1.95mm 38mm 16mm ALtima® Straight 0.00 18.48
.0781 30007810 30269 5/64 .0781 5/64 1-1/2 5/8 Uncoated Straight 141.00 12.6
.0785 30007850 30273 #47 .0785 .0785 1-1/2 5/8 Uncoated Straight 104.00 12.6
.0787 30007870 30277 2mm .0787 2mm 38mm 16mm Uncoated Straight 326.00 12.75
.0807 30008070 30281 2.05mm .0807 2.05mm 38mm 16mm Uncoated Straight 302.00 12.75
.0807 30008070A 77962 2.05mm .0807 2.05mm 38mm 16mm ALtima® Straight 5.00 19
.0810 30008100 30285 #46 .0810 .0810 1-1/2 5/8 Uncoated Straight 69.00 13.11
.0820 30008200 30289 #45 .0820 .0820 1-1/2 5/8 Uncoated Straight 69.00 13.3
.0827 30008270 30293 2.1mm .0827 2.1mm 38mm 16mm Uncoated Straight 102.00 13.45
.0846 30008460 30297 2.15mm .0846 2.15mm 38mm 16mm Uncoated Straight 105.00 13.45
.0846 30008460A 20722 2.15mm .0846 2.15mm 38mm 16mm ALtima® Straight 0.00 19.71
.0860 30008600 30301 #44 .0860 .0860 1-1/2 5/8 Uncoated Straight 1476.00 13.79
.0866 30008660 30305 2.2mm .0866 2.2mm 38mm 16mm Uncoated Straight 71.00 14.16
.0886 30008860 30309 2.25mm .0886 2.25mm 38mm 16mm Uncoated Straight 90.00 13.62
.0886 30008860A 18071 2.25mm .0886 2.25mm 38mm 16mm ALtima® Straight 0.00 19.89
.0890 30008900 30313 #43 .0890 .0890 1-1/2 5/8 Uncoated Straight 201.00 13.3
.0906 30009060 30317 2.3mm .0906 2.3mm 38mm 16mm Uncoated Straight 36.00 14.32
.0925 30009250 30321 2.35mm .0925 2.35mm 38mm 16mm Uncoated Straight 124.00 14.32
.0925 30009250A 14765 2.35mm .0925 2.35mm 38mm 16mm ALtima® Straight 0.00 20.57
.0935 30009350 30325 #42 .0935 .0935 1-1/2 5/8 Uncoated Straight 68.00 14.49
.0938 30009380 30329 3/32 .0938 3/32 1-1/2 5/8 Uncoated Straight 195.00 13.62
.0945 30009450 30333 2.4mm .0945 2.4mm 38mm 16mm Uncoated Straight 1546.00 14.67
.0960 30009600 30337 #41 .0960 .0960 1-1/2 5/8 Uncoated Straight 70.00 13.62
.0960 30009600T 77963 #41 .0960 .0960 1-1/2 5/8 TiN Straight 0.00 18.03
.0965 30009650 30341 2.45mm .0965 2.45mm 38mm 16mm Uncoated Straight 74.00 14.16
.0980 30009800 30345 #40 .0980 .0980 1-1/2 5/8 Uncoated Straight 140.00 14.32
.0984 30009840 30349 2.5mm .0984 2.5mm 38mm 16mm Uncoated Straight 25.00 15.18
.0995 30009950 30353 #39 .0995 .0995 1-1/2 5/8 Uncoated Straight 229.00 14.83
.1004 30010040 30357 2.55mm .1004 2.55mm 38mm 16mm Uncoated Straight 260.00 15.36
.1015 30010150 30361 #38 .1015 .1015 1-1/2 5/8 Uncoated Straight 202.00 15.71
.1024 30010240 30365 2.6mm .1024 2.6mm 38mm 16mm Uncoated Straight 61.00 16.21
.1040 30010400 30369 #37 .1040 .1040 1-1/2 5/8 Uncoated Straight 103.00 15.88
.1043 30010430 30371 2.65mm .1043 2.65mm 38mm 16mm Uncoated Straight 114.00 16.21
.1063 30010630 30373 2.7mm .1063 2.7mm 38mm 16mm Uncoated Straight 97.00 16.73
.1065 30010650 30377 #36 .1065 .1065 1-1/2 5/8 Uncoated Straight 157.00 15.88
.1083 30010830 30381 2.75mm .1083 2.75mm 38mm 16mm Uncoated Straight 96.00 15.36
.1083 30010830A 20723 2.75mm .1083 2.75mm 38mm 16mm ALtima® Straight 0.00 21.62
.1094 30010940 30385 7/64 .1094 7/64 1-1/2 5/8 Uncoated Straight 262.00 15.36
.1100 30011000 30389 #35 .1100 .1100 1-1/2 5/8 Uncoated Straight 85.00 17.95
.1102 30011020 30393 2.8mm .1102 2.8mm 38mm 16mm Uncoated Straight 57.00 18.62
.1110 30011100 30397 #34 .1110 .1110 1-1/2 5/8 Uncoated Straight 47.00 18.27
.1110 30011100CE 77964 #34 .1110 .1110 1-1/2 5/8 CERAedge® Straight 0.00 28.92
.1122 30011220 30401 2.85mm .1122 2.85mm 38mm 16mm Uncoated Straight 49.00 17.95
.1130 30011300 30405 #33 .1130 .1130 1-1/2 5/8 Uncoated Straight 81.00 17.78
.1142 30011420 30409 2.9mm .1142 2.9mm 38mm 16mm Uncoated Straight 32.00 18.27
.1142 30011420A 19559 2.9mm .1142 2.9mm 38mm 16mm ALtima® Straight 0.00 24.54
.1160 30011600 30413 #32 .1160 .1160 1-1/2 5/8 Uncoated Straight 269.00 17.95
.1161 30011610 30415 2.95mm .1161 2.95mm 38mm 16mm Uncoated Straight 27.00 17.43
.1161 30011610A 77965 2.95mm .1161 2.95mm 38mm 16mm ALtima® Straight 0.00 23.68
.1181 30011810 30417 3mm .1181 3mm 38mm 16mm Uncoated Straight 69.00 17.26
.1200 30012000 30421 #31 .1200 .1200 1-1/2 5/8 Uncoated Straight 412.00 17.43
.1201 30012010 30423 3.05mm .1201 3.05mm 38mm 16mm Uncoated Straight 44.00 17.78
.1201 30012010A 20725 3.05mm .1201 3.05mm 38mm 16mm ALtima® Straight 0.00 24.04
.1220 30012200 30425 3.1mm .1220 3.1mm 38mm 16mm Uncoated Straight 67.00 19.31
.1240 30012400 30427 3.15mm .1240 3.15mm 38mm 16mm Uncoated Straight 102.00 18.27
.1240 30012400A 77966 3.15mm .1240 3.15mm 38mm 16mm ALtima® Straight 6.00 24.53
.1250 30012500 30429 1/8 .1250 1/8 1-1/2 5/8 Uncoated Straight 321.00 17.43
.1250 30012500A 15153 1/8 .1250 1/8 1-1/2 5/8 ALtima® Straight 0.00 23.68
.1285 30012850 30437 #30 .1285 .1285 1-1/2 3/4 Uncoated Straight 331.00 17.95
.1285 30012850T 10826 #30 .1285 .1285 1-1/2 3/4 TiN Straight 0.00 23.55
.1360 30013600 30441 #29 .1360 .1360 1-1/2 3/4 Uncoated Straight 262.00 17.95
.1360 30013600A 76031 #29 .1360 .1360 1-1/2 3/4 ALtima® Straight 33.00 24.2
.1405 30014050 30445 #28 .1405 .1405 1-1/2 3/4 Uncoated Straight 64.00 18.62
.1406 30014060 30449 9/64 .1406 9/64 1-1/2 3/4 Uncoated Straight 175.00 18.78
.1440 30014400 30453 #27 .1440 .1440 1-1/2 3/4 Uncoated Straight 50.00 20.69
.1440 30014400T 10827 #27 .1440 .1440 1-1/2 3/4 TiN Straight 0.00 31.97
.1440 30014400A 18587 #27 .1440 .1440 1-1/2 3/4 ALtima® Straight 10.00 31.97
.1470 30014700 30457 #26 .1470 .1470 1-1/2 3/4 Uncoated Straight 66.00 20.86
.1470 30014700A 17036 #26 .1470 .1470 1-1/2 3/4 ALtima® Straight 0.00 32.12
.1495 30014950 30461 #25 .1495 .1495 1-1/2 3/4 Uncoated Straight 111.00 20
.1520 30015200 30465 #24 .1520 .1520 1-1/2 3/4 Uncoated Straight 129.00 21.57
.1540 30015400 30469 #23 .1540 .1540 1-1/2 3/4 Uncoated Straight 90.00 21.05
.1562 30015620 30473 5/32 .1562 5/32 1-1/2 3/4 Uncoated Straight 163.00 21.22
.1570 30015700 30477 #22 .1570 .1570 1-1/2 3/4 Uncoated Straight 19.00 23.8
.1590 30015900 30481 #21 .1590 .1590 1-1/2 3/4 Uncoated Straight 156.00 22.43
.1610 30016100 30485 #20 .1610 .1610 1-1/2 3/4 Uncoated Straight 55.00 22.61
.1660 30016600 30489 #19 .1660 .1660 1-1/2 3/4 Uncoated Straight 141.00 26.03
.1695 30016950 30493 #18 .1695 .1695 1-1/2 3/4 Uncoated Straight 52.00 27.6
.1719 30017190 30497 11/64 .1719 11/64 1-1/2 3/4 Uncoated Straight 61.00 26.39
.1730 30017300 30501 #17 .1730 .1730 1-1/2 3/4 Uncoated Straight 67.00 28.3
.1770 30017700 30505 #16 .1770 .1770 1-1/2 3/4 Uncoated Straight 109.00 27.07
.1770 30017700C 76032 #16 .1770 .1770 1-1/2 3/4 TiCN Straight 0.00 31.15
.1800 30018000 30509 #15 .1800 .1800 1-1/2 3/4 Uncoated Straight 61.00 28.64
.1820 30018200 30513 #14 .1820 .1820 1-1/2 3/4 Uncoated Straight 57.00 27.94
.1850 30018500 30517 #13 .1850 .1850 1-1/2 3/4 Uncoated Straight 90.00 28.1
.1875 30018750 30521 3/16 .1875 3/16 1-1/2 3/4 Uncoated Straight 374.00 27.6
.1890 30018900 30525 #12 .1890 .1890 1-1/2 3/4 Uncoated Straight 36.00 31.4
.1910 30019100 30529 #11 .1910 .1910 1-1/2 3/4 Uncoated Straight 80.00 30.2
.1935 30019350 30533 #10 .1935 .1935 1-1/2 3/4 Uncoated Straight 83.00 30.54
.1960 30019600 30537 #9 .1960 .1960 1-1/2 3/4 Uncoated Straight 39.00 32.61
.1990 30019900 30541 #8 .1990 .1990 1-1/2 3/4 Uncoated Straight 46.00 34.5
.2010 30020100 30545 #7 .2010 .2010 1-1/2 3/4 Uncoated Straight 76.00 32.44
.2031 30020310 30549 13/64 .2031 13/64 1-1/2 3/4 Uncoated Straight 105.00 32.61
.2040 30020400 30553 #6 .2040 .2040 1-1/2 3/4 Uncoated Straight 20.00 35.7
.2055 30020550 30557 #5 .2055 .2055 1-1/2 3/4 Uncoated Straight 35.00 36.4
.2090 30020900 30561 #4 .2090 .2090 1-1/2 3/4 Uncoated Straight 43.00 35.7
.2130 30021300 30565 #3 .2130 .2130 1-1/2 3/4 Uncoated Straight 18.00 34.82
.2187 30021870 30569 7/32 .2187 7/32 1-1/2 3/4 Uncoated Straight 48.00 36.4
.2210 30022100 30573 #2 .2210 .2210 1-1/2 3/4 Uncoated Straight 59.00 38.49
.2280 30022800 30577 #1 .2280 .2280 1-1/2 3/4 Uncoated Straight 73.00 39.17
.2340 30023400 30581 A .2340 .2340 1-1/2 3/4 Uncoated Straight 14.00 41.9
.2344 30023440 30585 15/64 .2344 15/64 1-1/2 3/4 Uncoated Straight 59.00 39.32
.2380 30023800 30589 B .2380 .2380 1-1/2 3/4 Uncoated Straight 24.00 44.5
.2420 30024200 30593 C .2420 .2420 1-1/2 3/4 Uncoated Straight 17.00 42.76
.2460 30024600 30597 D .2460 .2460 1-1/2 3/4 Uncoated Straight 41.00 43.29
.2500 30025000 30601 1/4 .2500 1/4 1-1/2 3/4 Uncoated Straight 165.00 42.6
