Drills / 2XDSR

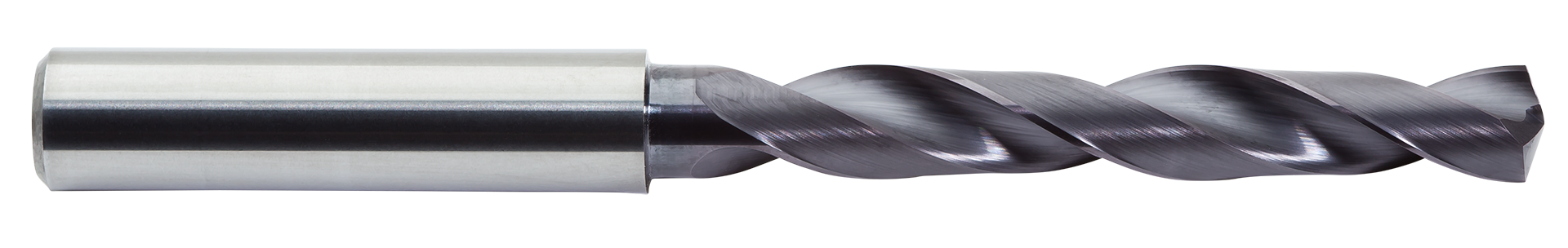

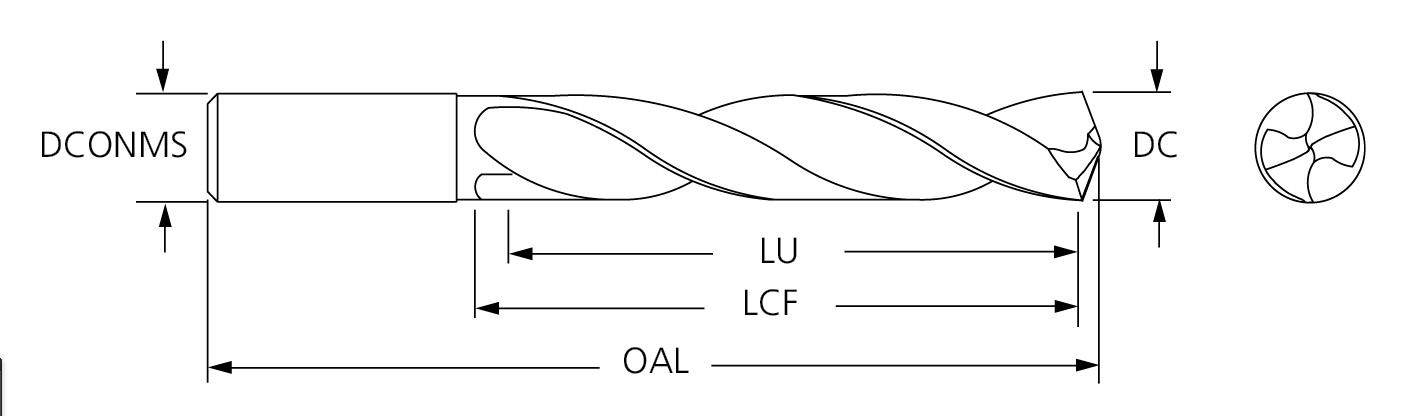

Solid Carbide Twister XD® Drill 5X
Designed for high performance drilling in a broad range of materials.  Low Thrust Point Geometry reduces cutting forces, allowing heavier feed rates and improved tool life.  Single Margin Design performs better in High Temp Alloys.  The XD Drill is designed for increased edge strength on the point with enhanced post coating surface treatment for improved chip evacuation.
  • 2 Flute
  • 5X Regular length
  • Solid carbide
  • Single margin
  • 140°-142° Point
  • 30° Helix
  • ALtima® coated, A=ALtima® coated
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0156 2XDSR0156A 22201 1/64 .0156 1/64 1-1/2 3/16 ALtima® Straight 79.00 31.17
.0197 2XDSR0197A 28001 0.50mm .0197 0.5mm 26mm 6mm ALtima® Straight 1.00 31.17
.0236 2XDSR0236A 28006 0.60mm .0236 0.6mm 26mm 7mm ALtima® Straight 30.00 31.17
.0256 2XDSR0256A 28011 0.65mm .0256 0.65mm 26mm 8mm ALtima® Straight 77.00 31.17
.0312 2XDSR0312A 22221 1/32 .0312 1/32 1-1/2 3/8 ALtima® Straight 95.00 31.17
.0374 2XDSR0374A 28016 0.95mm .0374 0.95mm 32mm 11mm ALtima® Straight 79.00 33.74
.0394 2XDSR0394A 28021 1mm .0394 1mm 34mm 12mm ALtima® Straight 24.00 33.74
.0413 2XDSR0413A 28026 1.05mm .0413 1.05mm 34mm 12mm ALtima® Straight 103.00 33.74
.0469 2XDSR0469A 22241 3/64 .0469 3/64 1-1/2 3/4 ALtima® Straight 79.00 33.74
.0492 2XDSR0492A 28031 1.25mm .0492 1.25mm 38mm 16mm ALtima® Straight 181.00 33.74
.0590 2XDSR0590A 28036 1.5mm .0590 1.5mm 40mm 18mm ALtima® Straight 232.00 33.74
.0625 2XDSR0625A 22256 1/16 .0625 1/16 1-1/2 3/4 ALtima® Straight 269.00 33.74
.0630 2XDSR0630A 28041 1.6mm .0630 1.6mm 43mm 20mm ALtima® Straight 161.00 33.74
.0708 2XDSR0708A 28046 1.8mm .0708 1.8mm 46mm 22mm ALtima® Straight 58.00 36.44
.0748 2XDSR0748A 28051 1.9mm .0748 1.9mm 46mm 22mm ALtima® Straight 167.00 36.44
.0781 2XDSR0781A 22276 5/64 .0781 5/64 1-3/4 7/8 ALtima® Straight 32.00 36.44
.0787 2XDSR0787A 28056 2mm .0787 2mm 49mm 24mm ALtima® Straight 38.00 36.44
.0807 2XDSR0807A 28058 2.05mm .0807 2.05mm 49mm 24mm ALtima® Straight 116.00 41.58
.0906 2XDSR0906A 28061 2.3mm .0906 2.3mm 53mm 27mm ALtima® Straight 82.00 41.58
.0938 2XDSR0938A 22291 3/32 .0938 3/32 2 1 ALtima® Straight 290.00 41.58
.0945 2XDSR0945A 28066 2.4mm .0945 2.4mm 57mm 30mm ALtima® Straight 122.00 41.58
.0984 2XDSR0984A 28071 2.5mm .0984 2.5mm 57mm 30mm ALtima® Straight 26.00 41.58
.1094 2XDSR1094A 22306 7/64 .1094 7/64 2-1/4 1-1/4 ALtima® Straight 129.00 44.12
.1142 2XDSR1142A 28073 2.9mm .1142 2.9mm 61mm 33mm ALtima® Straight 100.00 46.82
.1181 2XDSR1181A 02346 3mm .1181 3mm 63mm 24mm ALtima® Straight 187.00 55.85
.1200 2XDSR1200A 02348 #31 .1200 1/8 2-1/2 1-1/8 ALtima® Straight 1954.00 55.85
.1220 2XDSR1220A 02349 3.1mm .1220 4mm 69mm 32mm ALtima® Straight 45.00 55.85
.1250 2XDSR1250A 02350 1/8 .1250 1/8 2-1/2 1-1/8 ALtima® Straight 271.00 55.85
.1260 2XDSR1260A 02352 3.2mm .1260 4mm 69mm 32mm ALtima® Straight 84.00 60.71
.1285 2XDSR1285A 02354 #30 .1285 5/32 2-3/4 1.260 ALtima® Straight 45.00 60.71
.1299 2XDSR1299A 02356 3.3mm .1299 4mm 69mm 32mm ALtima® Straight 13.00 60.71
.1339 2XDSR1339A 02358 3.4mm .1339 4mm 69mm 32mm ALtima® Straight 66.00 60.71
.1360 2XDSR1360A 02360 #29 .1360 5/32 2-3/4 1.260 ALtima® Straight 35.00 60.71
.1378 2XDSR1378A 02362 3.5mm .1378 4mm 69mm 32mm ALtima® Straight 14.00 60.71
.1406 2XDSR1406A 02364 9/64 .1406 5/32 2-3/4 1.260 ALtima® Straight 104.00 60.71
.1417 2XDSR1417A 02365 3.6mm .1417 4mm 69mm 32mm ALtima® Straight 62.00 60.71
.1457 2XDSR1457A 02366 3.7mm .1457 4mm 69mm 32mm ALtima® Straight 21.00 60.71
.1496 2XDSR1496A 02368 3.8mm .1496 4mm 69mm 32mm ALtima® Straight 27.00 60.71
.1520 2XDSR1520A 02367 #24 .1520 5/32 2-3/4 1.260 ALtima® Straight 20.00 60.71
.1535 2XDSR1535A 02369 3.9mm .1535 4mm 69mm 32mm ALtima® Straight 42.00 60.71
.1562 2XDSR1562A 02370 5/32 .1562 5/32 2-3/4 1.260 ALtima® Straight 40.00 60.71
.1575 2XDSR1575A 02372 4mm .1575 4mm 69mm 32mm ALtima® Straight 188.00 60.71
.1590 2XDSR1590A 02373 #21 .1590 3/16 3.1500 1-1/2 ALtima® Straight 74.00 70.43
.1614 2XDSR1614A 04006 4.1mm .1614 5mm 80mm 38mm ALtima® Straight 39.00 70.43
.1654 2XDSR1654A 02374 4.2mm .1654 5mm 80mm 38mm ALtima® Straight 32.00 70.43
.1693 2XDSR1693A 02375 4.3mm .1693 5mm 80mm 38mm ALtima® Straight 29.00 70.43
.1719 2XDSR1719A 02376 11/64 .1719 3/16 3.1500 1-1/2 ALtima® Straight 40.00 70.43
.1732 2XDSR1732A 02377 4.4mm .1732 5mm 80mm 38mm ALtima® Straight 26.00 70.43
.1772 2XDSR1772A 02378 4.5mm .1772 5mm 80mm 38mm ALtima® Straight 68.00 70.43
.1811 2XDSR1811A 02380 4.6mm .1811 5mm 80mm 38mm ALtima® Straight 43.00 70.43
.1850 2XDSR1850A 02381 4.7mm .1850 5mm 80mm 38mm ALtima® Straight 61.00 70.43
.1875 2XDSR1875A 02382 3/16 .1875 3/16 3.1500 1-1/2 ALtima® Straight 92.00 70.43
.1890 2XDSR1890A 02384 4.8mm .1890 5mm 80mm 38mm ALtima® Straight 54.00 70.43
.1929 2XDSR1929A 02386 4.9mm .1929 5mm 80mm 38mm ALtima® Straight 82.00 70.43
.1968 2XDSR1968A 02388 5mm .1968 5mm 80mm 38mm ALtima® Straight 132.00 70.43
.2008 2XDSR2008A 02390 5.1mm .2008 6mm 82mm 40mm ALtima® Straight 58.00 75.28
.2031 2XDSR2031A 02392 13/64 .2031 15/64 3.2300 1.580 ALtima® Straight 51.00 75.28
.2047 2XDSR2047A 02394 5.2mm .2047 6mm 82mm 40mm ALtima® Straight 61.00 75.28
.2087 2XDSR2087A 02396 5.3mm .2087 6mm 82mm 40mm ALtima® Straight 79.00 75.28
.2126 2XDSR2126A 02398 5.4mm .2126 6mm 82mm 40mm ALtima® Straight 51.00 75.28
.2165 2XDSR2165A 02400 5.5mm .2165 6mm 82mm 40mm ALtima® Straight 40.00 75.28
.2187 2XDSR2187A 02402 7/32 .2187 15/64 3.2300 1.580 ALtima® Straight 22.00 75.28
.2210 2XDSR2210A 02404 #2 .2210 15/64 3.2300 1.580 ALtima® Straight 77.00 75.28
.2244 2XDSR2244A 02406 5.7mm .2244 6mm 82mm 40mm ALtima® Straight 20.00 75.28
.2283 2XDSR2283A 02408 5.8mm .2283 6mm 82mm 40mm ALtima® Straight 28.00 75.28
.2323 2XDSR2323A 02410 5.9mm .2323 6mm 82mm 40mm ALtima® Straight 27.00 75.28
.2344 2XDSR2344A 02412 15/64 .2344 15/64 3.2300 1.580 ALtima® Straight 24.00 75.28
.2362 2XDSR2362A 02414 6mm .2362 6mm 82mm 40mm ALtima® Straight 142.00 75.28
.2402 2XDSR2402A 02416 6.1mm .2402 8mm 91mm 48mm ALtima® Straight 46.00 87.43
.2420 2XDSR2420A 02418 C .2420 1/4 3-1/4 1.740 ALtima® Straight 14.00 80.16
.2441 2XDSR2441A 02420 6.2mm .2441 8mm 91mm 48mm ALtima® Straight 85.00 87.43
.2460 2XDSR2460A 02422 D .2460 1/4 3-1/4 1.740 ALtima® Straight 14.00 80.16
.2480 2XDSR2480A 02424 6.3mm .2480 8mm 91mm 48mm ALtima® Straight 9.00 87.43
.2500 2XDSR2500A 02426 1/4 .2500 1/4 3-1/4 1.740 ALtima® Straight 38.00 80.16
.2520 2XDSR2520A 02428 6.4mm .2520 8mm 91mm 48mm ALtima® Straight 32.00 87.43
.2559 2XDSR2559A 02430 6.5mm .2559 8mm 91mm 48mm ALtima® Straight 25.00 87.43
.2570 2XDSR2570A 02432 F .2570 5/16 3.5800 1.890 ALtima® Straight 27.00 87.43
.2598 2XDSR2598A 02433 6.6mm .2598 8mm 91mm 48mm ALtima® Straight 37.00 87.43
.2610 2XDSR2610A 02434 G .2610 5/16 3.5800 1.890 ALtima® Straight 39.00 87.43
.2638 2XDSR2638A 02435 6.7mm .2638 8mm 91mm 48mm ALtima® Straight 29.00 87.43
.2656 2XDSR2656A 02436 17/64 .2656 5/16 3.5800 1.890 ALtima® Straight 34.00 87.43
.2677 2XDSR2677A 02438 6.8mm .2677 8mm 91mm 48mm ALtima® Straight 10.00 87.43
.2717 2XDSR2717A 02440 6.9mm .2717 8mm 91mm 48mm ALtima® Straight 36.00 87.43
.2756 2XDSR2756A 02442 7mm .2756 8mm 91mm 48mm ALtima® Straight 40.00 87.43
.2795 2XDSR2795A 02443 7.1mm .2795 8mm 91mm 48mm ALtima® Straight 27.00 101.5
.2812 2XDSR2812A 02444 9/32 .2812 5/16 3.5800 1.890 ALtima® Straight 26.00 101.5
.2835 2XDSR2835A 02446 7.2mm .2835 8mm 91mm 48mm ALtima® Straight 34.00 101.5
.2874 2XDSR2874A 02447 7.3mm .2874 8mm 91mm 48mm ALtima® Straight 30.00 101.5
.2913 2XDSR2913A 02448 7.4mm .2913 8mm 91mm 48mm ALtima® Straight 20.00 101.5
.2953 2XDSR2953A 02450 7.5mm .2953 8mm 91mm 48mm ALtima® Straight 30.00 101.5
.2969 2XDSR2969A 02452 19/64 .2969 5/16 3.5800 1.890 ALtima® Straight 11.00 101.5
.2992 2XDSR2992A 02454 7.6mm .2992 8mm 91mm 48mm ALtima® Straight 52.00 101.5
.3031 2XDSR3031A 02456 7.7mm .3031 8mm 91mm 48mm ALtima® Straight 32.00 101.5
.3071 2XDSR3071A 02458 7.8mm .3071 8mm 91mm 48mm ALtima® Straight 30.00 101.5
.3110 2XDSR3110A 02459 7.9mm .3110 8mm 91mm 48mm ALtima® Straight 17.00 101.5
.3125 2XDSR3125A 02460 5/16 .3125 5/16 3.5800 1.890 ALtima® Straight 61.00 101.5
.3150 2XDSR3150A 02480 8mm .3150 8mm 91mm 48mm ALtima® Straight 33.00 101.5
.3189 2XDSR3189A 02482 8.1mm .3189 10mm 103mm 55mm ALtima® Straight 38.00 131.39
.3228 2XDSR3228A 02484 8.2mm .3228 10mm 103mm 55mm ALtima® Straight 18.00 131.39
.3268 2XDSR3268A 02486 8.3mm .3268 10mm 103mm 55mm ALtima® Straight 20.00 131.39
.3281 2XDSR3281A 02488 21/64 .3281 25/64 4.0600 2.170 ALtima® Straight 17.00 131.39
.3307 2XDSR3307A 02487 8.4mm .3307 10mm 103mm 55mm ALtima® Straight 36.00 131.39
.3320 2XDSR3320A 02489 Q .3320 25/64 4.0600 2.170 ALtima® Straight 23.00 131.39
.3346 2XDSR3346A 02490 8.5mm .3346 10mm 103mm 55mm ALtima® Straight 36.00 131.39
.3386 2XDSR3386A 02491 8.6mm .3386 10mm 103mm 55mm ALtima® Straight 39.00 131.39
.3425 2XDSR3425A 04007 8.7mm .3425 10mm 103mm 55mm ALtima® Straight 34.00 131.39
.3438 2XDSR3438A 02492 11/32 .3438 25/64 4.0600 2.170 ALtima® Straight 64.00 131.39
.3465 2XDSR3465A 02494 8.8mm .3465 10mm 103mm 55mm ALtima® Straight 33.00 131.39
.3504 2XDSR3504A 02496 8.9mm .3504 10mm 103mm 55mm ALtima® Straight 27.00 131.39
.3543 2XDSR3543A 02498 9mm .3543 10mm 103mm 55mm ALtima® Straight 27.00 131.39
.3583 2XDSR3583A 02499 9.1mm .3583 10mm 103mm 55mm ALtima® Straight 14.00 131.39
.3594 2XDSR3594A 02500 23/64 .3594 25/64 4.0600 2.170 ALtima® Straight 40.00 131.39
.3622 2XDSR3622A 02502 9.2mm .3622 10mm 103mm 55mm ALtima® Straight 28.00 131.39
.3642 2XDSR3642A 02504 9.25mm .3642 10mm 103mm 55mm ALtima® Straight 22.00 131.39
.3661 2XDSR3661A 02506 9.3mm .3661 10mm 103mm 55mm ALtima® Straight 11.00 131.39
.3701 2XDSR3701A 02507 9.4mm .3701 10mm 103mm 55mm ALtima® Straight 11.00 131.39
.3740 2XDSR3740A 02508 9.5mm .3740 10mm 103mm 55mm ALtima® Straight 17.00 131.39
.3750 2XDSR3750A 02510 3/8 .3750 25/64 4.0600 2.170 ALtima® Straight 18.00 131.39
.3780 2XDSR3780A 02511 9.6mm .3780 10mm 103mm 55mm ALtima® Straight 18.00 131.39
.3819 2XDSR3819A 02512 9.7mm .3819 10mm 103mm 55mm ALtima® Straight 9.00 131.39
.3858 2XDSR3858A 02514 9.8mm .3858 10mm 103mm 55mm ALtima® Straight 29.00 131.39
.3898 2XDSR3898A 02515 9.9mm .3898 10mm 103mm 55mm ALtima® Straight 18.00 131.39
.3906 2XDSR3906A 02516 25/64 .3906 25/64 4.0600 2.170 ALtima® Straight 39.00 131.39
.3937 2XDSR3937A 02518 10mm .3937 10mm 103mm 55mm ALtima® Straight 29.00 131.39
.3976 2XDSR3976A 02519 10.1mm .3976 12mm 120mm 60mm ALtima® Straight 16.00 167.24
.4016 2XDSR4016A 02520 10.2mm .4016 12mm 120mm 60mm ALtima® Straight 15.00 167.24
.4055 2XDSR4055A 02521 10.3mm .4055 12mm 120mm 60mm ALtima® Straight 8.00 167.24
.4062 2XDSR4062A 02522 13/32 .4062 15/32 4.7200 2.360 ALtima® Straight 86.00 167.24
.4094 2XDSR4094A 02523 10.4mm .4094 12mm 120mm 60mm ALtima® Straight 15.00 167.24
.4134 2XDSR4134A 02524 10.5mm .4134 12mm 120mm 60mm ALtima® Straight 25.00 167.24
.4173 2XDSR4173A 02525 10.6mm .4173 12mm 120mm 60mm ALtima® Straight 6.00 167.24
.4213 2XDSR4213A 04008 10.7mm .4213 12mm 120mm 60mm ALtima® Straight 40.00 167.24
.4219 2XDSR4219A 02526 27/64 .4219 15/32 4.7200 2.360 ALtima® Straight 29.00 167.24
.4252 2XDSR4252A 02527 10.8mm .4252 12mm 120mm 60mm ALtima® Straight 22.00 167.24
.4291 2XDSR4291A 04009 10.9mm .4291 12mm 120mm 60mm ALtima® Straight 3.00 167.24
.4331 2XDSR4331A 02528 11mm .4331 12mm 120mm 60mm ALtima® Straight 15.00 167.24
.4370 2XDSR4370A 02529 11.1mm .4370 12mm 120mm 66mm ALtima® Straight 13.00 192.96
.4375 2XDSR4375A 02530 7/16 .4375 15/32 4.7200 2.600 ALtima® Straight 57.00 192.96
.4409 2XDSR4409A 02532 11.2mm .4409 12mm 120mm 66mm ALtima® Straight 8.00 192.96
.4449 2XDSR4449A 02533 11.3mm .4449 12mm 120mm 66mm ALtima® Straight 9.00 192.96
.4488 2XDSR4488A 04010 11.4mm .4488 12mm 120mm 66mm ALtima® Straight 11.00 192.96
.4527 2XDSR4527A 02534 11.5mm .4527 12mm 120mm 66mm ALtima® Straight 15.00 192.96
.4567 2XDSR4567A 02535 11.6mm .4567 12mm 120mm 66mm ALtima® Straight 6.00 192.96
.4606 2XDSR4606A 02536 11.7mm .4606 12mm 120mm 66mm ALtima® Straight 16.00 192.96
.4646 2XDSR4646A 02537 11.8mm .4646 12mm 120mm 66mm ALtima® Straight 17.00 192.96
.4685 2XDSR4685A 04011 11.9mm .4685 12mm 120mm 66mm ALtima® Straight 5.00 192.96
.4688 2XDSR4688A 02538 15/32 .4688 15/32 4.7200 2.600 ALtima® Straight 52.00 192.96
.4724 2XDSR4724A 02540 12mm .4724 12mm 120mm 66mm ALtima® Straight 14.00 192.96
.4764 2XDSR4764A 02542 12.1mm .4764 14mm 126mm 72mm ALtima® Straight 12.00 233.16
.4844 2XDSR4844A 02544 31/64 .4844 1/2 4-3/4 2.830 ALtima® Straight 21.00 233.16
.4921 2XDSR4921A 02546 12.5mm .4921 14mm 126mm 72mm ALtima® Straight 6.00 233.16
.5000 2XDSR5000A 02548 1/2 .5000 1/2 4-3/4 2.830 ALtima® Straight 52.00 233.16
.5039 2XDSR5039A 02550 12.8mm .5039 14mm 126mm 72mm ALtima® Straight 8.00 233.16
.5051 2XDSR5051A 02549 12.83mm .5051 14mm 126mm 72mm ALtima® Straight 85.00 233.16
.5079 2XDSR5079A 02551 12.9mm .5079 14mm 126mm 72mm ALtima® Straight 2.00 233.16
.5118 2XDSR5118A 02552 13mm .5118 14mm 126mm 72mm ALtima® Straight 24.00 233.16
.5156 2XDSR5156A 02554 33/64 .5156 35/64 5.2800 3.030 ALtima® Straight 18.00 242.87
.5312 2XDSR5312A 02555 17/32 .5312 35/64 5.2800 3.030 ALtima® Straight 36.00 242.87
.5315 2XDSR5315A 02556 13.5mm .5315 14mm 134mm 77mm ALtima® Straight 10.00 242.87
.5394 2XDSR5394A 02558 13.7mm .5394 14mm 134mm 77mm ALtima® Straight 5.00 242.87
.5469 2XDSR5469A 02560 35/64 .5469 35/64 5.2800 3.030 ALtima® Straight 38.00 242.87
.5512 2XDSR5512A 02562 14mm .5512 14mm 134mm 77mm ALtima® Straight 15.00 242.87
.5625 2XDSR5625A 02564 9/16 .5625 5/8 5.5100 3.150 ALtima® Straight 17.00 286.57
.5709 2XDSR5709A 02566 14.5mm .5709 16mm 140mm 80mm ALtima® Straight 12.00 286.57
.5787 2XDSR5787A 02568 14.7mm .5787 16mm 140mm 80mm ALtima® Straight 12.00 286.57
.5905 2XDSR5905A 02570 15mm .5905 16mm 140mm 80mm ALtima® Straight 11.00 286.57
.5938 2XDSR5938A 02572 19/32 .5938 5/8 5-3/4 3.230 ALtima® Straight 9.00 286.57
.6024 2XDSR6024A 02573 15.3mm .6024 16mm 146mm 82mm ALtima® Straight 14.00 286.57
.6102 2XDSR6102A 02574 15.5mm .6102 16mm 146mm 82mm ALtima® Straight 12.00 286.57
.6181 2XDSR6181A 02576 15.7mm .6181 16mm 146mm 82mm ALtima® Straight 10.00 286.57
.6250 2XDSR6250A 02578 5/8 .6250 5/8 5-3/4 3.230 ALtima® Straight 10.00 286.57
.6299 2XDSR6299A 02580 16mm .6299 16mm 146mm 82mm ALtima® Straight 46.00 286.57
