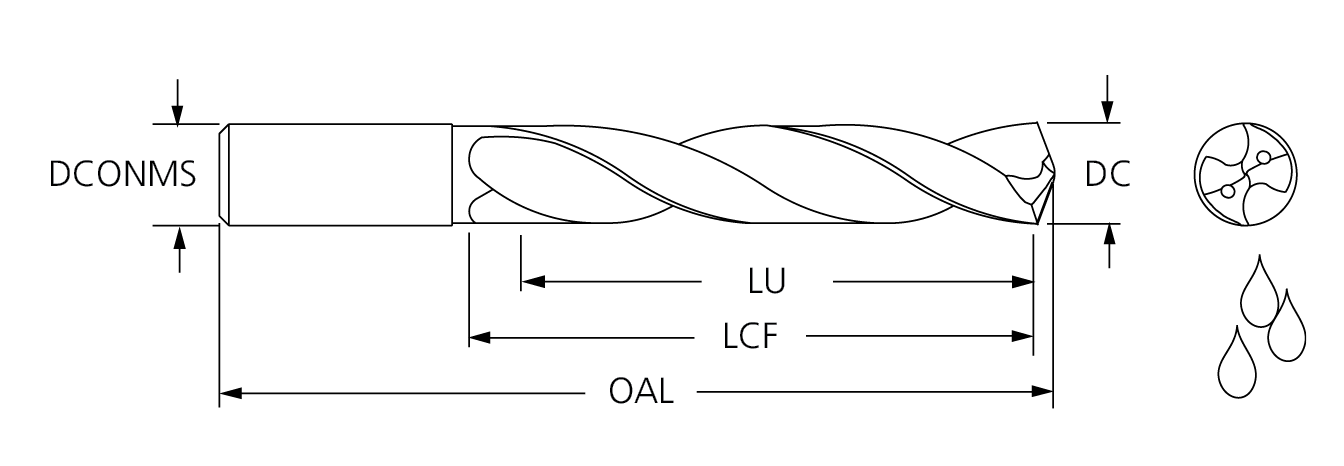

Drills / 2XDCL

Carbide Coolant Fed Twister XD® Drill 7X+
Designed for high performance drilling in a broad range of materials.  Low thrust point geometry reduces cutting forces, allowing heavier feed rates and improved tool life.  Single margin design performs better in High Temp Alloys.  The XD Drill is designed for increased edge strength on the point with enhanced post coating surface treatment for improved chip evacuation.
  • 2 Flute
  • 7X+ Long length
  • Carbide, coolant fed
  • Single margin
  • 140°-142° Point
  • 30° Helix
  • ALtima® coated, A=ALtima® coated
  • Recommended max drill depth = L2 - 1.5 x D1




Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.1181 2XDCL1181A 02830 3mm .1181 3mm 81mm 33mm ALtima® Straight 16.00 97.16
.1200 2XDCL1200A 02832 #31 .1200 1/8 3-1/2 1-1/2 ALtima® Straight 0.00 97.16
.1220 2XDCL1220A 02833 3.1mm .1220 4mm 92mm 44mm ALtima® Straight 46.00 101.98
.1250 2XDCL1250A 02834 1/8 .1250 1/8 3-1/2 1-1/2 ALtima® Straight 42.00 97.16
.1260 2XDCL1260A 02836 3.2mm .1260 4mm 92mm 44mm ALtima® Straight 51.00 101.98
.1285 2XDCL1285A 02838 #30 .1285 5/32 3-5/8 1-3/4 ALtima® Straight 64.00 101.98
.1299 2XDCL1299A 02840 3.3mm .1299 4mm 92mm 44mm ALtima® Straight 206.00 101.98
.1339 2XDCL1339A 02842 3.4mm .1339 4mm 92mm 44mm ALtima® Straight 110.00 101.98
.1360 2XDCL1360A 02844 #29 .1360 5/32 3-5/8 1-3/4 ALtima® Straight 45.00 101.98
.1378 2XDCL1378A 02846 3.5mm .1378 4mm 92mm 44mm ALtima® Straight 44.00 101.98
.1406 2XDCL1406A 02848 9/64 .1406 5/32 3-5/8 1-3/4 ALtima® Straight 39.00 101.98
.1417 2XDCL1417A 02849 3.6mm .1417 4mm 92mm 44mm ALtima® Straight 24.00 101.98
.1457 2XDCL1457A 02850 3.7mm .1457 4mm 92mm 44mm ALtima® Straight 7.00 101.98
.1496 2XDCL1496A 02852 3.8mm .1496 4mm 92mm 44mm ALtima® Straight 37.00 101.98
.1520 2XDCL1520A 02851 #24 .1520 5/32 3-5/8 1-3/4 ALtima® Straight 33.00 101.98
.1535 2XDCL1535A 02853 3.9mm .1535 4mm 92mm 44mm ALtima® Straight 39.00 101.98
.1562 2XDCL1562A 02854 5/32 .1562 5/32 3-5/8 1-3/4 ALtima® Straight 44.00 101.98
.1575 2XDCL1575A 02856 4mm .1575 4mm 92mm 44mm ALtima® Straight 73.00 101.98
.1590 2XDCL1590A 02857 #21 .1590 3/16 3.9400 1-3/4 ALtima® Straight 35.00 111.72
.1614 2XDCL1614A 04018 4.1mm .1614 5mm 100mm 45mm ALtima® Straight 31.00 111.72
.1654 2XDCL1654A 02858 4.2mm .1654 5mm 100mm 45mm ALtima® Straight 39.00 111.72
.1693 2XDCL1693A 02859 4.3mm .1693 5mm 100mm 45mm ALtima® Straight 30.00 111.72
.1719 2XDCL1719A 02860 11/64 .1719 3/16 3.9400 1-3/4 ALtima® Straight 44.00 111.72
.1732 2XDCL1732A 02861 4.4mm .1732 5mm 100mm 45mm ALtima® Straight 24.00 111.72
.1772 2XDCL1772A 02862 4.5mm .1772 5mm 100mm 45mm ALtima® Straight 20.00 111.72
.1811 2XDCL1811A 02864 4.6mm .1811 5mm 100mm 45mm ALtima® Straight 52.00 111.72
.1850 2XDCL1850A 02865 4.7mm .1850 5mm 100mm 45mm ALtima® Straight 30.00 111.72
.1875 2XDCL1875A 02866 3/16 .1875 3/16 3.9400 1-3/4 ALtima® Straight 35.00 111.72
.1890 2XDCL1890A 02868 4.8mm .1890 5mm 100mm 45mm ALtima® Straight 10.00 111.72
.1929 2XDCL1929A 02870 4.9mm .1929 5mm 100mm 45mm ALtima® Straight 43.00 111.72
.1968 2XDCL1968A 02872 5mm .1968 5mm 100mm 45mm ALtima® Straight 1.00 111.72
.2008 2XDCL2008A 02874 5.1mm .2008 6mm 100mm 51mm ALtima® Straight 39.00 121.45
.2031 2XDCL2031A 02876 13/64 .2031 15/64 3.9400 2 ALtima® Straight 2.00 121.45
.2047 2XDCL2047A 02878 5.2mm .2047 6mm 100mm 51mm ALtima® Straight 46.00 121.45
.2087 2XDCL2087A 02880 5.3mm .2087 6mm 100mm 51mm ALtima® Straight 27.00 121.45
.2126 2XDCL2126A 02882 5.4mm .2126 6mm 100mm 51mm ALtima® Straight 17.00 121.45
.2165 2XDCL2165A 02884 5.5mm .2165 6mm 100mm 51mm ALtima® Straight 55.00 121.45
.2187 2XDCL2187A 02886 7/32 .2187 15/64 3.9400 2 ALtima® Straight 86.00 121.45
.2210 2XDCL2210A 02888 #2 .2210 15/64 3.9400 2 ALtima® Straight 16.00 121.45
.2244 2XDCL2244A 02890 5.7mm .2244 6mm 100mm 51mm ALtima® Straight 43.00 121.45
.2283 2XDCL2283A 02892 5.8mm .2283 6mm 100mm 51mm ALtima® Straight 20.00 121.45
.2323 2XDCL2323A 02894 5.9mm .2323 6mm 100mm 51mm ALtima® Straight 23.00 121.45
.2344 2XDCL2344A 02896 15/64 .2344 15/64 3.9400 2 ALtima® Straight 18.00 121.45
.2362 2XDCL2362A 02898 6mm .2362 6mm 100mm 51mm ALtima® Straight 60.00 121.45
.2402 2XDCL2402A 02900 6.1mm .2402 8mm 109mm 60mm ALtima® Straight 32.00 139.9
.2420 2XDCL2420A 02902 C .2420 1/4 4.3100 2-1/4 ALtima® Straight 84.00 133.58
.2441 2XDCL2441A 02904 6.2mm .2441 8mm 109mm 60mm ALtima® Straight 29.00 139.9
.2460 2XDCL2460A 02906 D .2460 1/4 4.3100 2-1/4 ALtima® Straight 30.00 133.58
.2480 2XDCL2480A 02908 6.3mm .2480 8mm 109mm 60mm ALtima® Straight 35.00 139.9
.2500 2XDCL2500A 02910 1/4 .2500 1/4 4.3100 2-1/4 ALtima® Straight 38.00 133.58
.2520 2XDCL2520A 02912 6.4mm .2520 8mm 109mm 60mm ALtima® Straight 25.00 139.9
.2559 2XDCL2559A 02914 6.5mm .2559 8mm 109mm 60mm ALtima® Straight 36.00 139.9
.2570 2XDCL2570A 02916 F .2570 5/16 4.3100 2-3/8 ALtima® Straight 37.00 139.9
.2598 2XDCL2598A 02917 6.6mm .2598 8mm 109mm 60mm ALtima® Straight 43.00 139.9
.2610 2XDCL2610A 02918 G .2610 5/16 4.3100 2-3/8 ALtima® Straight 27.00 139.9
.2638 2XDCL2638A 02919 6.7mm .2638 8mm 109mm 60mm ALtima® Straight 20.00 139.9
.2656 2XDCL2656A 02920 17/64 .2656 5/16 4.3100 2-3/8 ALtima® Straight 8.00 139.9
.2677 2XDCL2677A 02922 6.8mm .2677 8mm 109mm 60mm ALtima® Straight 52.00 139.9
.2717 2XDCL2717A 02924 6.9mm .2717 8mm 109mm 60mm ALtima® Straight 31.00 139.9
.2756 2XDCL2756A 02926 7mm .2756 8mm 109mm 60mm ALtima® Straight 44.00 139.9
.2795 2XDCL2795A 02927 7.1mm .2795 8mm 118mm 70mm ALtima® Straight 27.00 160.27
.2812 2XDCL2812A 02928 9/32 .2812 5/16 4-5/8 2-3/4 ALtima® Straight 27.00 160.27
.2835 2XDCL2835A 02930 7.2mm .2835 8mm 118mm 70mm ALtima® Straight 12.00 160.27
.2874 2XDCL2874A 02931 7.3mm .2874 8mm 118mm 70mm ALtima® Straight 32.00 160.27
.2913 2XDCL2913A 02932 7.4mm .2913 8mm 118mm 70mm ALtima® Straight 49.00 160.27
.2953 2XDCL2953A 02934 7.5mm .2953 8mm 118mm 70mm ALtima® Straight 31.00 160.27
.2969 2XDCL2969A 02936 19/64 .2969 5/16 4-5/8 2-3/4 ALtima® Straight 50.00 160.27
.2992 2XDCL2992A 02938 7.6mm .2992 8mm 118mm 70mm ALtima® Straight 24.00 160.27
.3031 2XDCL3031A 02940 7.7mm .3031 8mm 118mm 70mm ALtima® Straight 12.00 160.27
.3071 2XDCL3071A 02942 7.8mm .3071 8mm 118mm 70mm ALtima® Straight 32.00 160.27
.3110 2XDCL3110A 02943 7.9mm .3110 8mm 118mm 70mm ALtima® Straight 16.00 160.27
.3125 2XDCL3125A 02944 5/16 .3125 5/16 4-5/8 2-3/4 ALtima® Straight 34.00 160.27
.3150 2XDCL3150A 02946 8mm .3150 8mm 118mm 70mm ALtima® Straight 36.00 160.27
.3189 2XDCL3189A 02948 8.1mm .3189 10mm 127mm 80mm ALtima® Straight 35.00 199.15
.3228 2XDCL3228A 02950 8.2mm .3228 10mm 127mm 80mm ALtima® Straight 31.00 199.15
.3268 2XDCL3268A 02952 8.3mm .3268 10mm 127mm 80mm ALtima® Straight 14.00 199.15
.3281 2XDCL3281A 02954 21/64 .3281 25/64 5 3.150 ALtima® Straight 47.00 199.15
.3307 2XDCL3307A 02953 8.4mm .3307 10mm 127mm 80mm ALtima® Straight 27.00 199.15
.3320 2XDCL3320A 02955 Q .3320 25/64 5 3.150 ALtima® Straight 32.00 199.15
.3346 2XDCL3346A 02956 8.5mm .3346 10mm 127mm 80mm ALtima® Straight 25.00 199.15
.3386 2XDCL3386A 02957 8.6mm .3386 10mm 127mm 80mm ALtima® Straight 21.00 199.15
.3425 2XDCL3425A 04019 8.7mm .3425 10mm 127mm 80mm ALtima® Straight 23.00 199.15
.3438 2XDCL3438A 02958 11/32 .3438 25/64 5 3.150 ALtima® Straight 26.00 199.15
.3465 2XDCL3465A 02960 8.8mm .3465 10mm 127mm 80mm ALtima® Straight 43.00 199.15
.3504 2XDCL3504A 02962 8.9mm .3504 10mm 127mm 80mm ALtima® Straight 9.00 199.15
.3543 2XDCL3543A 02964 9mm .3543 10mm 127mm 80mm ALtima® Straight 18.00 199.15
.3583 2XDCL3583A 02965 9.1mm .3583 10mm 136mm 85mm ALtima® Straight 40.00 231.94
.3594 2XDCL3594A 02966 23/64 .3594 25/64 5.3120 3.340 ALtima® Straight 35.00 231.94
.3622 2XDCL3622A 02968 9.2mm .3622 10mm 136mm 85mm ALtima® Straight 30.00 231.94
.3642 2XDCL3642A 02970 9.25mm .3642 10mm 136mm 85mm ALtima® Straight 15.00 231.94
.3661 2XDCL3661A 02972 9.3mm .3661 10mm 136mm 85mm ALtima® Straight 16.00 231.94
.3701 2XDCL3701A 02973 9.4mm .3701 10mm 136mm 85mm ALtima® Straight 16.00 231.94
.3740 2XDCL3740A 02974 9.5mm .3740 10mm 136mm 85mm ALtima® Straight 17.00 231.94
.3750 2XDCL3750A 02976 3/8 .3750 25/64 5.3120 3.340 ALtima® Straight 24.00 231.94
.3780 2XDCL3780A 02977 9.6mm .3780 10mm 136mm 85mm ALtima® Straight 33.00 231.94
.3819 2XDCL3819A 02978 9.7mm .3819 10mm 136mm 85mm ALtima® Straight 29.00 231.94
.3858 2XDCL3858A 02980 9.8mm .3858 10mm 136mm 85mm ALtima® Straight 45.00 231.94
.3898 2XDCL3898A 04024 9.9mm .3898 10mm 136mm 85mm ALtima® Straight 21.00 231.94
.3906 2XDCL3906A 02981 25/64 .3906 25/64 5.3120 3.340 ALtima® Straight 23.00 231.94
.3937 2XDCL3937A 02982 10mm .3937 10mm 136mm 85mm ALtima® Straight 28.00 231.94
.3976 2XDCL3976A 04025 10.1mm .3976 12mm 149mm 93mm ALtima® Straight 5.00 262.3
.4016 2XDCL4016A 02983 10.2mm .4016 12mm 149mm 93mm ALtima® Straight 17.00 262.3
.4055 2XDCL4055A 04026 10.3mm .4055 12mm 149mm 93mm ALtima® Straight 4.00 262.3
.4062 2XDCL4062A 02984 13/32 .4062 15/32 5.8750 3-5/8 ALtima® Straight 20.00 262.3
.4094 2XDCL4094A 02979 10.4mm .4094 12mm 149mm 93mm ALtima® Straight 26.00 262.3
.4134 2XDCL4134A 02986 10.5mm .4134 12mm 149mm 93mm ALtima® Straight 34.00 262.3
.4173 2XDCL4173A 02985 10.6mm .4173 12mm 149mm 93mm ALtima® Straight 24.00 262.3
.4213 2XDCL4213A 04020 10.7mm .4213 12mm 149mm 93mm ALtima® Straight 16.00 262.3
.4219 2XDCL4219A 02987 27/64 .4219 15/32 5.8750 3-5/8 ALtima® Straight 18.00 262.3
.4252 2XDCL4252A 96600 10.8mm .4252 12mm 149mm 93mm ALtima® Straight 10.00 262.3
.4291 2XDCL4291A 04021 10.9mm .4291 12mm 149mm 93mm ALtima® Straight 11.00 262.3
.4331 2XDCL4331A 02988 11mm .4331 12mm 149mm 93mm ALtima® Straight 29.00 262.3
.4370 2XDCL4370A 04027 11.1mm .4370 12mm 155mm 102mm ALtima® Straight 6.00 306.64
.4375 2XDCL4375A 02989 7/16 .4375 15/32 6.1000 4 ALtima® Straight 66.00 306.64
.4409 2XDCL4409A 02990 11.2mm .4409 12mm 155mm 102mm ALtima® Straight 41.00 306.64
.4449 2XDCL4449A 04028 11.3mm .4449 12mm 155mm 102mm ALtima® Straight 14.00 306.64
.4488 2XDCL4488A 04022 11.4mm .4488 12mm 155mm 102mm ALtima® Straight 10.00 306.64
.4527 2XDCL4527A 02991 11.5mm .4527 12mm 155mm 102mm ALtima® Straight 20.00 306.64
.4567 2XDCL4567A 04029 11.6mm .4567 12mm 155mm 102mm ALtima® Straight 10.00 306.64
.4606 2XDCL4606A 02992 11.7mm .4606 12mm 155mm 102mm ALtima® Straight 11.00 306.64
.4646 2XDCL4646A 96602 11.8mm .4646 12mm 155mm 102mm ALtima® Straight 21.00 306.64
.4685 2XDCL4685A 04023 11.9mm .4685 12mm 155mm 102mm ALtima® Straight 9.00 306.64
.4688 2XDCL4688A 02993 15/32 .4688 15/32 6.1000 4 ALtima® Straight 7.00 306.64
.4724 2XDCL4724A 02994 12mm .4724 12mm 155mm 102mm ALtima® Straight 26.00 306.64
.4844 2XDCL4844A 02995 31/64 .4844 1/2 6.2990 4.312 ALtima® Straight 5.00 316.33
.5000 2XDCL5000A 02996 1/2 .5000 1/2 6.2990 4.312 ALtima® Straight 24.00 316.33
