End Mills / 279

Solid Carbide TuffCut® XT 4 Flute End Mill, Ball Nose
Designed specifically for specific applications in steels, stainless steels, special alloys, and cast irons.
  • 4 Flute
  • Ball nose
  • ALtima® Blaze coating, B=ALtima® Blaze (ALCrN) coated
  • Center cutting
  • Stub and standard flute lengths
  • 38°/41° Variable helix angle
  • Enhanced cutting edge quality
  • Whisper blend transition between OD and neck

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • Slotting
  • Traditional Roughing
  • Finishing
  • 3D Surfacing
  • High Efficiency Milling

Series Attributes

Downloads

Product Range

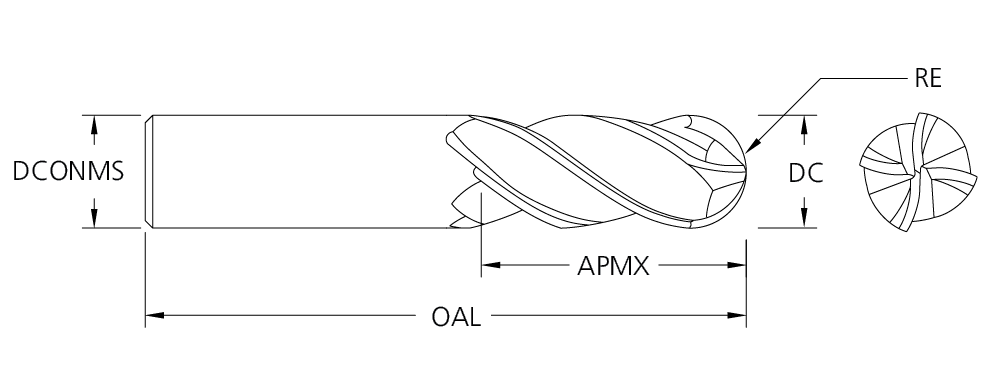

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) Ball Radius (C) Coating Shank Type Available List Price
.1181 279M0300B 27938 3mm 6mm 57mm 8mm 1.5mm ALtima® Blaze Straight 159.00 51.34
.1181 279M0300BW 15334 3mm 6mm 57mm 8mm 1.5mm ALtima® Blaze Weldon 0.00 55.71
.1250 27912500B 27910 1/8 1/8 1-1/2 1/4 1/16 ALtima® Blaze Straight 287.00 27.99
.1250 27912510B 27912 1/8 1/8 1-1/2 3/8 1/16 ALtima® Blaze Straight 292.00 29.7
.1575 279M0400B 27940 4mm 6mm 57mm 11mm 2mm ALtima® Blaze Straight 26.00 50.56
.1575 279M0400BW 14196 4mm 6mm 57mm 11mm 2mm ALtima® Blaze Weldon 0.00 54.96
.1875 27918700B 27914 3/16 3/16 2 3/8 3/32 ALtima® Blaze Straight 40.00 38.75
.1875 27918710B 27916 3/16 3/16 2 5/8 3/32 ALtima® Blaze Straight 161.00 41.26
.1875 27918700BW 14197 3/16 3/16 2 3/8 3/32 ALtima® Blaze Weldon 0.00 43.15
.1968 279M0500B 27942 5mm 6mm 57mm 13mm 2.5mm ALtima® Blaze Straight 160.00 51.13
.2362 279M0600B 27944 6mm 6mm 57mm 13mm 3mm ALtima® Blaze Straight 638.00 50.45
.2500 27925000B 27918 1/4 1/4 2 3/8 1/8 ALtima® Blaze Straight 120.00 47.27
.2500 27925010B 27920 1/4 1/4 2-1/2 3/4 1/8 ALtima® Blaze Straight 197.00 50.45
.2500 27925010BW 15335 1/4 1/4 2-1/2 3/4 1/8 ALtima® Blaze Weldon 0.00 54.83
.2500 27925000N0.625B 20698 1/4 1/4 2 3/8 5/8 1/8 ALtima® Blaze Straight 0.00 62.93
.3125 27931200B 27922 5/16 5/16 2 1/2 5/32 ALtima® Blaze Straight 28.00 64.82
.3125 27931210B 27924 5/16 5/16 2-1/2 13/16 5/32 ALtima® Blaze Straight 33.00 69.1
.3150 279M0800B 27946 8mm 8mm 63mm 19mm 4mm ALtima® Blaze Straight 65.00 62.61
.3750 27937500B 27926 3/8 3/8 2 1/2 3/16 ALtima® Blaze Straight 76.00 77.93
.3750 27937510B 27928 3/8 3/8 2-1/2 7/8 3/16 ALtima® Blaze Straight 108.00 83.01
.3750 27937510BW 15336 3/8 3/8 2-1/2 7/8 3/16 ALtima® Blaze Weldon 0.00 87.41
.3750 27937500BW 18114 3/8 3/8 2 1/2 3/16 ALtima® Blaze Weldon 0.00 82.32
.3937 279M1000B 27948 10mm 10mm 72mm 22mm 5mm ALtima® Blaze Straight 95.00 102.61
.4375 27943710B 27931 7/16 7/16 2-3/4 1 7/32 ALtima® Blaze Straight 14.00 106.9
.4724 279M1200B 27950 12mm 12mm 83mm 26mm 6mm ALtima® Blaze Straight 97.00 125.92
.5000 27950000BW 12690 1/2 1/2 2-1/2 5/8 1/4 ALtima® Blaze Weldon 0.00 133.24
.5000 27950000B 27930 1/2 1/2 2-1/2 5/8 1/4 ALtima® Blaze Straight 33.00 127.59
.5000 27950010B 27932 1/2 1/2 3 1-1/4 1/4 ALtima® Blaze Straight 137.00 135.83
.5000 27950010BW 15337 1/2 1/2 3 1-1/4 1/4 ALtima® Blaze Weldon 27.00 141.48
.6250 27962510B 27934 5/8 5/8 3-1/2 1-1/4 5/16 ALtima® Blaze Straight 25.00 256.46
.6299 279M1600B 27952 16mm 16mm 92mm 32mm 8mm ALtima® Blaze Straight 203.00 256.46
.7500 27975010B 27936 3/4 3/4 4 1-1/2 3/8 ALtima® Blaze Straight 33.00 376.9
.7500 27975010BW 17192 3/4 3/4 4 1-1/2 3/8 ALtima® Blaze Weldon 0.00 384.04
