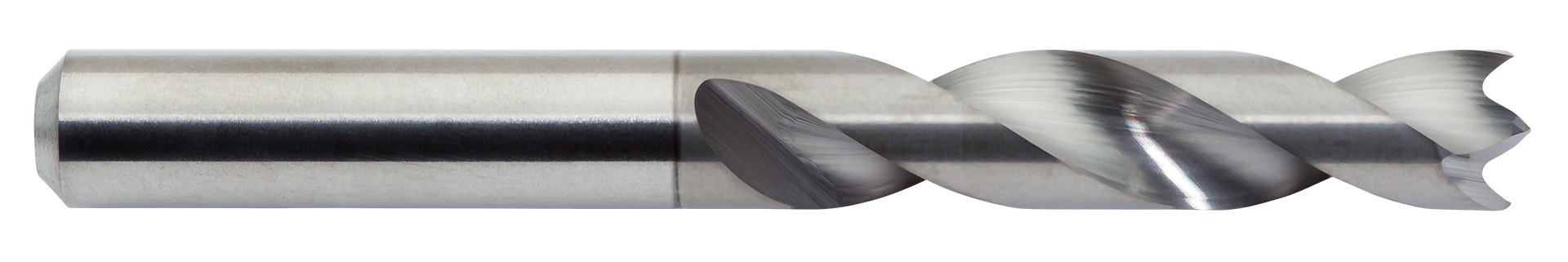

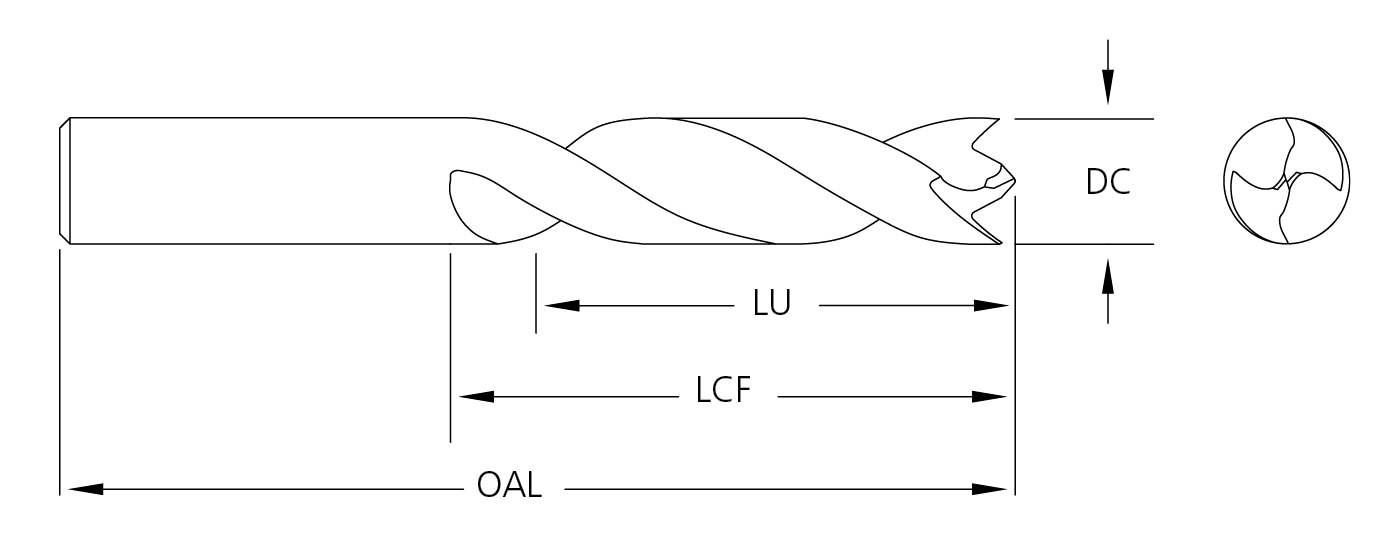

product photo product drawing

Drills / 207CE

Solid Carbide Twister® HP Drill Brad & Spur Point CERAedge® Coated. Designed for drilling Carbon Fiber Reinforced Polymer (CFRP), graphite and aramid fiber (Kevlar) reinforced composite materials.
  • 2 Flute
  • Solid carbide
  • 3X Drill length
  • 35° Helix angle
  • Brad and spur point
  • No delamination
  • Eliminate fuzz or "fray" at exit
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Non-Ferrous

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0935 20709350CE 77417 #42 .0935 .0935 1-3/4 1/2 CERAedge® Straight 0.00 36.01
.0938 20709380CE 27005 3/32 .0938 3/32 1-3/4 1/2 CERAedge® Straight 74.00 33.97
.0945 20709450CE 15840 2.4mm .0945 2.4mm 44mm 12.5mm CERAedge® Straight 5.00 30.99
.0980 20709800CE 27014 #40 .0980 .0980 1-13/16 1/2 CERAedge® Straight 7.00 36.82
.0995 20709950CE 19654 #39 .0995 .0995 1-13/16 1/2 CERAedge® Straight 0.00 36.84
.1015 20710150CE 27023 #38 .1015 .1015 1-13/16 1/2 CERAedge® Straight 61.00 34.74
.1110 20711100CE 17554 #34 .1110 .1110 1-7/8 5/8 CERAedge® Straight 0.00 38.83
.1250 20712500CE 27068 1/8 .1250 1/8 1-7/8 5/8 CERAedge® Straight 0.00 36.63
.1260 20712600CE 27071 3.2mm .1260 3.2mm 48mm 16mm CERAedge® Straight 124.00 43.91
.1285 20712850CE 27074 #30 .1285 .1285 1-15/16 11/16 CERAedge® Straight 3.00 45.98
.1299 20712990CE 27077 3.3mm .1299 3.3mm 49mm 17.5mm CERAedge® Straight 1.00 48.91
.1360 20713600CE 27083 #29 .1360 .1360 1-15/16 11/16 CERAedge® Straight 1.00 49.41
.1405 20714050CE 27089 #28 .1405 .1405 1-15/16 11/16 CERAedge® Straight 0.00 50.07
.1406 20714060CE 77418 9/64 .1406 9/64 1-15/16 11/16 CERAedge® Straight 4.00 50.24
.1562 20715620CE 27122 5/32 .1562 5/32 2-1/16 3/4 CERAedge® Straight 0.00 51.91
.1610 20716100CE 27134 #20 .1610 .1610 2-1/8 7/8 CERAedge® Straight 3.00 54.42
.1660 20716600CE 27143 #19 .1660 .1660 2-1/8 7/8 CERAedge® Straight 0.00 55.41
.1800 20718000CE 27167 #15 .1800 .1800 2-3/16 15/16 CERAedge® Straight 0.00 58.59
.1875 20718750CE 27179 3/16 .1875 3/16 2-3/16 15/16 CERAedge® Straight 0.00 59.9
.1889 20718890CE 17050 4.8mm .1889 4.8mm 57mm 25.5mm CERAedge® Straight 14.00 75.72
.1910 20719100CE 27188 #11 .1910 .1910 2-1/4 1 CERAedge® Straight 0.00 76.38
.1935 20719350CE 27194 #10 .1935 .1935 2-1/4 1 CERAedge® Straight 4.00 76.89
.1960 20719600CE 27197 #9 .1960 .1960 2-1/4 1 CERAedge® Straight 3.00 77.4
.1990 20719900CE 77419 #8 .1990 .1990 2-1/4 1 CERAedge® Straight 0.00 77.89
.2010 20720100CE 27209 #7 .2010 .2010 2-1/4 1 CERAedge® Straight 0.00 78.38
.2031 20720310CE 27212 13/64 .2031 13/64 2-1/4 1 CERAedge® Straight 11.00 78.57
.2055 20720550CE 17996 #5 .2055 .2055 2-3/8 1-1/16 CERAedge® Straight 0.00 79.55
.2090 20720900CE 27227 #4 .2090 .2090 2-3/8 1-1/16 CERAedge® Straight 0.00 75.67
.2130 20721300CE 27233 #3 .2130 .2130 2-3/8 1-1/16 CERAedge® Straight 6.00 80.56
.2187 20721870CE 27239 7/32 .2187 7/32 2-3/8 1-1/16 CERAedge® Straight 7.00 80.9
.2210 20722100CE 27245 #2 .2210 .2210 2-7/16 1-1/8 CERAedge® Straight 0.00 81.39
.2280 20722800CE 27251 #1 .2280 .2280 2-7/16 1-1/8 CERAedge® Straight 2.00 82.39
.2362 20723620CE 27266 6mm .2362 6mm 64mm 32mm CERAedge® Straight 1.00 85.06
.2460 20724600CE 19389 D .2460 .2460 2-1/2 1-1/4 CERAedge® Straight 0.00 86.56
.2500 20725000CE 27287 1/4 .2500 1/4 2-1/2 1-1/4 CERAedge® Straight 0.00 87.22
.2519 20725190CE 27290 6.4mm .2519 6.4mm 64mm 32mm CERAedge® Straight 1.00 107.93
.2570 20725700CE 27296 F .2570 .2570 2-5/8 1-5/16 CERAedge® Straight 0.00 127.92
.2610 20726100CE 27299 G .2610 .2610 2-5/8 1-5/16 CERAedge® Straight 0.00 132.45
.2656 20726560CE 27302 17/64 .2656 17/64 2-5/8 1-5/16 CERAedge® Straight 0.00 134.45
.2660 20726600CE 27305 H .2660 .2660 2-11/16 1-3/8 CERAedge® Straight 0.00 134.93
.2756 20727560CE 27311 7mm .2756 7mm 68mm 35mm CERAedge® Straight 4.00 135.93
.2810 20728100CE 27317 K .2810 .2810 2-11/16 1-3/8 CERAedge® Straight 44.00 137.59
.2812 20728120CE 27320 9/32 .2812 9/32 2-11/16 1-3/8 CERAedge® Straight 0.00 137.76
.2900 20729000CE 27323 L .2900 .2900 2-3/4 1-3/8 CERAedge® Straight 0.00 137.93
.2950 20729500CE 27326 M .2950 .2950 2-3/4 1-3/8 CERAedge® Straight 2.00 137.93
.3125 20731250CE 27338 5/16 .3125 5/16 2-13/16 1-1/2 CERAedge® Straight 0.00 138.12
.3150 20731500CE 27341 8mm .3150 8mm 71mm 38mm CERAedge® Straight 0.00 149.11
.3346 20733460CE 17051 8.5mm .3346 8.5mm 75mm 39.5mm CERAedge® Straight 0.00 164.28
.3480 20734800CE 14941 S .3480 .3480 3-1/16 1-9/16 CERAedge® Straight 0.00 173.95
.3680 20736800CE 20104 U .3680 .3680 3-1/8 1-5/8 CERAedge® Straight 0.00 179.68
.3750 20737500CE 27383 3/8 .3750 3/8 3-1/8 1-5/8 CERAedge® Straight 1.00 184.06
.3906 20739060CE 27392 25/64 .3906 25/64 3-1/4 1-3/4 CERAedge® Straight 3.00 226.45
.3937 20739370CE 20134 10mm .3937 10mm 84mm 44.5mm CERAedge® Straight 0.00 219.67
.4040 20740400CE 27401 Y .4040 .4040 3-5/16 1-3/4 CERAedge® Straight 1.00 240.3
.4375 20743750CE 27419 7/16 .4375 7/16 3-7/16 1-7/8 CERAedge® Straight 0.00 251.96
.4724 20747240CE 20135 12mm .4724 12mm 94mm 54mm CERAedge® Straight 0.00 290.3
.4844 20748440CE 20105 31/64 .4844 31/64 3-11/16 2-1/8 CERAedge® Straight 0.00 288.25
.5000 20750000CE 27437 1/2 .5000 1/2 3-3/4 2-1/8 CERAedge® Straight 0.00 277.01
