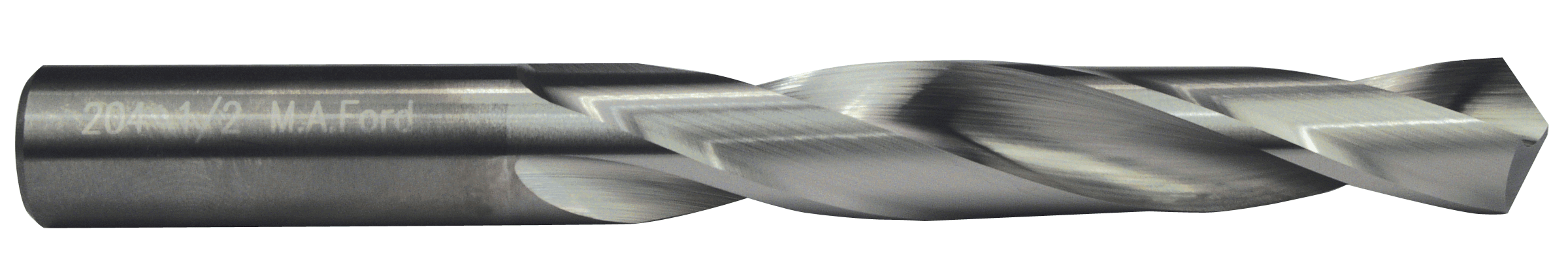

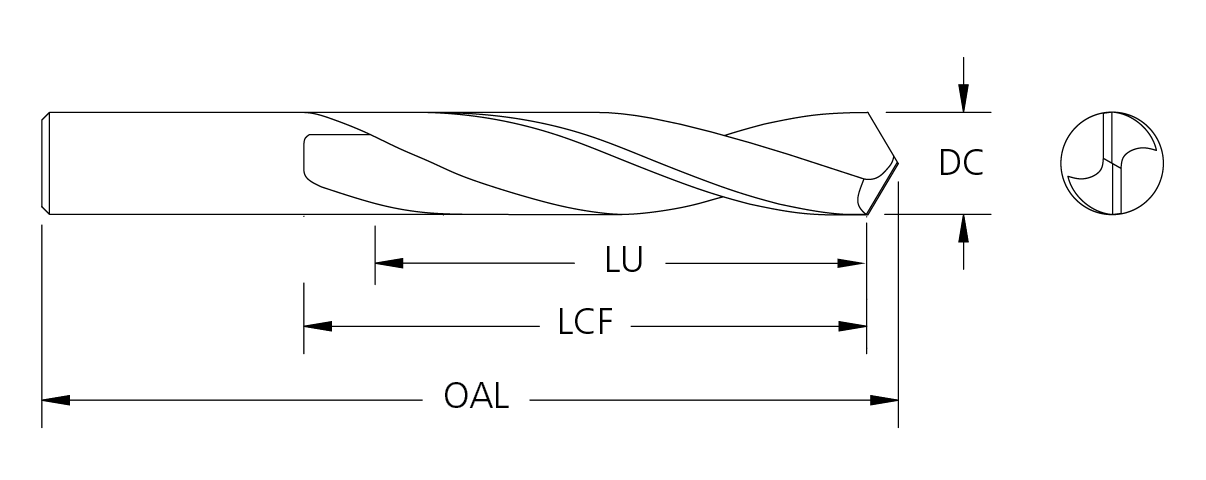

product photo product drawing

Drills / 204

Solid Carbide Twister® GP Drill
Allows high feed rates with good chip flow
Four facet drill point minimizes drill wander and assures accurately sized holes. For Metric Size Jobber Drills See Series 224.
  • 2 Flute
  • Solid carbide
  • 5X Standard length
  • Single margin
  • Uncoated, coatings available upon request
  • 118° Point angle
  • 21° Helix angle
  • Recommended max drill depth = L2 - 1.5 x D1

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Diameter Dec Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Coating Shank Type Available List Price
.0135 20401350 24004 #80 .0135 .0135 1-1/2 1/4 Uncoated Straight 107.00 18.19
.0145 20401450 24010 #79 .0145 .0145 1-1/2 1/4 Uncoated Straight 20.00 17.86
.0156 20401560 24013 1/64 .0156 1/64 1-1/2 1/4 Uncoated Straight 105.00 18.19
.0160 20401600 24019 #78 .0160 .0160 1-1/2 1/4 Uncoated Straight 84.00 17.68
.0160 20401600A 20903 #78 .0160 .0160 1-1/2 1/4 ALtima® Straight 0.00 23.94
.0180 20401800 24025 #77 .0180 .0180 1-1/2 1/4 Uncoated Straight 126.00 17.34
.0180 20401800A 20716 #77 .0180 .0180 1-1/2 1/4 ALtima® Straight 0.00 23.6
.0200 20402000 24031 #76 .0200 .0200 1-1/2 1/4 Uncoated Straight 130.00 17
.0200 20402000T 12288 #76 .0200 .0200 1-1/2 1/4 TiN Straight 0.00 24.2
.0210 20402100 24034 #75 .0210 .0210 1-1/2 1/4 Uncoated Straight 404.00 16.84
.0210 20402100A 12289 #75 .0210 .0210 1-1/2 1/4 ALtima® Straight 1.00 24.04
.0225 20402250 24040 #74 .0225 .0225 1-1/2 1/4 Uncoated Straight 37.00 16.68
.0225 20402250A 14880 #74 .0225 .0225 1-1/2 1/4 ALtima® Straight 0.00 22.94
.0240 20402400 24046 #73 .0240 .0240 1-1/2 1/4 Uncoated Straight 260.00 16.18
.0240 20402400T 12803 #73 .0240 .0240 1-1/2 1/4 TiN Straight 0.00 22.44
.0240 20402400A 19419 #73 .0240 .0240 1-1/2 1/4 ALtima® Straight 0.00 22.44
.0250 20402500 24049 #72 .0250 .0250 1-1/2 5/16 Uncoated Straight 147.00 16.18
.0250 20402500A 15397 #72 .0250 .0250 1-1/2 5/16 ALtima® Straight 0.00 22.44
.0260 20402600 24055 #71 .0260 .0260 1-1/2 5/16 Uncoated Straight 144.00 16
.0260 20402600A 19420 #71 .0260 .0260 1-1/2 5/16 ALtima® Straight 0.00 22.44
.0280 20402800 24061 #70 .0280 .0280 1-1/2 5/16 Uncoated Straight 215.00 15.86
.0280 20402800A 12290 #70 .0280 .0280 1-1/2 5/16 ALtima® Straight 1.00 23.04
.0292 20402920 24064 #69 .0292 .0292 1-1/2 5/16 Uncoated Straight 194.00 15.18
.0292 20402920A 20717 #69 .0292 .0292 1-1/2 5/16 ALtima® Straight 0.00 21.44
.0310 20403100 24070 #68 .0310 .0310 1-1/2 3/8 Uncoated Straight 363.00 14.99
.0310 20403100A 10041 #68 .0310 .0310 1-1/2 3/8 ALtima® Straight 0.00 21.26
.0310 20403100T 12291 #68 .0310 .0310 1-1/2 3/8 TiN Straight 0.00 22.19
.0312 20403120 24073 1/32 .0312 1/32 1-1/2 3/8 Uncoated Straight 308.00 14.52
.0312 20403120T 10671 1/32 .0312 1/32 1-1/2 3/8 TiN Straight 0.00 21.72
.0312 20403120A 12292 1/32 .0312 1/32 1-1/2 3/8 ALtima® Straight 0.00 21.72
.0320 20403200 24079 #67 .0320 .0320 1-1/2 3/8 Uncoated Straight 120.00 14.99
.0320 20403200A 12293 #67 .0320 .0320 1-1/2 3/8 ALtima® Straight 1.00 21.26
.0320 20403200T 12294 #67 .0320 .0320 1-1/2 3/8 TiN Straight 12.00 21.26
.0330 20403300 24082 #66 .0330 .0330 1-1/2 3/8 Uncoated Straight 172.00 15.18
.0330 20403300A 12295 #66 .0330 .0330 1-1/2 3/8 ALtima® Straight 0.00 21.43
.0350 20403500 24088 #65 .0350 .0350 1-1/2 3/8 Uncoated Straight 96.00 17
.0350 20403500A 12296 #65 .0350 .0350 1-1/2 3/8 ALtima® Straight 0.00 23.52
.0350 20403500T 12297 #65 .0350 .0350 1-1/2 3/8 TiN Straight 40.00 21.41
.0360 20403600 24094 #64 .0360 .0360 1-1/2 1/2 Uncoated Straight 83.00 17.19
.0360 20403600A 12298 #64 .0360 .0360 1-1/2 1/2 ALtima® Straight 0.00 23.44
.0360 20403600T 12299 #64 .0360 .0360 1-1/2 1/2 TiN Straight 0.00 23.44
.0370 20403700 24097 #63 .0370 .0370 1-1/2 1/2 Uncoated Straight 153.00 17.34
.0370 20403700A 12300 #63 .0370 .0370 1-1/2 1/2 ALtima® Straight 25.00 23.61
.0380 20403800 24103 #62 .0380 .0380 1-1/2 1/2 Uncoated Straight 207.00 17.68
.0380 20403800A 12302 #62 .0380 .0380 1-1/2 1/2 ALtima® Straight 7.00 23.95
.0380 20403800T 12304 #62 .0380 .0380 1-1/2 1/2 TiN Straight 0.00 23.95
.0390 20403900 24106 #61 .0390 .0390 1-1/2 1/2 Uncoated Straight 102.00 17.68
.0390 20403900A 12310 #61 .0390 .0390 1-1/2 1/2 ALtima® Straight 1.00 23.95
.0400 20404000 24112 #60 .0400 .0400 1-1/2 3/4 Uncoated Straight 551.00 17.68
.0400 20404000A 12318 #60 .0400 .0400 1-1/2 3/4 ALtima® Straight 2.00 22.09
.0410 20404100 24115 #59 .0410 .0410 1-1/2 3/4 Uncoated Straight 476.00 17.68
.0410 20404100A 12322 #59 .0410 .0410 1-1/2 3/4 ALtima® Straight 0.00 22.09
.0410 20404100T 12324 #59 .0410 .0410 1-1/2 3/4 TiN Straight 0.00 23.95
.0420 20404200 24121 #58 .0420 .0420 1-1/2 3/4 Uncoated Straight 116.00 17.68
.0420 20404200A 12326 #58 .0420 .0420 1-1/2 3/4 ALtima® Straight 0.00 23.95
.0430 20404300 24124 #57 .0430 .0430 1-1/2 3/4 Uncoated Straight 118.00 17.86
.0430 20404300A 77257 #57 .0430 .0430 1-1/2 3/4 ALtima® Straight 8.00 24.12
.0465 20404650 24133 #56 .0465 .0465 1-1/2 3/4 Uncoated Straight 248.00 18.36
.0469 20404690 24136 3/64 .0469 3/64 1-1/2 3/4 Uncoated Straight 250.00 17.52
.0469 20404690T 10672 3/64 .0469 3/64 1-1/2 3/4 TiN Straight 2.00 21.94
.0469 20404690A 12330 3/64 .0469 3/64 1-1/2 3/4 ALtima® Straight 3.00 21.94
.0520 20405200 24148 #55 .0520 .0520 1-1/2 3/4 Uncoated Straight 333.00 18.52
.0520 20405200A 12332 #55 .0520 .0520 1-1/2 3/4 ALtima® Straight 0.00 24.78
.0520 20405200C 12334 #55 .0520 .0520 1-1/2 3/4 TiCN Straight 0.00 24.78
.0550 20405500 24154 #54 .0550 .0550 1-1/2 3/4 Uncoated Straight 334.00 18.67
.0550 20405500A 77258 #54 .0550 .0550 1-1/2 3/4 ALtima® Straight 0.00 24.93
.0595 20405950 24166 #53 .0595 .0595 1-1/2 3/4 Uncoated Straight 169.00 19.01
.0595 20405950A 12336 #53 .0595 .0595 1-1/2 3/4 ALtima® Straight 14.00 25.28
.0595 20405950T 12337 #53 .0595 .0595 1-1/2 3/4 TiN Straight 0.00 25.28
.0625 20406250 24169 1/16 .0625 1/16 1-1/2 3/4 Uncoated Straight 1687.00 17.68
.0625 20406250A 12338 1/16 .0625 1/16 1-1/2 3/4 ALtima® Straight 2.00 22.09
.0635 20406350 24175 #52 .0635 .0635 1-1/2 3/4 Uncoated Straight 190.00 19.01
.0635 20406350A 12340 #52 .0635 .0635 1-1/2 3/4 ALtima® Straight 1.00 25.28
.0635 20406350GP 18393 #52 .0635 .0635 1-1/2 3/4 Gem Plus Straight 0.00 34.3
.0670 20406700 24181 #51 .0670 .0670 1-1/2 3/4 Uncoated Straight 331.00 19.01
.0670 20406700A 12341 #51 .0670 .0670 1-1/2 3/4 ALtima® Straight 0.00 23.42
.0670 20406700T 12342 #51 .0670 .0670 1-1/2 3/4 TiN Straight 0.00 25.28
.0700 20407000 24184 #50 .0700 .0700 1-3/4 7/8 Uncoated Straight 89.00 19.01
.0700 20407000A 12343 #50 .0700 .0700 1-3/4 7/8 ALtima® Straight 0.00 23.42
.0700 20407000GP 18395 #50 .0700 .0700 1-3/4 7/8 Gem Plus Straight 0.00 34.3
.0730 20407300 24190 #49 .0730 .0730 1-3/4 7/8 Uncoated Straight 199.00 19.2
.0730 20407300A 12344 #49 .0730 .0730 1-3/4 7/8 ALtima® Straight 0.00 25.45
.0730 20407300C 12345 #49 .0730 .0730 1-3/4 7/8 TiCN Straight 0.00 25.45
.0760 20407600 24196 #48 .0760 .0760 1-3/4 7/8 Uncoated Straight 206.00 19.53
.0760 20407600A 12347 #48 .0760 .0760 1-3/4 7/8 ALtima® Straight 0.00 25.77
.0781 20407810 24199 5/64 .0781 5/64 1-3/4 7/8 Uncoated Straight 202.00 18.36
.0781 20407810A 10673 5/64 .0781 5/64 1-3/4 7/8 ALtima® Straight 19.00 22.77
.0785 20407850 24202 #47 .0785 .0785 1-3/4 7/8 Uncoated Straight 220.00 19.66
.0785 20407850A 12349 #47 .0785 .0785 1-3/4 7/8 ALtima® Straight 0.00 25.93
.0810 20408100 24208 #46 .0810 .0810 1-3/4 7/8 Uncoated Straight 170.00 19.66
.0810 20408100A 10674 #46 .0810 .0810 1-3/4 7/8 ALtima® Straight 0.00 25.93
.0810 20408100T 12350 #46 .0810 .0810 1-3/4 7/8 TiN Straight 0.00 25.93
.0810 20408100C 14876 #46 .0810 .0810 1-3/4 7/8 TiCN Straight 16.00 25.93
.0820 20408200 24211 #45 .0820 .0820 1-3/4 7/8 Uncoated Straight 350.00 20
.0860 20408600 24217 #44 .0860 .0860 2 1 Uncoated Straight 133.00 20.35
.0860 20408600A 12352 #44 .0860 .0860 2 1 ALtima® Straight 3.00 26.62
.0860 20408600T 12353 #44 .0860 .0860 2 1 TiN Straight 0.00 26.62
.0890 20408900 24223 #43 .0890 .0890 2 1 Uncoated Straight 237.00 20.51
.0890 20408900A 12354 #43 .0890 .0890 2 1 ALtima® Straight 8.00 26.78
.0890 20408900CE 77259 #43 .0890 .0890 2 1 CERAedge® Straight 0.00 31.16
.0890 20408900T 20123 #43 .0890 .0890 2 1 TiN Straight 20.00 26.77
.0935 20409350 24229 #42 .0935 .0935 2 1 Uncoated Straight 198.00 21
.0938 20409380 24232 3/32 .0938 3/32 2 1 Uncoated Straight 339.00 19.84
.0938 20409380A 12355 3/32 .0938 3/32 2 1 ALtima® Straight 27.00 26.11
.0938 20409380T 12356 3/32 .0938 3/32 2 1 TiN Straight 0.00 26.11
.0960 20409600 24238 #41 .0960 .0960 2 1 Uncoated Straight 434.00 22.51
.0980 20409800 24241 #40 .0980 .0980 2 1 Uncoated Straight 635.00 24.02
.0980 20409800A 12358 #40 .0980 .0980 2 1 ALtima® Straight 0.00 30.27
.0995 20409950 24247 #39 .0995 .0995 2-1/4 1-1/4 Uncoated Straight 25.00 24.18
.0995 20409950A 12359 #39 .0995 .0995 2-1/4 1-1/4 ALtima® Straight 0.00 30.44
.1015 20410150 24250 #38 .1015 .1015 2-1/4 1-1/4 Uncoated Straight 107.00 24.34
.1015 20410150A 12361 #38 .1015 .1015 2-1/4 1-1/4 ALtima® Straight 13.00 28.76
.1040 20410400 24256 #37 .1040 .1040 2-1/4 1-1/4 Uncoated Straight 79.00 24.52
.1040 20410400A 12362 #37 .1040 .1040 2-1/4 1-1/4 ALtima® Straight 0.00 30.78
.1065 20410650 24262 #36 .1065 .1065 2-1/4 1-1/4 Uncoated Straight 78.00 24.86
.1065 20410650A 12364 #36 .1065 .1065 2-1/4 1-1/4 ALtima® Straight 0.00 31.13
.1094 20410940 24265 7/64 .1094 .1094 2-1/4 1-1/4 Uncoated Straight 190.00 22.51
.1094 20410940A 12366 7/64 .1094 .1094 2-1/4 1-1/4 ALtima® Straight 0.00 28.78
.1094 20410940F 12367 7/64 .1094 .1094 2-1/4 1-1/4 Fordlube Straight 0.00 30.64
.1100 20411000 24268 #35 .1100 .1100 2-1/4 1-1/4 Uncoated Straight 108.00 25.19
.1100 20411000A 12370 #35 .1100 .1100 2-1/4 1-1/4 ALtima® Straight 0.00 31.44
.1110 20411100 24274 #34 .1110 .1110 2-1/4 1-1/4 Uncoated Straight 113.00 25.34
.1110 20411100A 12371 #34 .1110 .1110 2-1/4 1-1/4 ALtima® Straight 0.00 31.61
.1110 20411100T 12372 #34 .1110 .1110 2-1/4 1-1/4 TiN Straight 0.00 31.61
.1130 20411300 24277 #33 .1130 .1130 2-1/4 1-1/4 Uncoated Straight 81.00 25.34
.1130 20411300A 16834 #33 .1130 .1130 2-1/4 1-1/4 ALtima® Straight 0.00 30.1
.1160 20411600 24283 #32 .1160 .1160 2-1/4 1-1/4 Uncoated Straight 72.00 25.67
.1160 20411600A 12373 #32 .1160 .1160 2-1/4 1-1/4 ALtima® Straight 0.00 31.93
.1200 20412000 24289 #31 .1200 .1200 2-1/4 1-1/4 Uncoated Straight 279.00 26
.1200 20412000A 12374 #31 .1200 .1200 2-1/4 1-1/4 ALtima® Straight 0.00 32.27
.1200 20412000T 12375 #31 .1200 .1200 2-1/4 1-1/4 TiN Straight 0.00 32.27
.1250 20412500 24295 1/8 .1250 1/8 2-1/4 1-1/4 Uncoated Straight 427.00 24.34
.1250 20412500A 12376 1/8 .1250 1/8 2-1/4 1-1/4 ALtima® Straight 15.00 30.59
.1250 20412500C 12377 1/8 .1250 1/8 2-1/4 1-1/4 TiCN Straight 0.00 30.59
.1250 20412500T 12378 1/8 .1250 1/8 2-1/4 1-1/4 TiN Straight 0.00 28.76
.1285 20412850 24301 #30 .1285 .1285 2-1/4 1-1/4 Uncoated Straight 48.00 27.01
.1285 20412850A 12379 #30 .1285 .1285 2-1/4 1-1/4 ALtima® Straight 0.00 32.64
.1285 20412850C 12380 #30 .1285 .1285 2-1/4 1-1/4 TiCN Straight 0.00 32.64
.1360 20413600 24310 #29 .1360 .1360 2-1/2 1-3/8 Uncoated Straight 457.00 28.85
.1360 20413600A 12382 #29 .1360 .1360 2-1/2 1-3/8 ALtima® Straight 9.00 34.49
.1360 20413600T 12383 #29 .1360 .1360 2-1/2 1-3/8 TiN Straight 0.00 34.49
.1405 20414050 24316 #28 .1405 .1405 2-1/2 1-3/8 Uncoated Straight 121.00 29.67
.1405 20414050A 12384 #28 .1405 .1405 2-1/2 1-3/8 ALtima® Straight 0.00 35.31
.1406 20414060 24319 9/64 .1406 9/64 2-1/2 1-3/8 Uncoated Straight 186.00 25.85
.1406 20414060A 12385 9/64 .1406 9/64 2-1/2 1-3/8 ALtima® Straight 0.00 31.47
.1440 20414400 24325 #27 .1440 .1440 2-1/2 1-3/8 Uncoated Straight 76.00 30.53
.1440 20414400A 77261 #27 .1440 .1440 2-1/2 1-3/8 ALtima® Straight 0.00 36.16
.1470 20414700 24331 #26 .1470 .1470 2-1/2 1-3/8 Uncoated Straight 80.00 31.19
.1470 20414700A 12387 #26 .1470 .1470 2-1/2 1-3/8 ALtima® Straight 0.00 36.81
.1470 20414700T 12388 #26 .1470 .1470 2-1/2 1-3/8 TiN Straight 49.00 36.81
.1470 20414700GP 18396 #26 .1470 .1470 2-1/2 1-3/8 Gem Plus Straight 0.00 54.29
.1495 20414950 24334 #25 .1495 .1495 2-1/2 1-3/8 Uncoated Straight 137.00 31.51
.1495 20414950A 12389 #25 .1495 .1495 2-1/2 1-3/8 ALtima® Straight 0.00 37.16
.1520 20415200 24340 #24 .1520 .1520 2-1/2 1-3/8 Uncoated Straight 60.00 32
.1520 20415200A 12391 #24 .1520 .1520 2-1/2 1-3/8 ALtima® Straight 0.00 37.64
.1540 20415400 24346 #23 .1540 .1540 2-1/2 1-3/8 Uncoated Straight 160.00 32.34
.1540 20415400A 12392 #23 .1540 .1540 2-1/2 1-3/8 ALtima® Straight 0.00 37.99
.1540 20415400T 12393 #23 .1540 .1540 2-1/2 1-3/8 TiN Straight 0.00 37.99
.1562 20415620 24349 5/32 .1562 5/32 2-1/2 1-3/8 Uncoated Straight 84.00 29.52
.1562 20415620T 12394 5/32 .1562 5/32 2-1/2 1-3/8 TiN Straight 0.00 35.15
.1562 20415620A 13160 5/32 .1562 5/32 2-1/2 1-3/8 ALtima® Straight 0.00 40.79
.1570 20415700 24352 #22 .1570 .1570 2-1/2 1-3/8 Uncoated Straight 28.00 33.19
.1590 20415900 24358 #21 .1590 .1590 2-1/2 1-3/8 Uncoated Straight 243.00 33.68
.1590 20415900A 12396 #21 .1590 .1590 2-1/2 1-3/8 ALtima® Straight 0.00 39.28
.1590 20415900T 12397 #21 .1590 .1590 2-1/2 1-3/8 TiN Straight 0.00 39.28
.1610 20416100 24361 #20 .1610 .1610 2-1/2 1-3/8 Uncoated Straight 0.00 34.18
.1610 20416100T 12398 #20 .1610 .1610 2-1/2 1-3/8 TiN Straight 8.00 39.82
.1660 20416600 24370 #19 .1660 .1660 2-3/4 1-5/8 Uncoated Straight 32.00 35
.1660 20416600A 16768 #19 .1660 .1660 2-3/4 1-5/8 ALtima® Straight 0.00 46.27
.1695 20416950 24376 #18 .1695 .1695 2-3/4 1-5/8 Uncoated Straight 47.00 35.67
.1695 20416950A 17378 #18 .1695 .1695 2-3/4 1-5/8 ALtima® Straight 5.00 46.95
.1719 20417190 24379 11/64 .1719 11/64 2-3/4 1-5/8 Uncoated Straight 122.00 34.68
.1719 20417190A 10015 11/64 .1719 11/64 2-3/4 1-5/8 ALtima® Straight 0.00 45.96
.1719 20417190T 12399 11/64 .1719 11/64 2-3/4 1-5/8 TiN Straight 0.00 45.96
.1730 20417300 24382 #17 .1730 .1730 2-3/4 1-5/8 Uncoated Straight 37.00 36.51
.1770 20417700 24388 #16 .1770 .1770 2-3/4 1-5/8 Uncoated Straight 57.00 37.35
.1770 20417700A 21065 #16 .1770 .1770 2-3/4 1-5/8 ALtima® Straight 0.00 48.62
.1800 20418000 24394 #15 .1800 .1800 2-3/4 1-5/8 Uncoated Straight 0.00 37.85
.1800 20418000A 12400 #15 .1800 .1800 2-3/4 1-5/8 ALtima® Straight 0.00 43.47
.1820 20418200 24400 #14 .1820 .1820 2-3/4 1-5/8 Uncoated Straight 22.00 38.35
.1820 20418200A 77263 #14 .1820 .1820 2-3/4 1-5/8 ALtima® Straight 0.00 43.97
.1850 20418500 24403 #13 .1850 .1850 2-3/4 1-5/8 Uncoated Straight 25.00 39
.1850 20418500A 12401 #13 .1850 .1850 2-3/4 1-5/8 ALtima® Straight 0.00 44.63
.1875 20418750 24406 3/16 .1875 3/16 2-3/4 1-5/8 Uncoated Straight 102.00 35.67
.1875 20418750A 12402 3/16 .1875 3/16 2-3/4 1-5/8 ALtima® Straight 4.00 41.31
.1875 20418750T 12404 3/16 .1875 3/16 2-3/4 1-5/8 TiN Straight 0.00 41.31
.1890 20418900 24412 #12 .1890 .1890 2-3/4 1-5/8 Uncoated Straight 150.00 40.02
.1890 20418900A 12405 #12 .1890 .1890 2-3/4 1-5/8 ALtima® Straight 17.00 45.63
.1890 20418900T 12406 #12 .1890 .1890 2-3/4 1-5/8 TiN Straight 0.00 45.63
.1910 20419100 24415 #11 .1910 .1910 2-3/4 1-5/8 Uncoated Straight 73.00 40.67
.1910 20419100A 12407 #11 .1910 .1910 2-3/4 1-5/8 ALtima® Straight 4.00 46.3
.1910 20419100T 12408 #11 .1910 .1910 2-3/4 1-5/8 TiN Straight 0.00 46.3
.1935 20419350 24421 #10 .1935 .1935 2-3/4 1-5/8 Uncoated Straight 134.00 41.35
.1935 20419350A 12409 #10 .1935 .1935 2-3/4 1-5/8 ALtima® Straight 7.00 46.98
.1960 20419600 24424 #9 .1960 .1960 3 1-3/4 Uncoated Straight 28.00 42.53
.1960 20419600A 12411 #9 .1960 .1960 3 1-3/4 ALtima® Straight 0.00 48.15
.1990 20419900 24430 #8 .1990 .1990 3 1-3/4 Uncoated Straight 35.00 43.5
.1990 20419900T 12412 #8 .1990 .1990 3 1-3/4 TiN Straight 0.00 54.96
.1990 20419900A 77264 #8 .1990 .1990 3 1-3/4 ALtima® Straight 0.00 57.28
.2010 20420100 24436 #7 .2010 .2010 3 1-3/4 Uncoated Straight 106.00 44.35
.2010 20420100T 12413 #7 .2010 .2010 3 1-3/4 TiN Straight 0.00 51
.2010 20420100GP 18394 #7 .2010 .2010 3 1-3/4 Gem Plus Straight 0.00 81.07
.2010 20420100A 20909 #7 .2010 .2010 3 1-3/4 ALtima® Straight 0.00 58.12
.2031 20420310 24439 13/64 .2031 13/64 3 1-3/4 Uncoated Straight 74.00 40.17
.2031 20420310A 77265 13/64 .2031 13/64 3 1-3/4 ALtima® Straight 12.00 50.78
.2040 20420400 24442 #6 .2040 .2040 3 1-3/4 Uncoated Straight 18.00 45.51
.2040 20420400A 20908 #6 .2040 .2040 3 1-3/4 ALtima® Straight 0.00 59.28
.2055 20420550 24448 #5 .2055 .2055 3 1-3/4 Uncoated Straight 153.00 45.84
.2055 20420550A 12414 #5 .2055 .2055 3 1-3/4 ALtima® Straight 0.00 57.28
.2090 20420900 24454 #4 .2090 .2090 3 1-3/4 Uncoated Straight 75.00 47.36
.2090 20420900A 20910 #4 .2090 .2090 3 1-3/4 ALtima® Straight 0.00 61.13
.2130 20421300 24460 #3 .2130 .2130 3 1-3/4 Uncoated Straight 198.00 48.69
.2130 20421300F 15583 #3 .2130 .2130 3 1-3/4 Fordlube Straight 0.00 66.19
.2130 20421300A 20907 #3 .2130 .2130 3 1-3/4 ALtima® Straight 0.00 62.46
.2187 20421870 24466 7/32 .2187 7/32 3 1-3/4 Uncoated Straight 93.00 44.84
.2187 20421870A 77266 7/32 .2187 7/32 3 1-3/4 ALtima® Straight 0.00 58.61
.2210 20422100 24472 #2 .2210 .2210 3 1-3/4 Uncoated Straight 59.00 51.86
.2280 20422800 24478 #1 .2280 .2280 3 1-3/4 Uncoated Straight 34.00 54.36
.2280 20422800A 12416 #1 .2280 .2280 3 1-3/4 ALtima® Straight 0.00 65.8
.2280 20422800T 12417 #1 .2280 .2280 3 1-3/4 TiN Straight 0.00 65.8
.2340 20423400 24487 A .2340 .2340 3-1/4 2 Uncoated Straight 33.00 56.85
.2340 20423400A 21063 A .2340 .2340 3-1/4 2 ALtima® Straight 0.00 70.62
.2344 20423440 24490 15/64 .2344 15/64 3-1/4 2 Uncoated Straight 111.00 48.53
.2344 20423440T 12418 15/64 .2344 15/64 3-1/4 2 TiN Straight 0.00 59.96
.2344 20423440A 20885 15/64 .2344 15/64 3-1/4 2 ALtima® Straight 0.00 62.3
.2380 20423800 24496 B .2380 .2380 3-1/4 2 Uncoated Straight 24.00 58.19
.2380 20423800A 12419 B .2380 .2380 3-1/4 2 ALtima® Straight 0.00 69.64
.2420 20424200 24502 C .2420 .2420 3-1/4 2 Uncoated Straight 142.00 59.67
.2420 20424200A 77267 C .2420 .2420 3-1/4 2 ALtima® Straight 0.00 73.44
.2460 20424600 24508 D .2460 .2460 3-1/4 2 Uncoated Straight 108.00 61.2
.2460 20424600T 12420 D .2460 .2460 3-1/4 2 TiN Straight 0.00 72.64
.2500 20425000 24514 1/4 .2500 1/4 3-1/4 2 Uncoated Straight 233.00 53.83
.2500 20425000A 12421 1/4 .2500 1/4 3-1/4 2 ALtima® Straight 3.00 65.27
.2500 20425000T 12422 1/4 .2500 1/4 3-1/4 2 TiN Straight 1.00 65.27
.2500 20425000GP 17654 1/4 .2500 1/4 3-1/4 2 Gem Plus Straight 0.00 90.55
.2570 20425700 24523 F .2570 .2570 3-1/4 2 Uncoated Straight 67.00 64.34
.2570 20425700A 12821 F .2570 .2570 3-1/4 2 ALtima® Straight 5.00 78.12
.2610 20426100 24529 G .2610 .2610 3-1/2 2-1/8 Uncoated Straight 82.00 65.67
.2610 20426100A 20998 G .2610 .2610 3-1/2 2-1/8 ALtima® Straight 0.00 104.48
.2656 20426560 24535 17/64 .2656 17/64 3-1/2 2-1/8 Uncoated Straight 173.00 59.67
.2656 20426560A 12424 17/64 .2656 17/64 3-1/2 2-1/8 ALtima® Straight 0.00 74.49
.2656 20426560T 12425 17/64 .2656 17/64 3-1/2 2-1/8 TiN Straight 0.00 74.49
.2660 20426600 24538 H .2660 .2660 3-1/2 2-1/8 Uncoated Straight 43.00 67.17
.2660 20426600A 21083 H .2660 .2660 3-1/2 2-1/8 ALtima® Straight 0.00 92.21
.2720 20427200 24547 I .2720 .2720 3-1/2 2-1/8 Uncoated Straight 73.00 69.36
.2720 20427200A 77268 I .2720 .2720 3-1/2 2-1/8 ALtima® Straight 3.00 84.16
.2770 20427700 24553 J .2770 .2770 3-1/2 2-1/8 Uncoated Straight 104.00 70.68
.2770 20427700T 12427 J .2770 .2770 3-1/2 2-1/8 TiN Straight 0.00 95.72
.2770 20427700A 19333 J .2770 .2770 3-1/2 2-1/8 ALtima® Straight 0.00 95.72
.2810 20428100 24559 K .2810 .2810 3-1/2 2-1/8 Uncoated Straight 19.00 72.19
.2810 20428100A 21095 K .2810 .2810 3-1/2 2-1/8 ALtima® Straight 0.00 97.23
.2812 20428120 24562 9/32 .2812 9/32 3-1/2 2-1/8 Uncoated Straight 93.00 63.36
.2812 20428120F 12428 9/32 .2812 9/32 3-1/2 2-1/8 Fordlube Straight 0.00 79.83
.2812 20428120T 12429 9/32 .2812 9/32 3-1/2 2-1/8 TiN Straight 0.00 78.14
.2812 20428120A 20886 9/32 .2812 9/32 3-1/2 2-1/8 ALtima® Straight 0.00 88.4
.2900 20429000 24571 L .2900 .2900 3-1/2 2-1/8 Uncoated Straight 48.00 75.04
.2900 20429000A 12430 L .2900 .2900 3-1/2 2-1/8 ALtima® Straight 0.00 89.82
.2950 20429500 24577 M .2950 .2950 3-3/4 2-3/8 Uncoated Straight 14.00 76.7
.2950 20429500A 20999 M .2950 .2950 3-3/4 2-3/8 ALtima® Straight 0.00 101.74
.2969 20429690 24583 19/64 .2969 19/64 3-3/4 2-3/8 Uncoated Straight 4.00 71.51
.2969 20429690A 21105 19/64 .2969 19/64 3-3/4 2-3/8 ALtima® Straight 0.00 96.55
.3020 20430200 24589 N .3020 .3020 3-3/4 2-3/8 Uncoated Straight 43.00 77.36
.3020 20430200A 12431 N .3020 .3020 3-3/4 2-3/8 ALtima® Straight 0.00 92.16
.3020 20430200C 12432 N .3020 .3020 3-3/4 2-3/8 TiCN Straight 0.00 92.16
.3125 20431250 24601 5/16 .3125 5/16 3-3/4 2-3/8 Uncoated Straight 207.00 75.04
.3125 20431250T 12433 5/16 .3125 5/16 3-3/4 2-3/8 TiN Straight 0.00 89.82
.3125 20431250A 20887 5/16 .3125 5/16 3-3/4 2-3/8 ALtima® Straight 0.00 100.08
.3160 20431600 24607 O .3160 .3160 3-3/4 2-3/8 Uncoated Straight 42.00 83.87
.3160 20431600A 15228 O .3160 .3160 3-3/4 2-3/8 ALtima® Straight 0.00 113.16
.3230 20432300 24616 P .3230 .3230 3-3/4 2-3/8 Uncoated Straight 45.00 88.19
.3230 20432300T 12434 P .3230 .3230 3-3/4 2-3/8 TiN Straight 0.00 104.6
.3281 20432810 24622 21/64 .3281 21/64 4 2-1/2 Uncoated Straight 0.00 81.51
.3281 20432810A 20913 21/64 .3281 21/64 4 2-1/2 ALtima® Straight 0.00 110.81
.3320 20433200 24628 Q .3320 .3320 4 2-1/2 Uncoated Straight 51.00 93.35
.3320 20433200A 21000 Q .3320 .3320 4 2-1/2 ALtima® Straight 0.00 122.65
.3390 20433900 24637 R .3390 .3390 4 2-1/2 Uncoated Straight 29.00 97.35
.3390 20433900A 21001 R .3390 .3390 4 2-1/2 ALtima® Straight 0.00 126.65
.3438 20434380 24643 11/32 .3438 11/32 4 2-1/2 Uncoated Straight 36.00 89.36
.3438 20434380T 12436 11/32 .3438 11/32 4 2-1/2 TiN Straight 0.00 105.75
.3480 20434800 24649 S .3480 .3480 4 2-1/2 Uncoated Straight 70.00 102.56
.3480 20434800T 12437 S .3480 .3480 4 2-1/2 TiN Straight 0.00 118.93
.3580 20435800 24658 T .3580 .3580 4-1/4 2-3/4 Uncoated Straight 17.00 108.19
.3580 20435800T 77269 T .3580 .3580 4-1/4 2-3/4 TiN Straight 2.00 137.49
.3594 20435940 24664 23/64 .3594 23/64 4-1/4 2-3/4 Uncoated Straight 58.00 98.02
.3680 20436800 24673 U .3680 .3680 4-1/4 2-3/4 Uncoated Straight 17.00 114.03
.3680 20436800A 77270 U .3680 .3680 4-1/4 2-3/4 ALtima® Straight 0.00 130.42
.3750 20437500 24682 3/8 .3750 3/8 4-1/4 2-3/4 Uncoated Straight 69.00 105.68
.3750 20437500T 75145 3/8 .3750 3/8 4-1/4 2-3/4 TiN Straight 0.00 122.06
.3750 20437500GP 18041 3/8 .3750 3/8 4-1/4 2-3/4 Gem Plus Straight 0.00 150.1
.3750 20437500A 19737 3/8 .3750 3/8 4-1/4 2-3/4 ALtima® Straight 0.00 134.98
.3770 20437700 24685 V .3770 .3770 4-1/2 2-7/8 Uncoated Straight 28.00 120.37
.3770 20437700A 77271 V .3770 .3770 4-1/2 2-7/8 ALtima® Straight 0.00 136.77
.3770 20437700T 75146 V .3770 .3770 4-1/2 2-7/8 TiN Straight 0.00 136.77
.3860 20438600 24697 W .3860 .3860 4-1/2 2-7/8 Uncoated Straight 25.00 130.37
.3860 20438600T 77272 W .3860 .3860 4-1/2 2-7/8 TiN Straight 0.00 159.67
.3860 20438600A 21002 W .3860 .3860 4-1/2 2-7/8 ALtima® Straight 0.00 159.67
.3906 20439060 24703 25/64 .3906 25/64 4-1/2 2-7/8 Uncoated Straight 44.00 121.38
.3906 20439060T 75147 25/64 .3906 25/64 4-1/2 2-7/8 TiN Straight 0.00 137.76
.3906 20439060A 20904 25/64 .3906 25/64 4-1/2 2-7/8 ALtima® Straight 0.00 150.68
.3970 20439700 24709 X .3970 .3970 4-1/2 2-7/8 Uncoated Straight 36.00 142.88
.3970 20439700C 75148 X .3970 .3970 4-1/2 2-7/8 TiCN Straight 0.00 161.2
.3970 20439700A 21003 X .3970 .3970 4-1/2 2-7/8 ALtima® Straight 0.00 175.06
.4040 20440400 24718 Y .4040 .4040 4-1/2 2-7/8 Uncoated Straight 13.00 150.7
.4040 20440400A 21096 Y .4040 .4040 4-1/2 2-7/8 ALtima® Straight 0.00 182.88
.4062 20440620 24724 13/32 .4062 13/32 4-1/2 2-7/8 Uncoated Straight 38.00 135.87
.4062 20440620T 75149 13/32 .4062 13/32 4-1/2 2-7/8 TiN Straight 0.00 154.19
.4130 20441300 24730 Z .4130 .4130 4-1/2 2-7/8 Uncoated Straight 11.00 161.55
.4130 20441300A 77273 Z .4130 .4130 4-1/2 2-7/8 ALtima® Straight 0.00 179.87
.4219 20442190 24742 27/64 .4219 27/64 4-1/2 2-7/8 Uncoated Straight 87.00 147.72
.4219 20442190T 75150 27/64 .4219 27/64 4-1/2 2-7/8 TiN Straight 0.00 166.03
.4219 20442190A 20905 27/64 .4219 27/64 4-1/2 2-7/8 ALtima® Straight 0.00 179.9
.4375 20443750 24757 7/16 .4375 7/16 4-1/2 2-7/8 Uncoated Straight 56.00 154.53
.4375 20443750A 77274 7/16 .4375 7/16 4-1/2 2-7/8 ALtima® Straight 2.00 172.88
.4375 20443750T 75151 7/16 .4375 7/16 4-1/2 2-7/8 TiN Straight 1.00 172.88
.4531 20445310 24772 29/64 .4531 29/64 4-3/4 3 Uncoated Straight 68.00 168.36
.4531 20445310A 75152 29/64 .4531 29/64 4-3/4 3 ALtima® Straight 0.00 189.96
.4688 20446880 24787 15/32 .4688 15/32 4-3/4 3 Uncoated Straight 28.00 180.05
.4688 20446880T 75153 15/32 .4688 15/32 4-3/4 3 TiN Straight 0.00 201.66
.4844 20448440 24793 31/64 .4844 31/64 4-3/4 3 Uncoated Straight 27.00 190.05
.4844 20448440A 21081 31/64 .4844 31/64 4-3/4 3 ALtima® Straight 0.00 223.48
.5000 20450000 24799 1/2 .5000 1/2 4-3/4 3 Uncoated Straight 81.00 191.71
.5000 20450000T 75154 1/2 .5000 1/2 4-3/4 3 TiN Straight 0.00 213.32
.5000 20450000A 20906 1/2 .5000 1/2 4-3/4 3 ALtima® Straight 0.00 225.14
.5156 20451560 24805 33/64 .5156 33/64 5 3-1/4 Uncoated Straight 57.00 206.71
.5156 20451560T 75155 33/64 .5156 33/64 5 3-1/4 TiN Straight 0.00 244.27
.5156 20451560A 17980 33/64 .5156 33/64 5 3-1/4 ALtima® Straight 0.00 244.27
.5312 20453120 24808 17/32 .5312 17/32 5 3-1/4 Uncoated Straight 89.00 216.72
.5312 20453120A 75156 17/32 .5312 17/32 5 3-1/4 ALtima® Straight 0.00 241.53
.5312 20453120T 75157 17/32 .5312 17/32 5 3-1/4 TiN Straight 0.00 241.53
.5469 20454690 24814 35/64 .5469 .5469 5 3-1/4 Uncoated Straight 13.00 228.39
.5469 20454690T 75158 35/64 .5469 .5469 5 3-1/4 TiN Straight 0.00 253.19
.5625 20456250 24820 9/16 .5625 9/16 5 3-1/4 Uncoated Straight 46.00 243.39
.5625 20456250T 20456 9/16 .5625 9/16 5 3-1/4 TiN Straight 0.00 267.72
.5625 20456250A 19357 9/16 .5625 9/16 5 3-1/4 ALtima® Straight 0.00 280.95
.5781 20457810 24826 37/64 .5781 .5781 5-1/4 3-1/2 Uncoated Straight 34.00 256.73
.5781 20457810A 18079 37/64 .5781 37/64 5-1/4 3-1/2 ALtima® Straight 0.00 306.82
.5938 20459380 24832 19/32 .5938 19/32 5-1/4 3-1/2 Uncoated Straight 25.00 275.07
.5938 20459380A 17992 19/32 .5938 19/32 5-1/4 3-1/2 ALtima® Straight 0.00 325.16
.6094 20460940 24835 39/64 .6094 .6094 5-1/4 3-1/2 Uncoated Straight 10.00 290.08
.6250 20462500 24841 5/8 .6250 5/8 5-1/4 3-1/2 Uncoated Straight 67.00 308.43
.6250 20462500A 17993 5/8 .6250 5/8 5-1/4 3-1/2 ALtima® Straight 0.00 358.51
.6406 20464060 24847 41/64 .6406 .6406 5-1/2 3-5/8 Uncoated Straight 25.00 323.43
.6406 20464060T 75159 41/64 .6406 .6406 5-1/2 3-5/8 TiN Straight 0.00 386.03
.6406 20464060A 17994 41/64 .6406 .6406 5-1/2 3-5/8 ALtima® Straight 1.00 386.03
.6562 20465620 24853 21/32 .6562 21/32 5-1/2 3-5/8 Uncoated Straight 25.00 341.75
.6719 20467190 24859 43/64 .6719 .6719 5-1/2 3-5/8 Uncoated Straight 10.00 356.75
.6719 20467190T 75160 43/64 .6719 .6719 5-1/2 3-5/8 TiN Straight 0.00 399.14
.6875 20468750 24862 11/16 .6875 11/16 5-1/2 3-5/8 Uncoated Straight 23.00 371.77
.6875 20468750T 77275 11/16 .6875 11/16 5-1/2 3-5/8 TiN Straight 0.00 414.14
.7031 20470310 24868 45/64 .7031 45/64 5-3/4 3-7/8 Uncoated Straight 14.00 383.44
.7188 20471880 24874 23/32 .7188 23/32 5-3/4 3-7/8 Uncoated Straight 13.00 395.09
.7188 20471880A 17995 23/32 .7188 23/32 5-3/4 3-7/8 ALtima® Straight 0.00 457.7
.7344 20473440 24880 47/64 .7344 47/64 5-3/4 3-7/8 Uncoated Straight 15.00 405.11
.7500 20475000 24886 3/4 .7500 3/4 5-3/4 3-7/8 Uncoated Straight 27.00 411.76
.7500 20475000A 75161 3/4 .7500 3/4 5-3/4 3-7/8 ALtima® Straight 0.00 454.15
.7500 20475000T 75162 3/4 .7500 3/4 5-3/4 3-7/8 TiN Straight 0.00 454.15
.7656 20476560 24889 49/64 .7656 49/64 6 4 Uncoated Straight 0.00 413.44
.7812 20478120 24892 25/32 .7812 25/32 6 4 Uncoated Straight 22.00 413.44
