End Mills / 179

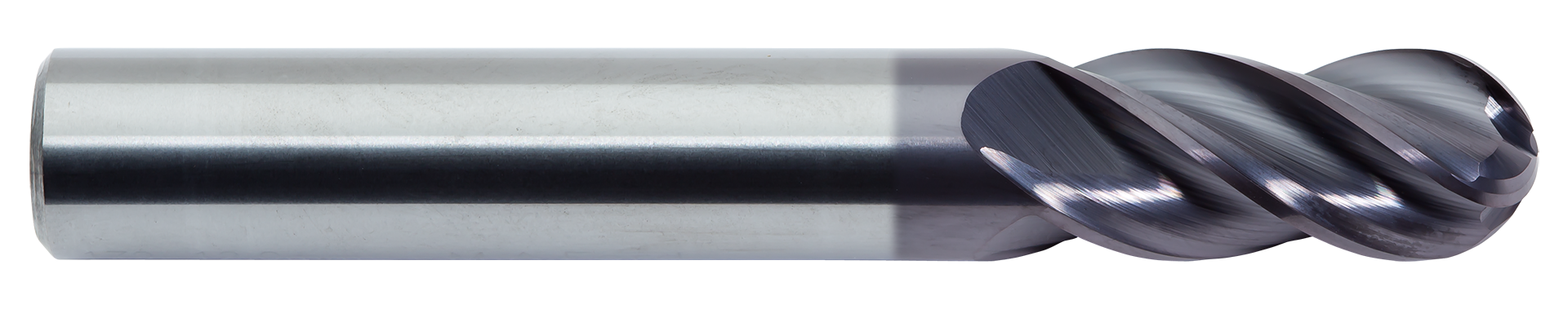

Solid Carbide TuffCut^® XR 4 Flute Ball Nose End Mill

Designed for extreme productivity.

4 Flute
Solid carbide
Ball nose
ALtima^® coated, A=ALtima^® (ALTiN) coated
Center cutting
Stub and standard flute lengths
35°/38° Variable helix angle
For roughing and finishing applications

Materials

Applications

Series Attributes

Downloads

Speed and Feed Data

End Mill Technical Data
Tolerance Chart

Series 179 Catalog Pages

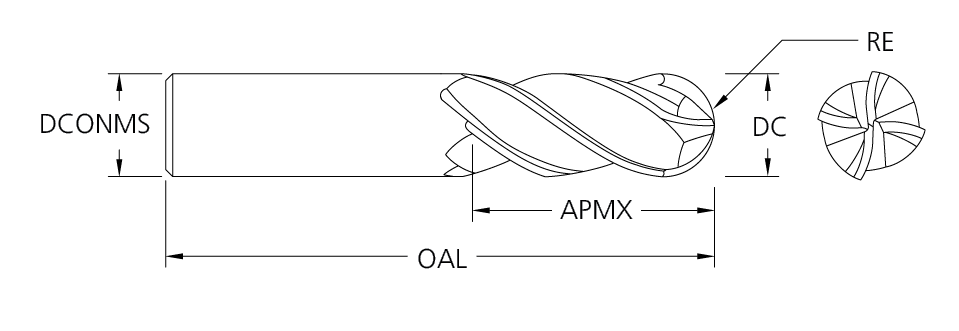

Line Drawing

Product Range

	Tool No.	EDP	Diameter (DC)	Shank Diameter (DCONMS)	Overall Length (OAL)	Flute Length (APMX)	Neck Length (LU)	Ball Radius (C)	Coating	Shank Type	Available	List Price

.0591	17905900A	18272	1.5mm	3mm	38mm	3mm		0.75mm	ALtima®	Straight	122.00	36.15
.0625	17906250A	18284	1/16	1/8	1-1/2	1/8		1/32	ALtima®	Straight	91.00	36.28
.0781	17907810A	18286	5/64	1/8	1-1/2	5/32		.0391	ALtima®	Straight	10.00	33.14
.0787	17907870A	18274	2mm	3mm	38mm	4mm		1mm	ALtima®	Straight	0.00	33.14
.0937	17909370A	18288	3/32	1/8	1-1/2	3/16		3/64	ALtima®	Straight	550.00	33.14
.0984	17909840A	18276	2.5mm	3mm	38mm	5mm		1.25mm	ALtima®	Straight	114.00	33.14
.1181	17911800A	18018	3mm	6mm	57mm	8mm		1.5mm	ALtima®	Straight	288.00	48.89
.1181	17911803A	18278	3mm	3mm	38mm	6mm		1.5mm	ALtima®	Straight	256.00	28.93
.1250	17912500A	18034	1/8	1/8	1-1/2	1/4		1/16	ALtima®	Straight	214.00	26.65
.1250	17912510A	18035	1/8	1/8	1-1/2	3/8		1/16	ALtima®	Straight	375.00	28.3
.1378	17913700A	18280	3.5mm	6mm	63mm	7mm		1.75mm	ALtima®	Straight	69.00	48.17
.1575	17915700A	18019	4mm	6mm	57mm	11mm		2mm	ALtima®	Straight	941.00	48.16
.1772	17917700A	18282	4.5mm	6mm	63mm	9mm		2.25mm	ALtima®	Straight	57.00	48.17
.1875	17918700A	18038	3/16	3/16	2	3/8		3/32	ALtima®	Straight	118.00	36.9
.1875	17918710A	18039	3/16	3/16	2	5/8		3/32	ALtima®	Straight	327.00	39.27
.1968	17919600A	18020	5mm	6mm	57mm	13mm		2.5mm	ALtima®	Straight	1016.00	48.7
.2362	17923600A	18021	6mm	6mm	57mm	13mm		3mm	ALtima®	Straight	584.00	48.05
.2362	17923600N1.000A	19966	6mm	6mm	57mm	13mm	1mm	3mm	ALtima®	Straight	2.00	63.71
.2500	17925000A	18042	1/4	1/4	2	3/8		1/8	ALtima®	Straight	156.00	45.02
.2500	17925010A	18043	1/4	1/4	2-1/2	3/4		1/8	ALtima®	Straight	381.00	48.05
.2500	17925020A	18063	1/4	1/4	4	1/2		1/8	ALtima®	Straight	167.00	77.26
.2500	17925020ACS	15421	1/4	1/4	4	1/2		1/8	ALtima®	Straight	6.00	81.64
.3125	17931200A	18045	5/16	5/16	2	1/2		5/32	ALtima®	Straight	50.00	61.73
.3125	17931210A	18046	5/16	5/16	2-1/2	13/16		5/32	ALtima®	Straight	0.00	65.82
.3150	17931500A	18022	8mm	8mm	63mm	19mm		4mm	ALtima®	Straight	407.00	59.64
.3750	17937500A	18048	3/8	3/8	2	1/2		3/16	ALtima®	Straight	113.00	74.24
.3750	17937510A	18049	3/8	3/8	2-1/2	7/8		3/16	ALtima®	Straight	473.00	79.05
.3750	17937520A	18064	3/8	3/8	4	9/16		3/16	ALtima®	Straight	21.00	105.43
.3750	17937510AW	77229	3/8	3/8	2-1/2	7/8		3/16	ALtima®	Weldon	0.00	83.45
.3937	17939300A	18023	10mm	10mm	72mm	22mm		5mm	ALtima®	Straight	686.00	97.72
.4724	17947200A	18024	12mm	12mm	83mm	26mm		6mm	ALtima®	Straight	167.00	119.92
.5000	17950000A	18054	1/2	1/2	2-1/2	5/8		1/4	ALtima®	Straight	46.00	121.52
.5000	17950010A	18055	1/2	1/2	3	1-1/4		1/4	ALtima®	Straight	130.00	129.34
.5000	17950020A	18065	1/2	1/2	5	5/8		1/4	ALtima®	Straight	39.00	162.48
.5000	17950010AW	18756	1/2	1/2	3	1-1/4		1/4	ALtima®	Weldon	5.00	139.44
.6250	17962510A	18058	5/8	5/8	3-1/2	1-1/4		5/16	ALtima®	Straight	270.00	244.25
.6250	17962520A	18066	5/8	5/8	6	3/4		5/16	ALtima®	Straight	20.00	290.14
.6250	17962510AW	17184	5/8	5/8	3-1/2	1-1/4		5/16	ALtima®	Weldon	0.00	251.39
.6299	17962900A	18059	16mm	16mm	92mm	32mm		8mm	ALtima®	Straight	65.00	244.25
.6299	17962900AW	15985	16mm	16mm	92mm	32mm		8mm	ALtima®	Weldon	0.00	251.39
.7500	17975010A	18060	3/4	3/4	4	1-1/2		3/8	ALtima®	Straight	13.00	358.97
.7500	17975020A	18067	3/4	3/4	6	1		3/8	ALtima®	Straight	38.00	417.86
.7500	17975010AW	77231	3/4	3/4	4	1-1/2		3/8	ALtima®	Weldon	0.00	370.49
.7500	17975020AW	75144	3/4	3/4	6	1		3/8	ALtima®	Weldon	0.00	429.38
1.0000	17910010A	18062	1	1	4	1-1/2		1/2	ALtima®	Straight	1.00	546.74
1.0000	17910020A	18068	1	1	6	1-1/4		1/2	ALtima®	Straight	9.00	655.76
