End Mills / 178

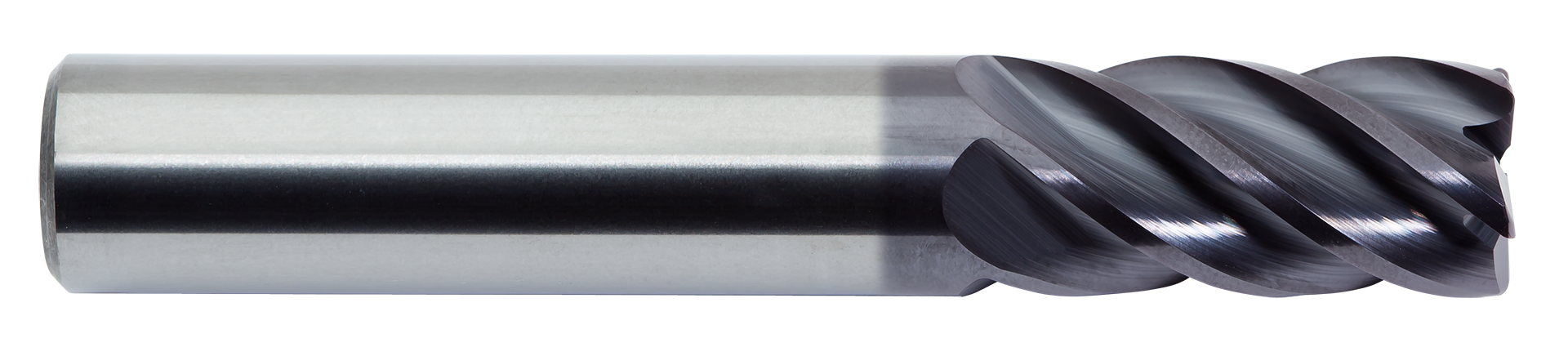

Solid Carbide TuffCut® XR 5 Flute End Mill
Designed for extreme productivity. Gain 20% or more in productivity over four flute styles. Smooth cutting action to eliminate vibration.
  • 5 Flute
  • Solid carbide
  • ALtima® coated, A=ALtima® (ALTiN) coated
  • Center cutting
  • Stub, standard and long flute lengths
  • 38° Helix angle
  • For roughing and finishing applications
  • Square end and corner radius options
  • Weldon shank flat options

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

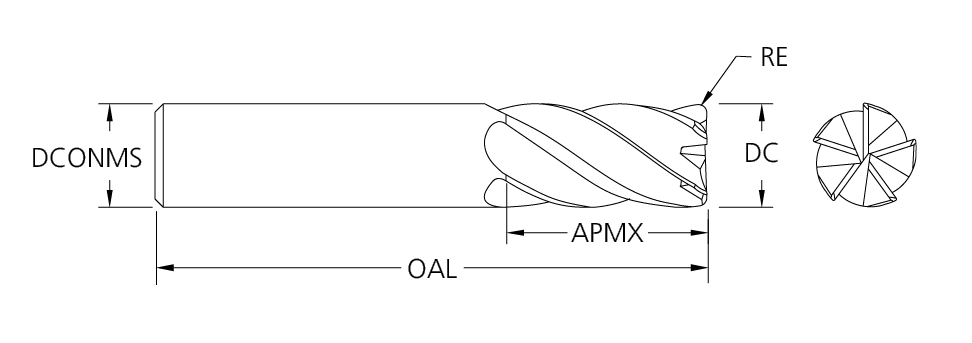

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) RE Coating Shank Type Available List Price
17800000A 99232 Set 1/4, 3/8, 1/2, 1/2 Corner Radius ALtima® ALtima® Straight 0.00 311.43
.1181 17811800A 17959 3mm 6mm 57mm 8mm ALtima® Straight 493.00 42.53
.1181 17811810A 17998 3mm 3mm 75mm 25mm ALtima® Straight 0.00 72.89
.1250 17812500A 17800 1/8 1/8 1-1/2 1/8 ALtima® Straight 281.00 22.24
.1250 17812510A 17801 1/8 1/8 1-1/2 3/8 ALtima® Straight 916.00 23.65
.1250 17812500AW 12768 1/8 1/8 1-1/2 1/8 ALtima® Weldon 0.00 26.64
.1250 17812510AW 13216 1/8 1/8 1-1/2 3/8 ALtima® Weldon 0.00 28.05
.1562 17815600A 17802 5/32 3/16 2 3/16 ALtima® Straight 4.00 31.47
.1562 17815610A 17803 5/32 3/16 2 7/16 ALtima® Straight 14.00 33.4
.1562 17815600AW 13218 5/32 3/16 2 3/16 ALtima® Weldon 0.00 35.86
.1562 17815610AW 13220 5/32 3/16 2 7/16 ALtima® Weldon 0.00 37.8
.1575 17815700A 17961 4mm 6mm 57mm 11mm ALtima® Straight 378.00 42.53
.1575 17815710A 17999 4mm 4mm 75mm 25mm ALtima® Straight 158.00 65.26
.1875 17818700A 17804 3/16 3/16 2 3/16 ALtima® Straight 45.00 30.79
.1875 17818710A 17805 3/16 3/16 2 7/16 ALtima® Straight 298.00 32.69
.1875 17818700AW 13222 3/16 3/16 2 3/16 ALtima® Weldon 0.00 35.19
.1875 17818710AW 13224 3/16 3/16 2 7/16 ALtima® Weldon 0.00 37.09
.1968 17819600A 17963 5mm 6mm 57mm 13mm ALtima® Straight 301.00 40.53
.1968 17819610A 18026 5mm 5mm 75mm 25mm ALtima® Straight 168.00 57.8
.2187 17821800A 17806 7/32 1/4 2 1/4 ALtima® Straight 37.00 40.88
.2187 17821810A 17807 7/32 1/4 2-1/2 7/16 ALtima® Straight 17.00 43.48
.2187 17821800AW 13226 7/32 1/4 2 1/4 ALtima® Weldon 0.00 45.27
.2187 17821810AW 13228 7/32 1/4 2-1/2 7/16 ALtima® Weldon 0.00 47.88
.2362 17823600A 17965 6mm 6mm 57mm 13mm ALtima® Straight 0.00 40.03
.2362 17823601A 17966 6mm 6mm 57mm 13mm 0.5mm ALtima® Straight 283.00 42.09
.2362 17823610A 18027 6mm 6mm 75mm 25mm ALtima® Straight 461.00 61.63
.2362 17823600AW 17294 6mm 6mm 57mm 13mm ALtima® Weldon 276.00 44.41
.2362 17823610AW 17316 6mm 6mm 75mm 25mm ALtima® Weldon 46.00 66.02
.2500 17825000A 17808 1/4 1/4 2 3/8 ALtima® Straight 326.00 37.59
.2500 17825002A 17829 1/4 1/4 2 3/8 0.015 ALtima® Straight 185.00 39.27
.2500 17825004A 17830 1/4 1/4 2 3/8 0.03 ALtima® Straight 37.00 39.27
.2500 17825010A 17809 1/4 1/4 2-1/2 5/8 ALtima® Straight 58.00 40.03
.2500 17825012A 17831 1/4 1/4 2-1/2 5/8 0.015 ALtima® Straight 72.00 41.74
.2500 17825014A 17832 1/4 1/4 2-1/2 5/8 0.03 ALtima® Straight 74.00 41.74
.2500 17825022A 18105 1/4 1/4 2-1/2 3/4 0.015 ALtima® Straight 145.00 41.74
.2500 17825000AW 10654 1/4 1/4 2 3/8 ALtima® Weldon 0.00 41.99
.2500 17825002AW 13232 1/4 1/4 2 3/8 0.015 ALtima® Weldon 0.00 43.67
.2500 17825004AW 13234 1/4 1/4 2 3/8 0.03 ALtima® Weldon 0.00 43.67
.2500 17825012AW 13239 1/4 1/4 2-1/2 5/8 0.015 ALtima® Weldon 4.00 46.12
.2500 17825014AW 13241 1/4 1/4 2-1/2 5/8 0.03 ALtima® Weldon 0.00 46.12
.2812 17828100A 17810 9/32 5/16 2-1/2 5/8 ALtima® Straight 11.00 54.78
.2812 17828102A 17835 9/32 5/16 2-1/2 5/8 0.015 ALtima® Straight 19.00 57.24
.2812 17828104A 17836 9/32 5/16 2-1/2 5/8 0.03 ALtima® Straight 27.00 57.24
.2812 17828100AW 13243 9/32 5/16 2-1/2 5/8 ALtima® Weldon 0.00 59.17
.2812 17828102AW 13245 9/32 5/16 2-1/2 5/8 0.015 ALtima® Weldon 0.00 61.64
.2812 17828104AW 13247 9/32 5/16 2-1/2 5/8 0.03 ALtima® Weldon 0.00 61.64
.3125 17831200A 17811 5/16 5/16 2 7/16 ALtima® Straight 57.00 51.47
.3125 17831202A 17837 5/16 5/16 2 7/16 0.015 ALtima® Straight 52.00 53.9
.3125 17831204A 17838 5/16 5/16 2 7/16 0.03 ALtima® Straight 80.00 53.9
.3125 17831210A 17812 5/16 5/16 2-1/2 13/16 ALtima® Straight 19.00 54.78
.3125 17831212A 17839 5/16 5/16 2-1/2 13/16 0.015 ALtima® Straight 6.00 57.24
.3125 17831214A 17840 5/16 5/16 2-1/2 13/16 0.03 ALtima® Straight 35.00 57.24
.3125 17831202AW 12713 5/16 5/16 2 7/16 0.015 ALtima® Weldon 0.00 58.29
.3125 17831200AW 13249 5/16 5/16 2 7/16 ALtima® Weldon 3.00 55.87
.3125 17831204AW 13253 5/16 5/16 2 7/16 0.03 ALtima® Weldon 0.00 58.29
.3125 17831212AW 13257 5/16 5/16 2-1/2 13/16 0.015 ALtima® Weldon 0.00 61.64
.3125 17831214AW 13259 5/16 5/16 2-1/2 13/16 0.03 ALtima® Weldon 0.00 61.64
.3150 17831500A 17968 8mm 8mm 63mm 19mm ALtima® Straight 342.00 49.59
.3150 17831501A 17969 8mm 8mm 63mm 19mm 0.5mm ALtima® Straight 180.00 52.17
.3150 17831510A 18028 8mm 8mm 75mm 30mm ALtima® Straight 169.00 81.67
.3150 17831500AW 14119 8mm 8mm 63mm 19mm ALtima® Weldon 151.00 53.98
.3150 17831510AW 17317 8mm 8mm 75mm 30mm ALtima® Weldon 44.00 86.06
.3438 17834300A 17813 11/32 3/8 2-1/2 13/16 ALtima® Straight 19.00 65.92
.3438 17834302A 17843 11/32 3/8 2-1/2 13/16 0.015 ALtima® Straight 18.00 69.22
.3438 17834304A 17844 11/32 3/8 2-1/2 13/16 0.03 ALtima® Straight 12.00 69.22
.3738 17834300AW 13261 11/32 3/8 2-1/2 13/16 ALtima® Weldon 0.00 70.32
.3738 17834302AW 13263 11/32 3/8 2-1/2 13/16 0.015 ALtima® Weldon 0.00 73.61
.3738 17834304AW 13265 11/32 3/8 2-1/2 13/16 0.03 ALtima® Weldon 0.00 73.61
.3750 17837500A 17814 3/8 3/8 2 1/2 ALtima® Straight 665.00 61.9
.3750 17837502A 17845 3/8 3/8 2 1/2 0.015 ALtima® Straight 141.00 65.06
.3750 17837504A 17846 3/8 3/8 2 1/2 0.03 ALtima® Straight 350.00 65.06
.3750 17837510A 17815 3/8 3/8 2-1/2 7/8 ALtima® Straight 102.00 65.92
.3750 17837512A 17847 3/8 3/8 2-1/2 7/8 0.015 ALtima® Straight 190.00 69.22
.3750 17837514A 17848 3/8 3/8 2-1/2 7/8 0.03 ALtima® Straight 67.00 69.22
.3750 17837512AW 13307 3/8 3/8 2-1/2 7/8 0.015 ALtima® Weldon 21.00 73.61
.3750 17837500AW 13267 3/8 3/8 2 1/2 ALtima® Weldon 6.00 66.3
.3750 17837510AW 13305 3/8 3/8 2-1/2 7/8 ALtima® Weldon 0.00 70.32
.3750 17837514AW 13309 3/8 3/8 2-1/2 7/8 0.03 ALtima® Weldon 0.00 73.61
.3750 17837504AW 13303 3/8 3/8 2 1/2 0.03 ALtima® Weldon 0.00 69.46
.3750 17837502AW 13301 3/8 3/8 2 1/2 0.015 ALtima® Weldon 1.00 69.46
.3750 17837512ACS 15430 3/8 3/8 2-1/2 7/8 0.015 ALtima® Straight 1.00 73.61
.3937 17839300A 17971 10mm 10mm 72mm 22mm ALtima® Straight 758.00 81.39
.3937 17839301A 17972 10mm 10mm 72mm 22mm 0.5mm ALtima® Straight 486.00 85.55
.3937 17839310A 18029 10mm 10mm 100mm 45mm ALtima® Straight 174.00 124.05
.3937 17839300AW 75137 10mm 10mm 72mm 22mm ALtima® Weldon 313.00 91.47
.3937 17839310AW 16065 10mm 10mm 100mm 45mm ALtima® Weldon 26.00 134.11
.4062 17840600A 17816 13/32 7/16 2-3/4 7/8 ALtima® Straight 52.00 84.86
.4062 17840602A 17853 13/32 7/16 2-3/4 7/8 0.015 ALtima® Straight 7.00 88.88
.4062 17840604A 17854 13/32 7/16 2-3/4 7/8 0.03 ALtima® Straight 32.00 88.88
.4062 17840600AW 13311 13/32 7/16 2-3/4 7/8 ALtima® Weldon 0.00 90.51
.4062 17840602AW 13313 13/32 7/16 2-3/4 7/8 0.015 ALtima® Weldon 0.00 94.53
.4062 17840604AW 13315 13/32 7/16 2-3/4 7/8 0.03 ALtima® Weldon 0.00 94.53
.4375 17843700A 17817 7/16 7/16 2-1/2 9/16 ALtima® Straight 36.00 79.84
.4375 17843702A 17855 7/16 7/16 2-1/2 9/16 0.015 ALtima® Straight 20.00 83.49
.4375 17843704A 17856 7/16 7/16 2-1/2 9/16 0.03 ALtima® Straight 75.00 83.49
.4375 17843710A 17818 7/16 7/16 2-3/4 1 ALtima® Straight 11.00 84.86
.4375 17843712A 17857 7/16 7/16 2-3/4 1 0.015 ALtima® Straight 8.00 88.88
.4375 17843714A 17858 7/16 7/16 2-3/4 1 0.03 ALtima® Straight 35.00 88.88
.4375 17843700AW 13317 7/16 7/16 2-1/2 9/16 ALtima® Weldon 0.00 85.48
.4375 17843702AW 13319 7/16 7/16 2-1/2 9/16 0.015 ALtima® Weldon 0.00 89.12
.4375 17843704AW 13321 7/16 7/16 2-1/2 9/16 0.03 ALtima® Weldon 0.00 89.12
.4375 17843712AW 13325 7/16 7/16 2-3/4 1 0.015 ALtima® Weldon 0.00 94.53
.4375 17843714AW 13327 7/16 7/16 2-3/4 1 0.03 ALtima® Weldon 0.00 94.53
.4688 17846800A 17819 15/32 1/2 3 1 ALtima® Straight 9.00 107.83
.4688 17846802A 17863 15/32 1/2 3 1 0.015 ALtima® Straight 14.00 113.23
.4688 17846804A 17864 15/32 1/2 3 1 0.03 ALtima® Straight 10.00 113.23
.4688 17846800AW 13329 15/32 1/2 3 1 ALtima® Weldon 0.00 113.49
.4688 17846802AW 13331 15/32 1/2 3 1 0.015 ALtima® Weldon 0.00 118.88
.4688 17846804AW 13333 15/32 1/2 3 1 0.03 ALtima® Weldon 0.00 118.88
.4724 17847200A 17974 12mm 12mm 83mm 26mm ALtima® Straight 550.00 99.83
.4724 17847210A 18030 12mm 12mm 150mm 75mm ALtima® Straight 151.00 165.65
.4724 17847202A 17975 12mm 12mm 83mm 26mm 0.75mm ALtima® Straight 306.00 104.87
.4724 17847200AW 19534 12mm 12mm 83mm 26mm ALtima® Weldon 198.00 109.9
.4724 17847210AW 19536 12mm 12mm 150mm 75mm ALtima® Weldon 29.00 175.72
.4724 17847202AW 20684 12mm 12mm 83mm 26mm 0.75mm ALtima® Weldon 22.00 114.97
.5000 17850000A 17820 1/2 1/2 2-1/2 5/8 ALtima® Straight 135.00 101.23
.5000 17850002A 17865 1/2 1/2 2-1/2 5/8 0.015 ALtima® Straight 61.00 106.43
.5000 17850004A 17866 1/2 1/2 2-1/2 5/8 0.03 ALtima® Straight 111.00 106.43
.5000 17850010A 17821 1/2 1/2 3 1 ALtima® Straight 156.00 107.83
.5000 17850012A 17867 1/2 1/2 3 1 0.015 ALtima® Straight 199.00 113.23
.5000 17850014A 17868 1/2 1/2 3 1 0.03 ALtima® Straight 419.00 113.23
.5000 17850015A 17869 1/2 1/2 3 1 0.045 ALtima® Straight 20.00 113.23
.5000 17850016A 17913 1/2 1/2 3 1 0.06 ALtima® Straight 88.00 113.23
.5000 17850017A 17914 1/2 1/2 3 1 0.09 ALtima® Straight 8.00 113.23
.5000 17850018A 17915 1/2 1/2 3 1 0.125 ALtima® Straight 22.00 113.23
.5000 17850004AW 13339 1/2 1/2 2-1/2 5/8 0.03 ALtima® Weldon 29.00 112.1
.5000 17850010AW 13341 1/2 1/2 3 1 ALtima® Weldon 1.00 113.49
.5000 17850014AW 13345 1/2 1/2 3 1 0.03 ALtima® Weldon 22.00 118.88
.5000 17850000AW 10655 1/2 1/2 2-1/2 5/8 ALtima® Weldon 17.00 106.87
.5000 17850002AW 13337 1/2 1/2 2-1/2 5/8 0.015 ALtima® Weldon 16.00 112.1
.5000 17850012AW 13343 1/2 1/2 3 1 0.015 ALtima® Weldon 7.00 118.88
.5000 17850016AW 13349 1/2 1/2 3 1 0.06 ALtima® Weldon 13.00 118.88
.5000 17850015AW 13347 1/2 1/2 3 1 0.045 ALtima® Weldon 16.00 118.88
.5000 17850017AW 13351 1/2 1/2 3 1 0.09 ALtima® Weldon 0.00 118.88
.5000 17850018AW 13353 1/2 1/2 3 1 0.125 ALtima® Weldon 1.00 118.88
.5512 17855100A 17977 14mm 14mm 83mm 26mm ALtima® Straight 88.00 154.25
.5512 17855102A 17978 14mm 14mm 83mm 26mm 0.75mm ALtima® Straight 11.00 162.1
.5512 17855100AW 75139 14mm 14mm 83mm 26mm ALtima® Weldon 0.00 165.77
.5625 17856200A 17822 9/16 9/16 3-1/2 1-1/8 ALtima® Straight 16.00 184.34
.5625 17856202A 17875 9/16 9/16 3-1/2 1-1/8 0.015 ALtima® Straight 4.00 191.29
.5625 17856204A 17876 9/16 9/16 3-1/2 1-1/8 0.03 ALtima® Straight 21.00 191.29
.5625 17856200AW 13355 9/16 9/16 3-1/2 1-1/8 ALtima® Weldon 0.00 191.48
.5625 17856202AW 13357 9/16 9/16 3-1/2 1-1/8 0.015 ALtima® Weldon 1.00 198.43
.5625 17856204AW 13359 9/16 9/16 3-1/2 1-1/8 0.03 ALtima® Weldon 2.00 198.43
.6250 17862500A 17823 5/8 5/8 3 3/4 ALtima® Straight 31.00 191.29
.6250 17862502A 18006 5/8 5/8 3 3/4 0.015 ALtima® Straight 32.00 201.73
.6250 17862504A 17877 5/8 5/8 3 3/4 0.03 ALtima® Straight 38.00 201.73
.6250 17862505A 17878 5/8 5/8 3 3/4 0.045 ALtima® Straight 10.00 201.73
.6250 17862510A 17824 5/8 5/8 3-1/2 1-1/4 ALtima® Straight 32.00 203.49
.6250 17862512A 18007 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Straight 17.00 213.9
.6250 17862514A 17879 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Straight 61.00 213.9
.6250 17862515A 17880 5/8 5/8 3-1/2 1-1/4 0.045 ALtima® Straight 22.00 213.9
.6250 17862516A 17916 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Straight 13.00 213.9
.6250 17862517A 17917 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Straight 25.00 213.9
.6250 17862518A 17918 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Straight 56.00 213.9
.6250 17862510AW 13369 5/8 5/8 3-1/2 1-1/4 ALtima® Weldon 6.00 210.62
.6250 17862514AW 13373 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Weldon 11.00 221.04
.6250 17862505AW 13367 5/8 5/8 3 3/4 0.045 ALtima® Weldon 0.00 208.87
.6250 17862512AW 13371 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Weldon 3.00 221.04
.6250 17862516AW 13377 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Weldon 3.00 221.04
.6250 17862500AW 13361 5/8 5/8 3 3/4 ALtima® Weldon 0.00 198.43
.6250 17862502AW 13363 5/8 5/8 3 3/4 0.015 ALtima® Weldon 2.00 208.87
.6250 17862504AW 13365 5/8 5/8 3 3/4 0.03 ALtima® Weldon 6.00 208.87
.6250 17862515AW 13375 5/8 5/8 3-1/2 1-1/4 0.045 ALtima® Weldon 0.00 221.04
.6250 17862517AW 13379 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Weldon 0.00 221.04
.6250 17862518AW 13381 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Weldon 3.00 221.04
.6299 17862900A 17981 16mm 16mm 92mm 32mm ALtima® Straight 208.00 172.71
.6299 17862903A 17982 16mm 16mm 92mm 32mm 1mm ALtima® Straight 208.00 182.6
.6299 17862910A 18031 16mm 16mm 150mm 75mm ALtima® Straight 102.00 279.94
.6299 17862900AW 75141 16mm 16mm 92mm 32mm ALtima® Weldon 28.00 184.23
.6299 17862903AW 75142 16mm 16mm 92mm 32mm 1mm ALtima® Weldon 22.00 194.14
.6299 17862910AW 19537 16mm 16mm 150mm 75mm ALtima® Weldon 30.00 291.44
.7087 17870800A 17983 18mm 18mm 92mm 32mm ALtima® Straight 10.00 255.64
.7087 17870803A 17984 18mm 18mm 92mm 32mm 1mm ALtima® Straight 12.00 269.59
.7500 17875000A 17825 3/4 3/4 3 1 ALtima® Straight 12.00 280.01
.7500 17875002A 18011 3/4 3/4 3 1 0.015 ALtima® Straight 29.00 295.64
.7500 17875004A 17887 3/4 3/4 3 1 0.03 ALtima® Straight 12.00 295.64
.7500 17875005A 17888 3/4 3/4 3 1 0.045 ALtima® Straight 7.00 295.64
.7500 17875010A 17826 3/4 3/4 4 1-1/2 ALtima® Straight 69.00 299.15
.7500 17875012A 18012 3/4 3/4 4 1-1/2 0.015 ALtima® Straight 34.00 314.8
.7500 17875014A 17889 3/4 3/4 4 1-1/2 0.03 ALtima® Straight 120.00 314.8
.7500 17875015A 17890 3/4 3/4 4 1-1/2 0.045 ALtima® Straight 15.00 314.8
.7500 17875016A 17919 3/4 3/4 4 1-1/2 0.06 ALtima® Straight 59.00 314.8
.7500 17875017A 17920 3/4 3/4 4 1-1/2 0.09 ALtima® Straight 21.00 314.8
.7500 17875018A 17921 3/4 3/4 4 1-1/2 0.125 ALtima® Straight 46.00 314.8
.7500 17875014AW 13396 3/4 3/4 4 1-1/2 0.03 ALtima® Weldon 145.00 321.92
.7500 17875000AW 10656 3/4 3/4 3 1 ALtima® Weldon 3.00 287.15
.7500 17875010AW 13394 3/4 3/4 4 1-1/2 ALtima® Weldon 14.00 306.28
.7500 17875012AW 13395 3/4 3/4 4 1-1/2 0.015 ALtima® Weldon 3.00 321.92
.7500 17875002AW 13385 3/4 3/4 3 1 0.015 ALtima® Weldon 7.00 302.78
.7500 17875005AW 13389 3/4 3/4 3 1 0.045 ALtima® Weldon 0.00 302.78
.7500 17875015AW 13397 3/4 3/4 4 1-1/2 0.045 ALtima® Weldon 2.00 321.92
.7500 17875017AW 13399 3/4 3/4 4 1-1/2 0.09 ALtima® Weldon 0.00 321.92
.7500 17875018AW 13402 3/4 3/4 4 1-1/2 0.125 ALtima® Weldon 37.00 321.92
.7500 17875004AW 13387 3/4 3/4 3 1 0.03 ALtima® Weldon 3.00 302.78
.7500 17875016AW 13398 3/4 3/4 4 1-1/2 0.06 ALtima® Weldon 1.00 321.92
.7874 17878700A 17986 20mm 20mm 104mm 38mm ALtima® Straight 29.00 354.79
.7874 17878703A 17987 20mm 20mm 104mm 38mm 1mm ALtima® Straight 21.00 373.95
.7874 17878710A 18032 20mm 20mm 150mm 75mm ALtima® Straight 51.00 531.67
.7874 17878703AW 75143 20mm 20mm 104mm 38mm 1mm ALtima® Weldon 5.00 385.46
.7874 17878710AW 15828 20mm 20mm 150mm 75mm ALtima® Weldon 72.00 543.2
.7874 17878700AW 19535 20mm 20mm 104mm 38mm ALtima® Weldon 67.00 366.31
.9843 17898400A 17988 25mm 25mm 104mm 38mm ALtima® Straight 6.00 455.67
.9843 17898403A 17989 25mm 25mm 104mm 38mm 1mm ALtima® Straight 11.00 480
1.0000 17810000A 17827 1 1 4 1 ALtima® Straight 5.00 427.83
1.0000 17810010A 17828 1 1 4 1-1/2 ALtima® Straight 97.00 455.67
1.0000 17810012A 18015 1 1 4 1-1/2 0.015 ALtima® Straight 17.00 476.54
1.0000 17810014A 17895 1 1 4 1-1/2 0.03 ALtima® Straight 29.00 476.54
1.0000 17810015A 17896 1 1 4 1-1/2 0.045 ALtima® Straight 25.00 476.54
1.0000 17810016A 17922 1 1 4 1-1/2 0.06 ALtima® Straight 17.00 476.54
1.0000 17810017A 17923 1 1 4 1-1/2 0.09 ALtima® Straight 3.00 476.54
1.0000 17810018A 17924 1 1 4 1-1/2 0.125 ALtima® Straight 10.00 476.54
1.0000 17810010AW 13404 1 1 4 1-1/2 ALtima® Weldon 0.00 464.17
1.0000 17810000AW 13403 1 1 4 1 ALtima® Weldon 0.00 436.35
1.0000 17810015AW 13407 1 1 4 1-1/2 0.045 ALtima® Weldon 0.00 485.05
1.0000 17810016AW 13408 1 1 4 1-1/2 0.06 ALtima® Weldon 0.00 485.05
1.0000 17810017AW 13420 1 1 4 1-1/2 0.09 ALtima® Weldon 0.00 485.05
1.0000 17810018AW 13421 1 1 4 1-1/2 0.125 ALtima® Weldon 3.00 485.05
1.0000 17810012AW 13405 1 1 4 1-1/2 0.015 ALtima® Weldon 2.00 485.05
1.0000 17810014AW 13406 1 1 4 1-1/2 0.03 ALtima® Weldon 0.00 485.05
