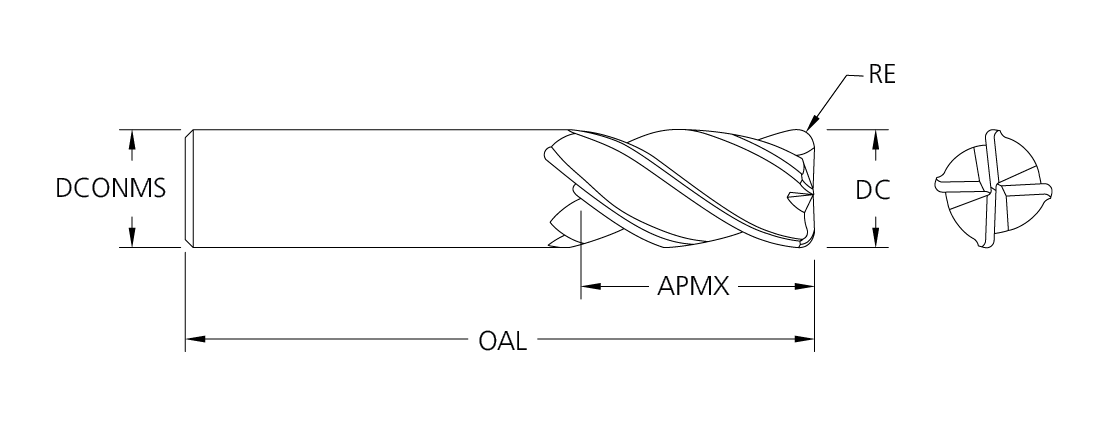

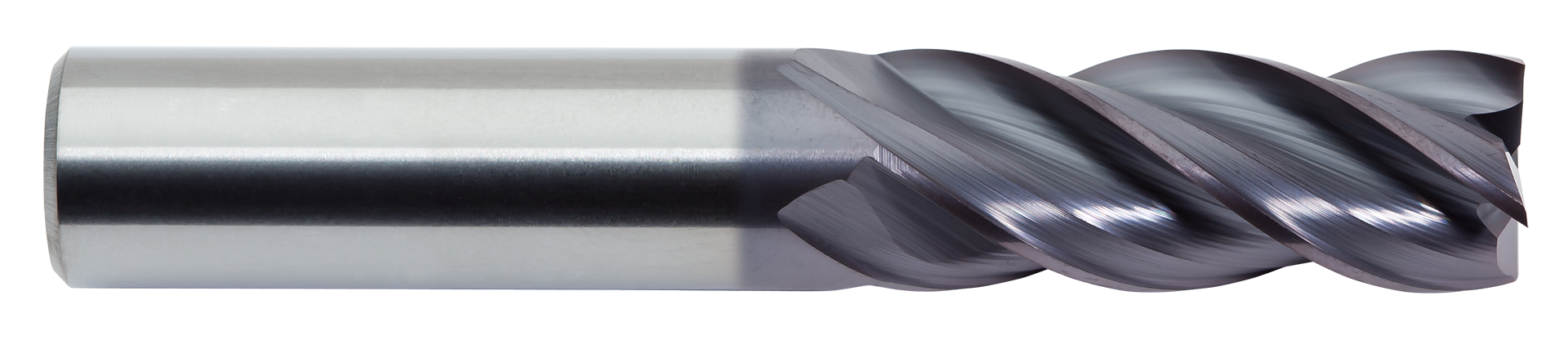

product photo product drawing

End Mills / 177

TuffCut® XR 4 Flute End Mill
Designed for EXTREME productivity.  Unique flute geometry reduces harmonics at increased feeds and speeds.
  • 4 Flute
  • Solid carbide
  • ALtima® Coated, A=ALtima® (ALTiN) coated
  • Center cutting
  • Available in stub and standard flute lengths
  • 35°/38° Variable helix angle
  • for roughing and finishing applications
  • Square end with corner radius options
  • Weldon shank flat options

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Super-alloys and titanium

Applications

  • High Efficiency Milling
  • Slotting
  • Traditional Roughing
  • Finishing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) RE Coating Shank Type Available List Price
17700000A 99231 Set 1/4, 3/8, 1/2, 1/2 Corner Radius ALtima® ALtima® Straight 0.00 311.43
.0591 17705900A 17680 1.5mm 3mm 38mm 3mm ALtima® Straight 362.00 34.32
.0625 17706250A 17692 1/16 1/8 1-1/2 1/8 ALtima® Straight 770.00 34.32
.0781 17707810A 17694 5/64 1/8 1-1/2 5/32 ALtima® Straight 8.00 31.31
.0787 17707870A 17682 2mm 3mm 38mm 4mm ALtima® Straight 867.00 31.31
.0937 17709370A 17696 3/32 1/8 1-1/2 3/16 ALtima® Straight 954.00 31.31
.0984 17709840A 17684 2.5mm 3mm 38mm 5mm ALtima® Straight 2817.00 31.31
.1181 17711800A 17928 3mm 6mm 57mm 8mm ALtima® Straight 677.00 42.53
.1181 17711801A 17783 3mm 6mm 57mm 8mm 0.5mm ALtima® Straight 301.00 48.89
.1181 17711803A 17686 3mm 3mm 38mm 6mm ALtima® Straight 198.00 27.24
.1181 17711808A 17929 3mm 6mm 57mm 8mm 0.25mm ALtima® Straight 120.00 48.89
.1181 17711801AW 18654 3mm 6mm 57mm 8mm 0.5mm ALtima® Weldon 248.00 53.26
.1250 17712500A 17700 1/8 1/8 1-1/2 1/8 ALtima® Straight 488.00 22.24
.1250 17712502A 17729 1/8 1/8 1-1/2 1/8 0.015 ALtima® Straight 189.00 23.31
.1250 17712510A 17701 1/8 1/8 1-1/2 3/8 ALtima® Straight 944.00 23.65
.1250 17712512A 17730 1/8 1/8 1-1/2 3/8 0.015 ALtima® Straight 257.00 24.69
.1378 17713700A 17688 3.5mm 6mm 57mm 7mm ALtima® Straight 669.00 42.53
.1562 17715600A 17702 5/32 3/16 2 3/16 ALtima® Straight 83.00 31.47
.1562 17715602A 17731 5/32 3/16 2 3/16 0.015 ALtima® Straight 52.00 33.04
.1562 17715610A 17703 5/32 3/16 2 7/16 ALtima® Straight 41.00 33.4
.1562 17715612A 17732 5/32 3/16 2 7/16 0.015 ALtima® Straight 339.00 34.98
.1575 17715700A 17930 4mm 6mm 57mm 11mm ALtima® Straight 711.00 42.53
.1575 17715701A 17784 4mm 6mm 57mm 11mm 0.5mm ALtima® Straight 422.00 48.89
.1575 17715708A 17931 4mm 6mm 57mm 11mm 0.25mm ALtima® Straight 275.00 48.89
.1772 17717700A 17690 4.5mm 6mm 57mm 9mm ALtima® Straight 219.00 42.53
.1875 17718700A 17704 3/16 3/16 2 3/16 ALtima® Straight 602.00 30.79
.1875 17718702A 17733 3/16 3/16 2 3/16 0.015 ALtima® Straight 151.00 32.16
.1875 17718704A 17734 3/16 3/16 2 3/16 0.03 ALtima® Straight 144.00 32.16
.1875 17718710A 17705 3/16 3/16 2 7/16 ALtima® Straight 371.00 32.69
.1875 17718712A 17735 3/16 3/16 2 7/16 0.015 ALtima® Straight 282.00 34.27
.1875 17718714A 17736 3/16 3/16 2 7/16 0.03 ALtima® Straight 92.00 34.27
.1875 17718710AW 58059 3/16 3/16 2 7/16 ALtima® Weldon 0.00 37.09
.1875 17718712AW 75113 3/16 3/16 2 7/16 0.015 ALtima® Weldon 1.00 44.33
.1968 17719600A 17932 5mm 6mm 57mm 13mm ALtima® Straight 1016.00 40.53
.1968 17719601A 17785 5mm 6mm 57mm 13mm 0.5mm ALtima® Straight 37.00 42.6
.1968 17719608A 17933 5mm 6mm 57mm 13mm 0.25mm ALtima® Straight 335.00 42.6
.2187 17721800A 17706 7/32 1/4 2 1/4 ALtima® Straight 34.00 40.88
.2187 17721802A 17737 7/32 1/4 2 1/4 0.015 ALtima® Straight 21.00 42.77
.2187 17721804A 17738 7/32 1/4 2 1/4 0.03 ALtima® Straight 102.00 42.77
.2187 17721810A 17707 7/32 1/4 2-1/2 7/16 ALtima® Straight 39.00 43.48
.2187 17721812A 17739 7/32 1/4 2-1/2 7/16 0.015 ALtima® Straight 161.00 45.4
.2187 17721814A 17740 7/32 1/4 2-1/2 7/16 0.03 ALtima® Straight 199.00 45.4
.2362 17723600A 17934 6mm 6mm 57mm 13mm ALtima® Straight 1344.00 40.03
.2362 17723601A 17935 6mm 6mm 57mm 13mm 0.5mm ALtima® Straight 237.00 42.09
.2362 17723603A 17787 6mm 6mm 57mm 13mm 1mm ALtima® Straight 373.00 42.09
.2362 17723604A 17788 6mm 6mm 57mm 13mm 1.5mm ALtima® Straight 286.00 42.09
.2362 17723605A 18070 6mm 6mm 57mm 13mm 2mm ALtima® Straight 112.00 42.09
.2362 17723608A 17786 6mm 6mm 57mm 13mm 0.25mm ALtima® Straight 431.00 42.09
.2362 17723600AW 19533 6mm 6mm 57mm 13mm ALtima® Weldon 50.00 44.41
.2362 17723603AW 19566 6mm 6mm 57mm 13mm ALtima® Weldon 1.00 46.48
.2500 17725000A 17708 1/4 1/4 2 1/4 ALtima® Straight 130.00 37.59
.2500 17725002A 17741 1/4 1/4 2 1/4 0.015 ALtima® Straight 63.00 39.27
.2500 17725004A 17742 1/4 1/4 2 1/4 0.03 ALtima® Straight 37.00 39.27
.2500 17725010A 17709 1/4 1/4 2-1/2 1/2 ALtima® Straight 516.00 40.03
.2500 17725012A 17743 1/4 1/4 2-1/2 1/2 0.015 ALtima® Straight 370.00 41.74
.2500 17725014A 17744 1/4 1/4 2-1/2 1/2 0.03 ALtima® Straight 349.00 41.74
.2500 17725010AW 59002 1/4 1/4 2-1/2 1/2 ALtima® Weldon 0.00 50.08
.2500 17725000AW 77224 1/4 1/4 2 1/4 ALtima® Weldon 15.00 47.66
.2500 17725012AW 75114 1/4 1/4 2-1/2 1/2 0.015 ALtima® Weldon 0.00 51.83
.2812 17728100A 17710 9/32 5/16 2-1/2 5/8 ALtima® Straight 199.00 54.78
.2812 17728102A 17745 9/32 5/16 2-1/2 5/8 0.015 ALtima® Straight 83.00 57.24
.2812 17728104A 17746 9/32 5/16 2-1/2 5/8 0.03 ALtima® Straight 86.00 57.24
.3125 17731200A 17711 5/16 5/16 2 5/16 ALtima® Straight 161.00 51.47
.3125 17731202A 17747 5/16 5/16 2 5/16 0.015 ALtima® Straight 77.00 53.9
.3125 17731204A 17748 5/16 5/16 2 5/16 0.03 ALtima® Straight 143.00 53.9
.3125 17731210A 17712 5/16 5/16 2-1/2 13/16 ALtima® Straight 364.00 54.78
.3125 17731212A 17749 5/16 5/16 2-1/2 13/16 0.015 ALtima® Straight 64.00 57.24
.3125 17731214A 17750 5/16 5/16 2-1/2 13/16 0.03 ALtima® Straight 104.00 57.24
.3125 17731210AW 58049 5/16 5/16 2-1/2 13/16 ALtima® Weldon 3.00 64.87
.3125 17731212AW 58050 5/16 5/16 2-1/2 13/16 0.015 ALtima® Weldon 1.00 67.31
.3125 17731200AW 77226 5/16 5/16 2 5/16 ALtima® Weldon 72.00 61.58
.3125 17731202AW 77227 5/16 5/16 2 5/16 0.015 ALtima® Weldon 97.00 64.01
.3150 17731500A 17937 8mm 8mm 63mm 19mm ALtima® Straight 2174.00 49.59
.3150 17731501A 17938 8mm 8mm 63mm 19mm 0.5mm ALtima® Straight 770.00 52.17
.3150 17731503A 17789 8mm 8mm 63mm 19mm 1mm ALtima® Straight 582.00 52.17
.3150 17731504A 17790 8mm 8mm 63mm 19mm 1.5mm ALtima® Straight 81.00 52.17
.3150 17731505A 17791 8mm 8mm 63mm 19mm 2mm ALtima® Straight 584.00 52.17
.3150 17731507A 18072 8mm 8mm 63mm 19mm 3mm ALtima® Straight 340.00 52.17
.3150 17731500AW 15826 8mm 8mm 63mm 19mm ALtima® Weldon 147.00 53.94
.3150 17731503AW 20111 8mm 8mm 63mm 19mm 1mm ALtima® Weldon 52.00 56.56
.3438 17734300A 17713 11/32 3/8 2-1/2 13/16 ALtima® Straight 12.00 65.92
.3438 17734302A 17751 11/32 3/8 2-1/2 13/16 0.015 ALtima® Straight 26.00 69.22
.3438 17734304A 17752 11/32 3/8 2-1/2 13/16 0.03 ALtima® Straight 22.00 69.22
.3750 17737500A 17714 3/8 3/8 2 3/8 ALtima® Straight 179.00 61.9
.3750 17737502A 17753 3/8 3/8 2 3/8 0.015 ALtima® Straight 83.00 65.06
.3750 17737504A 17754 3/8 3/8 2 3/8 0.03 ALtima® Straight 229.00 65.06
.3750 17737510A 17715 3/8 3/8 2-1/2 7/8 ALtima® Straight 577.00 65.92
.3750 17737512A 17755 3/8 3/8 2-1/2 7/8 0.015 ALtima® Straight 369.00 69.22
.3750 17737514A 17756 3/8 3/8 2-1/2 7/8 0.03 ALtima® Straight 115.00 69.22
.3750 17737510AW 58034 3/8 3/8 2-1/2 7/8 ALtima® Weldon 11.00 76
.3750 17737512AW 58035 3/8 3/8 2-1/2 7/8 0.015 ALtima® Weldon 26.00 79.3
.3750 17737514AW 59003 3/8 3/8 2-1/2 7/8 0.03 ALtima® Weldon 0.00 79.3
.3750 17737500AW 75115 3/8 3/8 2 3/8 ALtima® Weldon 19.00 71.98
.3937 17739300A 17940 10mm 10mm 72mm 22mm ALtima® Straight 1462.00 81.39
.3937 17739301A 17941 10mm 10mm 72mm 22mm 0.5mm ALtima® Straight 472.00 85.55
.3937 17739303A 17792 10mm 10mm 72mm 22mm 1mm ALtima® Straight 430.00 85.55
.3937 17739304A 17793 10mm 10mm 72mm 22mm 1.5mm ALtima® Straight 172.00 85.55
.3937 17739305A 17794 10mm 10mm 72mm 22mm 2mm ALtima® Straight 489.00 85.55
.3937 17739307A 96603 10mm 10mm 72mm 22mm 3mm ALtima® Straight 439.00 85.55
.3937 17739300AW 75116 10mm 10mm 72mm 22mm ALtima® Weldon 40.00 85.76
.3937 17739303AW 75117 10mm 10mm 72mm 22mm 1mm ALtima® Weldon 4.00 89.94
.3937 17739304AW 75118 10mm 10mm 72mm 22mm 1.5mm ALtima® Weldon 119.00 89.94
.3937 17739305AW 75119 10mm 10mm 72mm 22mm 2mm ALtima® Weldon 0.00 89.94
.3937 17739307AW 75120 10mm 10mm 72mm 22mm 3mm ALtima® Weldon 0.00 89.94
.4062 17740600A 17716 13/32 7/16 2-3/4 15/16 ALtima® Straight 27.00 84.86
.4062 17740602A 17757 13/32 7/16 2-3/4 15/16 0.015 ALtima® Straight 53.00 88.88
.4062 17740604A 17758 13/32 7/16 2-3/4 15/16 0.03 ALtima® Straight 5.00 88.88
.4375 17743700A 17717 7/16 7/16 2-1/2 7/16 ALtima® Straight 12.00 79.84
.4375 17743702A 17759 7/16 7/16 2-1/2 7/16 0.015 ALtima® Straight 26.00 83.49
.4375 17743704A 17760 7/16 7/16 2-1/2 7/16 0.03 ALtima® Straight 94.00 83.49
.4375 17743710A 17718 7/16 7/16 2-3/4 1 ALtima® Straight 89.00 84.86
.4375 17743712A 17761 7/16 7/16 2-3/4 1 0.015 ALtima® Straight 30.00 88.88
.4375 17743714A 17762 7/16 7/16 2-3/4 1 0.03 ALtima® Straight 43.00 88.88
.4375 17743710AW 58036 7/16 7/16 2-3/4 1 ALtima® Weldon 0.00 94.93
.4375 17743712AW 58037 7/16 7/16 2-3/4 1 0.015 ALtima® Weldon 0.00 98.96
.4688 17746800A 17719 15/32 1/2 3 1 ALtima® Straight 11.00 107.83
.4688 17746802A 17763 15/32 1/2 3 1 0.015 ALtima® Straight 8.00 113.23
.4688 17746804A 17764 15/32 1/2 3 1 0.03 ALtima® Straight 3.00 113.23
.4724 17747200A 17943 12mm 12mm 83mm 26mm ALtima® Straight 934.00 99.83
.4724 17747202A 17944 12mm 12mm 83mm 26mm 0.75mm ALtima® Straight 465.00 104.87
.4724 17747203A 17796 12mm 12mm 83mm 26mm 1mm ALtima® Straight 205.00 104.87
.4724 17747204A 17797 12mm 12mm 83mm 26mm 1.5mm ALtima® Straight 214.00 104.87
.4724 17747205A 17798 12mm 12mm 83mm 26mm 2mm ALtima® Straight 268.00 104.87
.4724 17747206A 18074 12mm 12mm 83mm 26mm 2.5mm ALtima® Straight 158.00 104.87
.4724 17747207A 96506 12mm 12mm 83mm 26mm 3mm ALtima® Straight 434.00 104.87
.4724 17747209A 18076 12mm 12mm 83mm 26mm 4mm ALtima® Straight 330.00 104.87
.4724 17747201A 17795 12mm 12mm 83mm 26mm 0.5mm ALtima® Straight 755.00 104.87
.4724 17747200AW 75121 12mm 12mm 83mm 26mm ALtima® Weldon 62.00 105.48
.4724 17747203AW 75122 12mm 12mm 83mm 26mm 1mm ALtima® Weldon 12.00 110.5
.4724 17747204AW 75123 12mm 12mm 83mm 26mm 1.5mm ALtima® Weldon 0.00 110.5
.4724 17747205AW 75124 12mm 12mm 83mm 26mm 2mm ALtima® Weldon 0.00 110.5
.4724 17747207AW 75125 12mm 12mm 83mm 26mm 3mm ALtima® Weldon 0.00 110.5
.4724 17747201AW 14992 12mm 12mm 83mm 26mm 0.5mm ALtima® Weldon 18.00 110.5
.4724 17747202AW 14991 12mm 12mm 83mm 26mm 0.75mm ALtima® Weldon 14.00 110.5
.5000 17750000A 17720 1/2 1/2 2-1/2 1/2 ALtima® Straight 165.00 101.23
.5000 17750002A 17765 1/2 1/2 2-1/2 1/2 0.015 ALtima® Straight 68.00 106.43
.5000 17750004A 17766 1/2 1/2 2-1/2 1/2 0.03 ALtima® Straight 305.00 106.43
.5000 17750010A 17721 1/2 1/2 3 1 ALtima® Straight 353.00 107.83
.5000 17750012A 17767 1/2 1/2 3 1 0.015 ALtima® Straight 246.00 113.23
.5000 17750014A 17768 1/2 1/2 3 1 0.03 ALtima® Straight 372.00 113.23
.5000 17750016A 17901 1/2 1/2 3 1 0.06 ALtima® Straight 336.00 113.23
.5000 17750017A 17902 1/2 1/2 3 1 0.09 ALtima® Straight 18.00 113.23
.5000 17750018A 17903 1/2 1/2 3 1 0.125 ALtima® Straight 92.00 113.23
.5000 17750020A 18094 1/2 1/2 3 1-1/4 ALtima® Straight 429.00 113.23
.5000 17750022A 18095 1/2 1/2 3 1-1/4 0.015 ALtima® Straight 124.00 118.95
.5000 17750024A 18096 1/2 1/2 3 1-1/4 0.03 ALtima® Straight 163.00 118.95
.5000 17750026A 18097 1/2 1/2 3 1-1/4 0.06 ALtima® Straight 46.00 118.95
.5000 17750027A 18098 1/2 1/2 3 1-1/4 0.09 ALtima® Straight 15.00 118.95
.5000 17750028A 18099 1/2 1/2 3 1-1/4 0.125 ALtima® Straight 35.00 118.95
.5000 17750010AW 58038 1/2 1/2 3 1 ALtima® Weldon 49.00 113.49
.5000 17750014AW 58039 1/2 1/2 3 1 0.03 ALtima® Weldon 49.00 118.88
.5000 17750020AW 58056 1/2 1/2 3 1-1/4 ALtima® Weldon 140.00 118.88
.5000 17750024AW 58051 1/2 1/2 3 1-1/4 0.03 ALtima® Weldon 5.00 124.61
.5000 17750026AW 12610 1/2 1/2 3 1-1/4 0.06 ALtima® Weldon 1.00 124.61
.5000 17750000AW 13166 1/2 1/2 2-1/2 1/2 ALtima® Weldon 19.00 106.87
.5000 17750002AW 13167 1/2 1/2 2-1/2 1/2 0.015 ALtima® Weldon 4.00 112.1
.5000 17750004AW 13168 1/2 1/2 2-1/2 1/2 0.03 ALtima® Weldon 23.00 112.1
.5000 17750017AW 13170 1/2 1/2 3 1 0.09 ALtima® Weldon 62.00 118.88
.5000 17750018AW 13171 1/2 1/2 3 1 0.125 ALtima® Weldon 21.00 118.88
.5000 17750022AW 13172 1/2 1/2 3 1-1/4 0.015 ALtima® Weldon 174.00 124.61
.5000 17750027AW 13173 1/2 1/2 3 1-1/4 0.09 ALtima® Weldon 0.00 124.61
.5000 17750028AW 13174 1/2 1/2 3 1-1/4 0.125 ALtima® Weldon 12.00 124.61
.5000 17750012AW 13169 1/2 1/2 3 1 0.015 ALtima® Weldon 6.00 118.88
.5000 17750016AW 58061 1/2 1/2 3 1 0.06 ALtima® Weldon 3.00 118.88
.5000 17750012ACS 15473 1/2 1/2 3 1 0.015 ALtima® Straight 1.00 118.88
.5000 177CB50024A 20060 1/2 1/2 3 1-1/4 0.03 ALtima® Straight 0.00 122.72
.5512 17755100A 17946 14mm 14mm 83mm 26mm ALtima® Straight 46.00 154.25
.5512 17755102A 17947 14mm 14mm 83mm 26mm 0.75mm ALtima® Straight 94.00 162.1
.5512 17755100AW 75126 14mm 14mm 83mm 26mm ALtima® Weldon 4.00 161.4
.5512 17755102AW 16292 14mm 14mm 83mm 26mm 0.75mm ALtima® Weldon 19.00 169.23
.5625 17756200A 17722 9/16 9/16 3-1/2 1-1/8 ALtima® Straight 4.00 184.34
.5625 17756202A 17769 9/16 9/16 3-1/2 1-1/8 0.015 ALtima® Straight 17.00 191.29
.5625 17756204A 17770 9/16 9/16 3-1/2 1-1/8 0.03 ALtima® Straight 60.00 191.29
.6250 17762500A 17723 5/8 5/8 3 5/8 ALtima® Straight 30.00 191.29
.6250 17762502A 18000 5/8 5/8 3 5/8 0.015 ALtima® Straight 22.00 201.73
.6250 17762504A 17771 5/8 5/8 3 5/8 0.03 ALtima® Straight 29.00 201.73
.6250 17762505A 17772 5/8 5/8 3 5/8 0.045 ALtima® Straight 27.00 201.73
.6250 17762510A 17724 5/8 5/8 3-1/2 1-1/4 ALtima® Straight 4.00 203.49
.6250 17762512A 18001 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Straight 19.00 213.9
.6250 17762514A 17773 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Straight 43.00 213.9
.6250 17762515A 17774 5/8 5/8 3-1/2 1-1/4 0.045 ALtima® Straight 8.00 213.9
.6250 17762516A 17904 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Straight 15.00 213.9
.6250 17762517A 17905 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Straight 25.00 213.9
.6250 17762518A 17906 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Straight 59.00 213.9
.6250 17762510AW 58040 5/8 5/8 3-1/2 1-1/4 ALtima® Weldon 7.00 211.28
.6250 17762514AW 58041 5/8 5/8 3-1/2 1-1/4 0.03 ALtima® Weldon 14.00 221.04
.6250 17762500AW 13175 5/8 5/8 3 5/8 ALtima® Weldon 22.00 198.43
.6250 17762502AW 13176 5/8 5/8 3 5/8 0.015 ALtima® Weldon 6.00 208.87
.6250 17762505AW 13178 5/8 5/8 3 5/8 0.045 ALtima® Weldon 1.00 208.87
.6250 17762517AW 13182 5/8 5/8 3-1/2 1-1/4 0.09 ALtima® Weldon 0.00 221.04
.6250 17762518AW 13183 5/8 5/8 3-1/2 1-1/4 0.125 ALtima® Weldon 2.00 221.04
.6250 17762504AW 13177 5/8 5/8 3 5/8 0.03 ALtima® Weldon 0.00 208.87
.6250 17762512AW 13179 5/8 5/8 3-1/2 1-1/4 0.015 ALtima® Weldon 0.00 221.04
.6250 17762515AW 13180 5/8 5/8 3-1/2 1-1/4 0.045 ALtima® Weldon 0.00 221.04
.6250 17762516AW 13181 5/8 5/8 3-1/2 1-1/4 0.06 ALtima® Weldon 2.00 221.04
.6299 17762900A 17950 16mm 16mm 92mm 32mm ALtima® Straight 365.00 172.71
.6299 17762901A 18078 16mm 16mm 92mm 32mm 0.5mm ALtima® Straight 368.00 182.6
.6299 17762903A 17951 16mm 16mm 92mm 32mm 1mm ALtima® Straight 179.00 182.6
.6299 17762904A 17799 16mm 16mm 92mm 32mm 1.5mm ALtima® Straight 50.00 182.6
.6299 17762905A 17673 16mm 16mm 92mm 32mm 2mm ALtima® Straight 285.00 182.6
.6299 17762906A 18080 16mm 16mm 92mm 32mm 2.5mm ALtima® Straight 42.00 182.6
.6299 17762907A 17674 16mm 16mm 92mm 32mm 3mm ALtima® Straight 93.00 182.6
.6299 17762909A 18082 16mm 16mm 92mm 32mm 4mm ALtima® Straight 69.00 182.6
.6299 17762900AW 75127 16mm 16mm 92mm 32mm ALtima® Weldon 168.00 179.84
.6299 17762903AW 75128 16mm 16mm 92mm 32mm 1mm ALtima® Weldon 25.00 189.75
.6299 17762904AW 75129 16mm 16mm 92mm 32mm 1.5mm ALtima® Weldon 3.00 189.75
.6299 17762905AW 75130 16mm 16mm 92mm 32mm 2mm ALtima® Weldon 21.00 189.75
.6299 17762907AW 75131 16mm 16mm 92mm 32mm 3mm ALtima® Weldon 0.00 189.75
.7087 17770800A 17952 18mm 18mm 92mm 32mm ALtima® Straight 23.00 255.64
.7087 17770803A 17953 18mm 18mm 92mm 32mm 1mm ALtima® Straight 18.00 269.59
.7087 17770800AW 75132 18mm 18mm 92mm 32mm ALtima® Weldon 1.00 262.8
.7500 17775000A 17725 3/4 3/4 3 3/4 ALtima® Straight 37.00 280.01
.7500 17775002A 18002 3/4 3/4 3 3/4 0.015 ALtima® Straight 6.00 295.64
.7500 17775004A 17775 3/4 3/4 3 3/4 0.03 ALtima® Straight 214.00 295.64
.7500 17775005A 17776 3/4 3/4 3 3/4 0.045 ALtima® Straight 10.00 295.64
.7500 17775010A 17726 3/4 3/4 4 1-1/2 ALtima® Straight 27.00 299.15
.7500 17775012A 18003 3/4 3/4 4 1-1/2 0.015 ALtima® Straight 67.00 314.8
.7500 17775014A 17777 3/4 3/4 4 1-1/2 0.03 ALtima® Straight 118.00 314.8
.7500 17775015A 17778 3/4 3/4 4 1-1/2 0.045 ALtima® Straight 13.00 314.8
.7500 17775016A 17907 3/4 3/4 4 1-1/2 0.06 ALtima® Straight 22.00 314.8
.7500 17775017A 17908 3/4 3/4 4 1-1/2 0.09 ALtima® Straight 6.00 314.8
.7500 17775018A 17909 3/4 3/4 4 1-1/2 0.125 ALtima® Straight 29.00 314.8
.7500 17775010AW 58042 3/4 3/4 4 1-1/2 ALtima® Weldon 11.00 306.28
.7500 17775014AW 58043 3/4 3/4 4 1-1/2 0.03 ALtima® Weldon 10.00 321.92
.7500 17775016AW 58053 3/4 3/4 4 1-1/2 0.06 ALtima® Weldon 9.00 321.92
.7500 17775000AW 13184 3/4 3/4 3 3/4 ALtima® Weldon 13.00 287.15
.7500 17775002AW 13185 3/4 3/4 3 3/4 0.015 ALtima® Weldon 5.00 302.78
.7500 17775017AW 13189 3/4 3/4 4 1-1/2 0.09 ALtima® Weldon 13.00 321.92
.7500 17775012AW 13187 3/4 3/4 4 1-1/2 0.015 ALtima® Weldon 1.00 321.92
.7500 17775018AW 13190 3/4 3/4 4 1-1/2 0.125 ALtima® Weldon 0.00 321.92
.7500 17775005AW 14590 3/4 3/4 3 3/4 0.045 ALtima® Weldon 5.00 302.78
.7500 17775004AW 13186 3/4 3/4 3 3/4 0.03 ALtima® Weldon 2.00 302.78
.7500 17775015AW 13188 3/4 3/4 4 1-1/2 0.045 ALtima® Weldon 0.00 321.92
.7874 17778700A 17955 20mm 20mm 104mm 38mm ALtima® Straight 72.00 354.79
.7874 177787011A 18090 20mm 20mm 104mm 38mm 5mm ALtima® Straight 30.00 373.95
.7874 177787012A 18092 20mm 20mm 104mm 38mm 6mm ALtima® Straight 18.00 373.95
.7874 17778703A 17956 20mm 20mm 104mm 38mm 1mm ALtima® Straight 76.00 373.95
.7874 17778704A 18091 20mm 20mm 104mm 38mm 1.5mm ALtima® Straight 17.00 373.95
.7874 17778705A 18084 20mm 20mm 104mm 38mm 2mm ALtima® Straight 8.00 373.95
.7874 17778707A 18086 20mm 20mm 104mm 38mm 3mm ALtima® Straight 34.00 373.95
.7874 17778709A 18088 20mm 20mm 104mm 38mm 4mm ALtima® Straight 12.00 373.95
.7874 17778700AW 75133 20mm 20mm 104mm 38mm ALtima® Weldon 27.00 361.94
.7874 17778703AW 75134 20mm 20mm 104mm 38mm 1mm ALtima® Weldon 1.00 381.07
.9843 17798400A 17957 25mm 25mm 104mm 38mm ALtima® Straight 17.00 455.67
.9843 17798403A 17958 25mm 25mm 104mm 38mm 1mm ALtima® Straight 24.00 480
.9843 17798400AW 75135 25mm 25mm 104mm 38mm ALtima® Weldon 0.00 464.17
1.0000 17710000A 17727 1 1 4 1 ALtima® Straight 35.00 427.83
1.0000 17710002A 18004 1 1 4 1 0.015 ALtima® Straight 3.00 446.98
1.0000 17710004A 17779 1 1 4 1 0.03 ALtima® Straight 5.00 446.98
1.0000 17710005A 17780 1 1 4 1 0.045 ALtima® Straight 9.00 446.98
1.0000 17710010A 17728 1 1 4 1-1/2 ALtima® Straight 28.00 455.67
1.0000 17710012A 18005 1 1 4 1-1/2 0.015 ALtima® Straight 7.00 476.54
1.0000 17710014A 17781 1 1 4 1-1/2 0.03 ALtima® Straight 39.00 476.54
1.0000 17710015A 17782 1 1 4 1-1/2 0.045 ALtima® Straight 6.00 476.54
1.0000 17710016A 17910 1 1 4 1-1/2 0.06 ALtima® Straight 15.00 476.54
1.0000 17710017A 17911 1 1 4 1-1/2 0.09 ALtima® Straight 82.00 476.54
1.0000 17710018A 17912 1 1 4 1-1/2 0.125 ALtima® Straight 9.00 476.54
1.0000 17710010AW 58078 1 1 4 1-1/2 ALtima® Weldon 9.00 464.17
1.0000 17710014AW 58033 1 1 4 1-1/2 0.03 ALtima® Weldon 3.00 485.05
1.0000 17710005AW 13194 1 1 4 1 0.045 ALtima® Weldon 0.00 455.49
1.0000 17710012AW 13195 1 1 4 1-1/2 0.015 ALtima® Weldon 2.00 485.05
1.0000 17710015AW 13197 1 1 4 1-1/2 0.045 ALtima® Weldon 0.00 485.05
1.0000 17710017AW 13199 1 1 4 1-1/2 0.09 ALtima® Weldon 0.00 485.05
1.0000 17710018AW 13200 1 1 4 1-1/2 0.125 ALtima® Weldon 0.00 485.05
1.0000 17710000AW 13191 1 1 4 1 ALtima® Weldon 11.00 436.35
1.0000 17710016AW 13198 1 1 4 1-1/2 0.06 ALtima® Weldon 0.00 485.05
1.0000 17710002AW 13192 1 1 4 1 0.015 ALtima® Weldon 2.00 455.49
1.0000 17710004AW 13193 1 1 4 1 0.03 ALtima® Weldon 0.00 455.49
