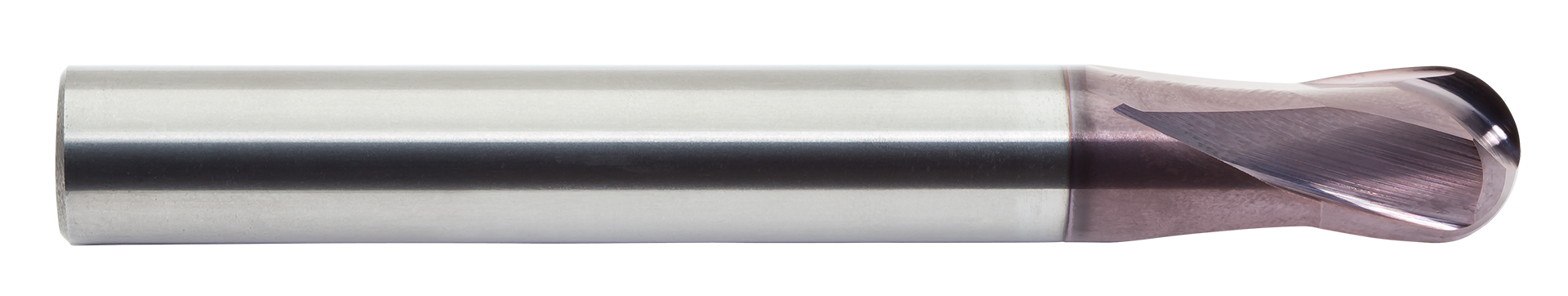

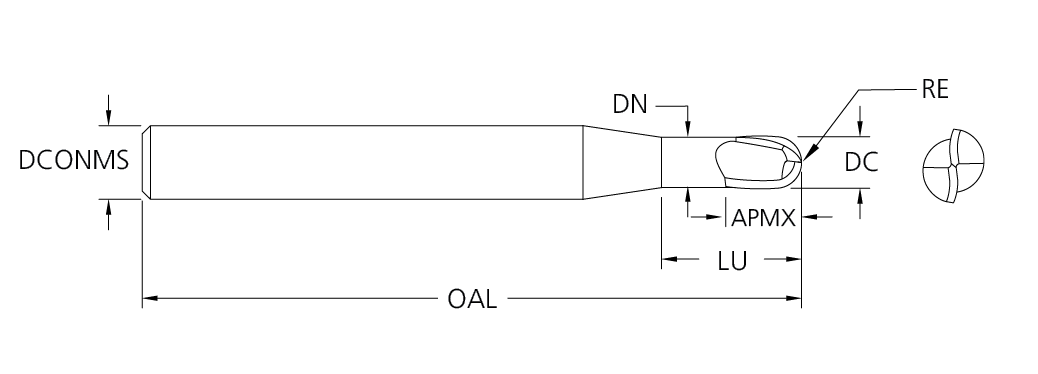

product photo product drawing

End Mills / 156

Solid Carbide TuffCut DM® 2 Flute Ball Nose End Mill
Designed for high-productivity milling of hard and difficult to cut materials Rc 45-60.
  • 2 Flute
  • Solid carbide
  • Coated with ALtima® Xtreme, A=ALtima® Xtreme coated
  • Center cutting
  • Stub, standard, long, and extra long flute lengths
  • Neck relief options
  • 20° Helix angle
  • For finishing applications
  • Ball nose

Materials

  • Hard material

Applications

  • Slotting
  • Finishing
  • 3D Surfacing

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (DC) Shank Diameter (DCONMS) Overall Length (OAL) Flute Length (APMX) Neck Length (LU) Ball Radius (C) Coating Shank Type Available List Price
.0156 15601560A 15600 1/64 1/4 2-1/2 1/64 .0078 ALtima® Xtreme Straight 32.00 83.93
.0196 15601960A 15602 0.50mm 6mm 63mm 0.5mm 0.25mm ALtima® Xtreme Straight 49.00 83.93
.0196 156M0050N1A 15400 0.50mm 4mm 50mm 0.35mm 1mm 0.25mm ALtima® Xtreme Straight 89.00 85.72
.0196 156M0050N2A 15401 0.50mm 4mm 50mm 0.35mm 2mm 0.25mm ALtima® Xtreme Straight 63.00 86.6
.0196 156M0050N3A 15402 0.50mm 4mm 50mm 0.35mm 3mm 0.25mm ALtima® Xtreme Straight 20.00 87.46
.0196 156M0050N4A 15403 0.50mm 4mm 50mm 0.35mm 4mm 0.25mm ALtima® Xtreme Straight 26.00 88.32
.0196 156M0050N5A 15404 0.50mm 4mm 50mm 0.35mm 5mm 0.25mm ALtima® Xtreme Straight 11.00 89.17
.0196 156M0050N6A 15406 0.50mm 4mm 50mm 0.35mm 6mm 0.25mm ALtima® Xtreme Straight 13.00 90.03
.0236 156M0060N10A 15417 0.60mm 4mm 50mm 0.4mm 10mm 0.3mm ALtima® Xtreme Straight 11.00 66.96
.0236 156M0060N2A 15409 0.60mm 4mm 50mm 0.4mm 2mm 0.3mm ALtima® Xtreme Straight 43.00 57.67
.0236 156M0060N4A 15411 0.60mm 4mm 50mm 0.4mm 4mm 0.3mm ALtima® Xtreme Straight 21.00 60.04
.0236 156M0060N6A 15413 0.60mm 4mm 50mm 0.4mm 6mm 0.3mm ALtima® Xtreme Straight 2.00 62.34
.0236 156M0060N8A 15415 0.60mm 4mm 50mm 0.4mm 8mm 0.3mm ALtima® Xtreme Straight 17.00 64.64
.0312 15603120A 15604 1/32 1/4 2-1/2 1/32 1/64 ALtima® Xtreme Straight 310.00 79.01
.0312 15603121A 15606 1/32 1/4 2-1/2 1/32 1/4 1/64 ALtima® Xtreme Straight 11.00 98.97
.0312 15603122A 15608 1/32 1/4 2-1/2 1/32 5/16 1/64 ALtima® Xtreme Straight 24.00 98.97
.0312 15603123A 15610 1/32 1/4 2-1/2 1/32 3/8 1/64 ALtima® Xtreme Straight 14.00 98.97
.0312 15603124A 15612 1/32 1/4 2-1/2 1/32 1/2 1/64 ALtima® Xtreme Straight 6.00 98.97
.0312 15603125A 15614 1/32 1/4 2-1/2 1/32 5/8 1/64 ALtima® Xtreme Straight 5.00 98.97
.0315 156M0080N10A 15424 0.8mm 4mm 50mm 0.5mm 10mm 0.4mm ALtima® Xtreme Straight 62.00 66.96
.0315 156M0080N2A 15419 0.8mm 4mm 50mm 0.5mm 2mm 0.4mm ALtima® Xtreme Straight 0.00 57.73
.0315 156M0080N4A 15420 0.8mm 4mm 50mm 0.5mm 4mm 0.4mm ALtima® Xtreme Straight 20.00 60.04
.0315 156M0080N6A 15422 0.8mm 4mm 50mm 0.5mm 6mm 0.4mm ALtima® Xtreme Straight 12.00 62.34
.0315 156M0080N8A 15423 0.8mm 4mm 50mm 0.5mm 8mm 0.4mm ALtima® Xtreme Straight 13.00 64.64
.0394 15603940A 15616 1mm 6mm 63mm 1mm 0.5mm ALtima® Xtreme Straight 152.00 74.1
.0394 15603941A 15618 1mm 6mm 63mm 1mm 6mm 0.5mm ALtima® Xtreme Straight 77.00 94.08
.0394 15603942A 15620 1mm 6mm 63mm 1mm 8.0mm 0.5mm ALtima® Xtreme Straight 10.00 94.08
.0394 15603943A 15622 1mm 6mm 63mm 1mm 10mm 0.5mm ALtima® Xtreme Straight 14.00 94.08
.0394 15603944A 15624 1mm 6mm 63mm 1mm 12mm 0.5mm ALtima® Xtreme Straight 4.00 94.08
.0394 15603945A 15626 1mm 6mm 63mm 1mm 16mm 0.5mm ALtima® Xtreme Straight 19.00 94.08
.0394 156M0100N10A 15431 1mm 4mm 50mm 0.8mm 10mm 0.5mm ALtima® Xtreme Straight 55.00 60.08
.0394 156M0100N12A 15432 1mm 4mm 63mm 0.8mm 12mm 0.5mm ALtima® Xtreme Straight 6.00 61.18
.0394 156M0100N14A 15433 1mm 4mm 63mm 0.8mm 14mm 0.5mm ALtima® Xtreme Straight 6.00 62.32
.0394 156M0100N16A 15434 1mm 4mm 63mm 0.8mm 16mm 0.5mm ALtima® Xtreme Straight 14.00 63.42
.0394 156M0100N18A 15435 1mm 4mm 63mm 0.8mm 18mm 0.5mm ALtima® Xtreme Straight 16.00 64.54
.0394 156M0100N20A 15436 1mm 4mm 63mm 0.8mm 20mm 0.5mm ALtima® Xtreme Straight 4.00 65.66
.0394 156M0100N2A 15425 1mm 4mm 50mm 0.8mm 2mm 0.5mm ALtima® Xtreme Straight 26.00 55.64
.0394 156M0100N3A 15426 1mm 4mm 50mm 0.8mm 3mm 0.5mm ALtima® Xtreme Straight 212.00 56.19
.0394 156M0100N4A 15427 1mm 4mm 50mm 0.8mm 4mm 0.5mm ALtima® Xtreme Straight 35.00 56.75
.0394 156M0100N6A 15429 1mm 4mm 50mm 0.8mm 6mm 0.5mm ALtima® Xtreme Straight 75.00 57.85
.0472 156M0120N12A 15438 1.2mm 4mm 63mm 1.1mm 12mm 0.6mm ALtima® Xtreme Straight 9.00 86.75
.0472 156M0120N8A 15437 1.2mm 4mm 50mm 1.1mm 8mm 0.6mm ALtima® Xtreme Straight 13.00 80.33
.0551 156M0140N12A 15440 1.4mm 4mm 63mm 1.3mm 12mm 0.7mm ALtima® Xtreme Straight 27.00 93.41
.0551 156M0140N16A 15441 1.4mm 4mm 63mm 1.3mm 16mm 0.7mm ALtima® Xtreme Straight 13.00 100.35
.0551 156M0140N8A 15439 1.4mm 4mm 50mm 1.3mm 8mm 0.7mm ALtima® Xtreme Straight 9.00 86.5
.0591 15605910A 15628 1.5mm 6mm 63mm 1.5mm 0.75mm ALtima® Xtreme Straight 47.00 90.33
.0591 156M0150N16A 15446 1.5mm 4mm 63mm 1.35mm 16mm 0.75mm ALtima® Xtreme Straight 37.00 63.25
.0591 156M0150N20A 15447 1.5mm 4mm 63mm 1.35mm 20mm 0.75mm ALtima® Xtreme Straight 10.00 65.48
.0591 156M0150N4A 15442 1.5mm 4mm 50mm 1.35mm 4mm 0.75mm ALtima® Xtreme Straight 106.00 56.47
.0591 156M0150N8A 15444 1.5mm 4mm 50mm 1.35mm 8mm 0.75mm ALtima® Xtreme Straight 67.00 58.72
.0625 15606250A 15630 1/16 1/4 2-1/2 1/16 1/32 ALtima® Xtreme Straight 278.00 90.33
.0625 15606250AV 10646 1/16 1/4 2-1/2 1/16 1/32 ALtima® V Straight 15.00 90.33
.0630 156M0160N12A 15449 1.6mm 4mm 63mm 1.4mm 12mm 0.8mm ALtima® Xtreme Straight 23.00 89.96
.0630 156M0160N16A 15450 1.6mm 4mm 63mm 1.4mm 16mm 0.8mm ALtima® Xtreme Straight 11.00 93.41
.0630 156M0160N20A 15451 1.6mm 4mm 63mm 1.4mm 20mm 0.8mm ALtima® Xtreme Straight 6.00 96.87
.0630 156M0160N8A 15448 1.6mm 4mm 50mm 1.4mm 8mm 0.8mm ALtima® Xtreme Straight 84.00 86.5
.0709 156M0180N12A 15453 1.8mm 4mm 63mm 1.6mm 12mm 0.9mm ALtima® Xtreme Straight 20.00 89.96
.0709 156M0180N16A 15454 1.8mm 4mm 63mm 1.6mm 16mm 0.9mm ALtima® Xtreme Straight 7.00 93.41
.0709 156M0180N20A 15455 1.8mm 4mm 63mm 1.6mm 20mm 0.9mm ALtima® Xtreme Straight 9.00 96.87
.0709 156M0180N8A 15452 1.8mm 4mm 50mm 1.6mm 8mm 0.9mm ALtima® Xtreme Straight 33.00 86.5
.0787 15607870A 15632 2mm 6mm 63mm 2mm 1mm ALtima® Xtreme Straight 294.00 65.3
.0787 15607871A 15634 2mm 6mm 63mm 2mm 8.0mm 1mm ALtima® Xtreme Straight 405.00 85.26
.0787 15607872A 15636 2mm 6mm 63mm 2mm 12mm 1mm ALtima® Xtreme Straight 15.00 85.26
.0787 15607873A 15638 2mm 6mm 63mm 2mm 20mm 1mm ALtima® Xtreme Straight 8.00 85.26
.0787 156M0200N10A 15460 2mm 4mm 50mm 1.7mm 10mm 1mm ALtima® Xtreme Straight 5.00 59.53
.0787 156M0200N12A 15461 2mm 4mm 63mm 1.7mm 12mm 1mm ALtima® Xtreme Straight 18.00 60.64
.0787 156M0200N16A 15463 2mm 4mm 63mm 1.7mm 16mm 1mm ALtima® Xtreme Straight 126.00 62.85
.0787 156M0200N20A 15465 2mm 4mm 63mm 1.7mm 20mm 1mm ALtima® Xtreme Straight 31.00 65.08
.0787 156M0200N25A 15467 2mm 4mm 80mm 1.7mm 25mm 1mm ALtima® Xtreme Straight 24.00 67.87
.0787 156M0200N30A 15468 2mm 4mm 80mm 1.7mm 30mm 1mm ALtima® Xtreme Straight 6.00 70.66
.0787 156M0200N35A 15469 2mm 4mm 80mm 1.7mm 35mm 1mm ALtima® Xtreme Straight 5.00 73.45
.0787 156M0200N3A 15456 2mm 4mm 50mm 1.7mm 3mm 1mm ALtima® Xtreme Straight 7.00 55.64
.0787 156M0200N40A 15470 2mm 4mm 80mm 1.7mm 40mm 1mm ALtima® Xtreme Straight 9.00 76.21
.0787 156M0200N4A 15457 2mm 4mm 50mm 1.7mm 4mm 1mm ALtima® Xtreme Straight 12.00 56.19
.0787 156M0200N6A 15458 2mm 4mm 50mm 1.7mm 6mm 1mm ALtima® Xtreme Straight 26.00 57.3
.0787 156M0200N8A 15459 2mm 4mm 50mm 1.7mm 8mm 1mm ALtima® Xtreme Straight 0.00 58.43
.0937 15609370A 15640 3/32 1/4 2-1/2 3/32 3/64 ALtima® Xtreme Straight 84.00 72.74
.0937 15609371A 15642 3/32 1/4 2-1/2 3/32 5/16 3/64 ALtima® Xtreme Straight 175.00 92.7
.0937 15609372A 15644 3/32 1/4 2-1/2 3/32 1/2 3/64 ALtima® Xtreme Straight 10.00 92.7
.0937 15609373A 15646 3/32 1/4 2-1/2 3/32 3/4 3/64 ALtima® Xtreme Straight 6.00 92.7
.1181 15611810A 15648 3mm 6mm 75mm 3mm 1.5mm ALtima® Xtreme Straight 55.00 80.17
.1181 15611811A 15650 3mm 6mm 75mm 3mm 20mm 1.5mm ALtima® Xtreme Straight 5.00 100.15
.1181 15611812A 15676 3mm 6mm 75mm 3mm 12mm 1.5mm ALtima® Xtreme Straight 6.00 100.15
.1181 156M0300N10A 15472 3mm 6mm 75mm 2.5mm 10mm 1.5mm ALtima® Xtreme Straight 58.00 61.84
.1181 156M0300N16A 15474 3mm 6mm 75mm 2.5mm 16mm 1.5mm ALtima® Xtreme Straight 22.00 65.46
.1181 156M0300N25A 15476 3mm 6mm 75mm 2.5mm 25mm 1.5mm ALtima® Xtreme Straight 30.00 70.95
.1181 156M0300N30A 15477 3mm 6mm 75mm 2.5mm 30mm 1.5mm ALtima® Xtreme Straight 6.00 73.96
.1181 156M0300N35A 15478 3mm 6mm 75mm 2.5mm 35mm 1.5mm ALtima® Xtreme Straight 17.00 76.97
.1181 156M0300N8A 15471 3mm 6mm 75mm 2.5mm 8mm 1.5mm ALtima® Xtreme Straight 180.00 60.62
.1250 15612500A 15652 1/8 1/4 3 1/8 1/16 ALtima® Xtreme Straight 75.00 80.17
.1250 15612501A 15654 1/8 1/4 3 1/8 3/4 1/16 ALtima® Xtreme Straight 116.00 100.15
.1562 15615620A 15656 5/32 1/4 3 5/32 5/64 ALtima® Xtreme Straight 66.00 87.46
.1575 15615750A 15658 4mm 6mm 75mm 4mm 2mm ALtima® Xtreme Straight 562.00 87.46
.1575 15615751A 15678 4mm 6mm 75mm 4mm 12mm 2mm ALtima® Xtreme Straight 269.00 107.44
.1575 15615752A 15679 4mm 6mm 75mm 4mm 20mm 2mm ALtima® Xtreme Straight 171.00 107.44
.1575 156M0400N10A 15480 4mm 6mm 75mm 3mm 10mm 2mm ALtima® Xtreme Straight 21.00 61.88
.1575 156M0400N16A 15482 4mm 6mm 75mm 3mm 16mm 2mm ALtima® Xtreme Straight 66.00 69.31
.1575 156M0400N25A 15484 4mm 6mm 75mm 3mm 25mm 2mm ALtima® Xtreme Straight 37.00 80.48
.1575 156M0400N35A 15486 4mm 6mm 75mm 3mm 35mm 2mm ALtima® Xtreme Straight 24.00 92.85
.1575 156M0400N40A 15487 4mm 6mm 75mm 3mm 40mm 2mm ALtima® Xtreme Straight 18.00 99.03
.1575 156M0400N50A 15489 4mm 6mm 100mm 3mm 50mm 2mm ALtima® Xtreme Straight 21.00 111.43
.1875 15618750A 15659 3/16 1/4 3 3/16 3/32 ALtima® Xtreme Straight 107.00 87.46
.1875 15618750N0.500A 20170 3/16 1/4 3 3/16 .500 3/32 ALtima® Xtreme Straight 0.00 101.23
.1875 15618750N0.750A 20171 3/16 1/4 3 3/16 .750 3/32 ALtima® Xtreme Straight 0.00 101.23
.1968 15619680A 15680 5mm 6mm 75mm 5mm 2.5mm ALtima® Xtreme Straight 15.00 98.97
.1968 15619681A 15681 5mm 6mm 75mm 5mm 12mm 2.5mm ALtima® Xtreme Straight 6.00 118.93
.1968 15619682A 15682 5mm 6mm 75mm 5mm 25mm 2.5mm ALtima® Xtreme Straight 2.00 118.93
.1968 156M0500N25A 15490 5mm 6mm 75mm 3.5mm 25mm 2.5mm ALtima® Xtreme Straight 13.00 144.76
.1968 156M0500N40A 15493 5mm 6mm 75mm 3.5mm 40mm 2.5mm ALtima® Xtreme Straight 6.00 188.22
.2362 15623620A 15660 6mm 6mm 75mm 6mm 3mm ALtima® Xtreme Straight 0.00 110.46
.2362 15623621A 15683 6mm 6mm 75mm 6mm 12mm 3mm ALtima® Xtreme Straight 10.00 130.44
.2362 15623622A 15684 6mm 6mm 75mm 6mm 25mm 3mm ALtima® Xtreme Straight 34.00 130.44
.2362 156M0600N30A 15494 6mm 6mm 75mm 4.5mm 30mm 3mm ALtima® Xtreme Straight 114.00 103.37
.2362 156M0600N50A 15495 6mm 6mm 100mm 4.5mm 50mm 3mm ALtima® Xtreme Straight 15.00 144.72
.2500 15625000A 15662 1/4 1/4 3 1/4 1/8 ALtima® Xtreme Straight 28.00 110.46
.2500 15625000N0.500A 20173 1/4 1/4 3 1/4 .500 1/8 ALtima® Xtreme Straight 0.00 126.12
.2500 15625000N0.750A 20174 1/4 1/4 3 1/4 .750 1/8 ALtima® Xtreme Straight 0.00 126.12
.2500 15625000N1.000A 20176 1/4 1/4 3 1/4 1 1/8 ALtima® Xtreme Straight 0.00 126.12
.3125 15631250A 15664 5/16 5/16 3-1/8 5/16 5/32 ALtima® Xtreme Straight 35.00 159.88
.3125 15631250N0.500A 20177 5/16 5/16 3-1/8 5/16 .500 5/32 ALtima® Xtreme Straight 0.00 177.41
.3125 15631250N0.750A 20179 5/16 5/16 3-1/8 5/16 .750 5/32 ALtima® Xtreme Straight 0.00 177.41
.3150 15631500A 15666 8mm 8mm 80mm 8mm 4mm ALtima® Xtreme Straight 11.00 159.88
.3150 156M0800N30A 15665 8mm 8mm 102mm 5.5mm 30mm 4mm ALtima® Xtreme Straight 26.00 126.84
.3150 156M0800N50A 15667 8mm 8mm 102mm 5.5mm 50mm 4mm ALtima® Xtreme Straight 10.00 146.87
.3750 15637500A 15668 3/8 3/8 3-1/4 3/8 3/16 ALtima® Xtreme Straight 47.00 208.08
.3750 15637500N0.500A 20180 3/8 3/8 3-1/4 3/8 .500 3/16 ALtima® Xtreme Straight 0.00 227.62
.3750 15637500N0.750A 20182 3/8 3/8 3-1/4 3/8 .750 3/16 ALtima® Xtreme Straight 0.00 227.62
.3750 15637500N1.000A 20183 3/8 3/8 3-1/4 3/8 1 3/16 ALtima® Xtreme Straight 0.00 227.62
.3937 15639370A 15670 10mm 10mm 82mm 10mm 5mm ALtima® Xtreme Straight 20.00 208.08
.3937 156M1000N30A 15669 10mm 10mm 102mm 6.5mm 30mm 5mm ALtima® Xtreme Straight 17.00 144.34
.3937 156M1000N50A 15671 10mm 10mm 102mm 6.5mm 50mm 5mm ALtima® Xtreme Straight 2.00 158.98
.4724 15647240A 15672 12mm 12mm 102mm 12mm 6mm ALtima® Xtreme Straight 13.00 280.84
.4724 156M1200N30A 15673 12mm 12mm 102mm 7.5mm 30mm 6mm ALtima® Xtreme Straight 17.00 180.25
.4724 156M1200N50A 15675 12mm 12mm 102mm 7.5mm 50mm 6mm ALtima® Xtreme Straight 9.00 206.96
.5000 15650000A 15674 1/2 1/2 4 1/2 1/4 ALtima® Xtreme Straight 11.00 280.84
