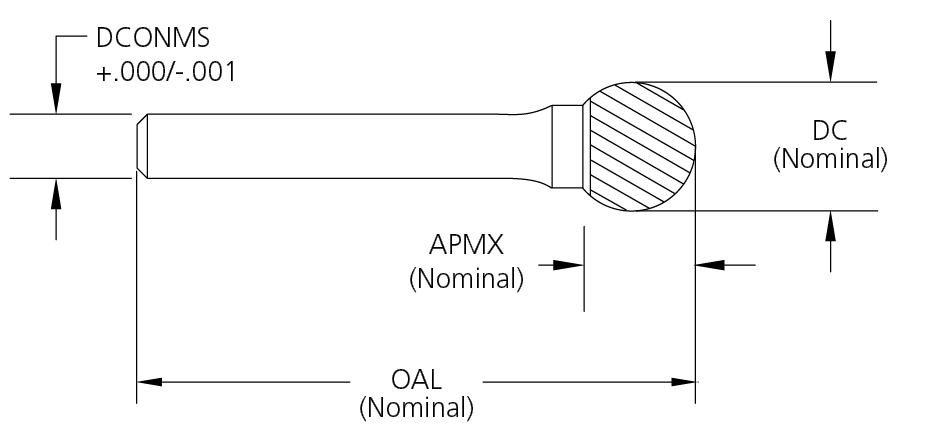

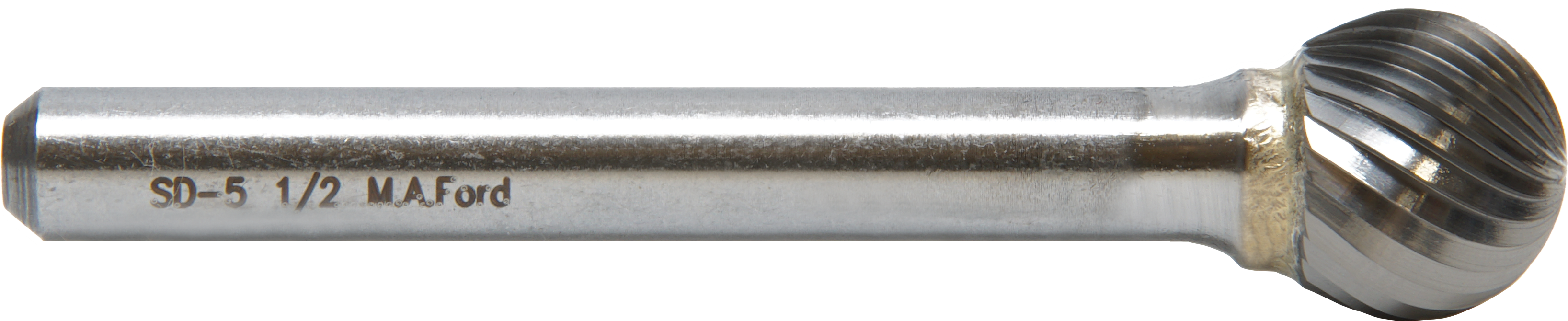

product photo product drawing

Burs / SD

Solid Carbide Edge Hog® Bur
Ball End

  • SCTI SD
  • Solid carbide 1/4" sizes and below, brazed construction over 1/4"
  • Inch and metric sizes
  • Single, double, fine and shear cuts available

Materials

  • Steel
  • Stainless steel
  • Cast iron
  • Non-Ferrous
  • Super-alloys and titanium
  • Hard material

Series Attributes

Downloads

Product Range

Tool No. EDP Diameter (D/D1) Shank Diameter (D2) Overall Length (L1) Flute Length (L2) Specification Type of Cut Coating Shank Type Available List Price
.0937 69045020 69121 3/32 1/8 1-1/2 5/64 SD-41 Single Uncoated Straight 231.00 12.42
.0937 69045027 69129 3/32 1/8 1-1/2 5/64 SD-41-D Double Cut Uncoated Straight 149.00 12.42
.0937 69045030 69137 3/32 1/8 1-1/2 5/64 SD-41-F Fine Uncoated Straight 99.00 13.63
.0945 69045020M 69125 2.4mm 3mm 38mm 2mm SD-41M Single Uncoated Straight 109.00 12.42
.0945 69045027M 69133 2.4mm 3mm 38mm 2mm SD-41M-D Double Cut Uncoated Straight 232.00 12.42
.0945 69045030M 69141 2.4mm 3mm 38mm 2mm SD-41M-F Fine Uncoated Straight 71.00 13.63
.0945 69045026M 76547 2.4mm 3mm 38mm 2mm SD-41M Diam Std Diamond Uncoated Straight 0.00 14.87
.1181 43125020M 43029 3mm 6mm 50mm 2.8mm SD-11M Single Uncoated Straight 2.00 23.9
.1181 43125027M 43037 3mm 6mm 50mm 2.8mm SD-11M-D Double Cut Uncoated Straight 406.00 23.9
.1181 43125030M 43045 3mm 6mm 50mm 2.8mm SD-11M-F Fine Uncoated Straight 47.00 26.21
.1181 69050020L3M 69810 3mm 3mm 76mm 2.8mm SD-42L76M Single Uncoated Straight 43.00 15.93
.1181 69050020M 69149 3mm 3mm 38mm 2.8mm SD-42M Single Uncoated Straight 199.00 11.32
.1181 69050027L3M 69812 3mm 3mm 76mm 2.8mm SD-42L76M-D Double Cut Uncoated Straight 61.00 15.93
.1181 69050027M 69157 3mm 3mm 38mm 2.8mm SD-42M-D Double Cut Uncoated Straight 1551.00 11.32
.1181 69050030M 69165 3mm 3mm 38mm 2.8mm SD-42M-F Fine Uncoated Straight 163.00 12.56
.1181 69050026L3M 76552 3mm 3mm 76mm 2.8mm SD-42L76M Diam Std Diamond Uncoated Straight 0.00 18.97
.1181 69050026M 76553 3mm 3mm 38mm 2.8mm SD-42M Diam Std Diamond Uncoated Straight 3.00 13.63
.1181 69050037MT 78088 3mm 3mm 38mm 2.8mm SD-42M-F Alt Diam Fine Alternate Diamond TiN Straight 0.00 19.68
.1250 43125020 43025 1/8 1/4 2 7/64 SD-11 Single Uncoated Straight 49.00 23.9
.1250 43125027 43033 1/8 1/4 2 7/64 SD-11-D Double Cut Uncoated Straight 52.00 23.9
.1250 43125030 43041 1/8 1/4 2 7/64 SD-11-F Fine Uncoated Straight 9.00 26.21
.1250 69050020 69145 1/8 1/8 1-1/2 7/64 SD-42 Single Uncoated Straight 1096.00 11.32
.1250 69050020L3 69809 1/8 1/8 3 7/64 SD-42L3 Single Uncoated Straight 23.00 15.93
.1250 69050027 69153 1/8 1/8 1-1/2 7/64 SD-42-D Double Cut Uncoated Straight 237.00 11.32
.1250 69050027L3 69811 1/8 1/8 3 7/64 SD-42L3-D Double Cut Uncoated Straight 268.00 15.93
.1250 69050030 69161 1/8 1/8 1-1/2 7/64 SD-42-F Fine Uncoated Straight 86.00 12.56
.1250 69050026 76551 1/8 1/8 1-1/2 7/64 SD-42 Diam Std Diamond Uncoated Straight 2.00 13.63
.1250 69050027L3A 20680 1/8 1/8 3 7/64 SD-42L3-D Double Cut ALtima® Straight 0.00 20.68
.1875 43187520 43049 3/16 1/4 2 5/32 SD-14 Single Uncoated Straight 45.00 23.9
.1875 43187527 43057 3/16 1/4 2 5/32 SD-14-D Double Cut Uncoated Straight 132.00 23.9
.1875 43187530 43065 3/16 1/4 2 5/32 SD-14-F Fine Uncoated Straight 6.00 26.21
.1875 72050020 72097 3/16 1/8 1-1/2 5/32 SD-53 Single Uncoated Straight 118.00 27.89
.1875 72050027 72105 3/16 1/8 1-1/2 5/32 SD-53-D Double Cut Uncoated Straight 55.00 27.89
.1875 72050030 72113 3/16 1/8 1-1/2 5/32 SD-53-F Fine Uncoated Straight 67.00 30.64
.1875 72050020A 76760 3/16 1/8 1-1/2 5/32 SD-53 Single ALtima® Straight 0.00 34.51
.1890 43187520M 43053 4.8mm 6mm 50mm 4mm SD-14M Single Uncoated Straight 25.00 23.9
.1890 43187527M 43061 4.8mm 6mm 50mm 4mm SD-14M-D Double Cut Uncoated Straight 48.00 23.9
.1890 43187530M 43069 4.8mm 6mm 50mm 4mm SD-14M-F Fine Uncoated Straight 0.00 26.21
.1890 72050020M 72101 4.8mm 3mm 38mm 4mm SD-53M Single Uncoated Straight 237.00 27.89
.1890 72050027M 72109 4.8mm 3mm 38mm 4mm SD-53M-D Double Cut Uncoated Straight 1457.00 27.89
.1890 72050030M 72117 4.8mm 3mm 38mm 4mm SD-53M-F Fine Uncoated Straight 97.00 30.64
.1890 72050037M 76765 4.8mm 3mm 38mm 4mm SD-53M-F Alt Diam Fine Alternate Diamond Uncoated Straight 0.00 33.85
.2362 43250020L6M 43802 6mm 6mm 155mm 5mm SD-1L6M Single Uncoated Straight 7.00 29.87
.2362 43250020M 43081 6mm 6mm 50mm 5mm SD-1M Single Uncoated Straight 155.00 21.44
.2362 43250027L6M 43807 6mm 6mm 155mm 5mm SD-1L6M-D Double Cut Uncoated Straight 20.00 29.87
.2362 43250027M 43093 6mm 6mm 50mm 5mm SD-1M-D Double Cut Uncoated Straight 68.00 21.44
.2362 43250030M 43105 6mm 6mm 50mm 5mm SD-1M-F Fine Uncoated Straight 8.00 23.42
.2362 43250030L6M 43812 6mm 6mm 155mm 5mm SD-1L6M-F Fine Uncoated Straight 0.00 32.93
.2362 43250027MT 14907 6mm 6mm 50mm 5mm SD-1M-D Double Cut TiN Straight 0.00 32.37
.2500 43250020 43073 1/4 1/4 2 7/32 SD-1 Single Uncoated Straight 380.00 21.44
.2500 43250020L6 43801 1/4 1/4 6-7/32 7/32 SD-1L6 Single Uncoated Straight 5.00 29.87
.2500 43250027 43085 1/4 1/4 2 7/32 SD-1-D Double Cut Uncoated Straight 169.00 21.44
.2500 43250027L6 43806 1/4 1/4 6-7/32 7/32 SD-1L6-D Double Cut Uncoated Straight 14.00 29.87
.2500 43250030 43097 1/4 1/4 2 7/32 SD-1-F Fine Uncoated Straight 36.00 23.42
.2500 43250030L6 43811 1/4 1/4 6-7/32 7/32 SD-1L6-F Fine Uncoated Straight 8.00 32.93
.2500 43250020L3 76362 1/4 1/4 3-7/32 7/32 SD-1L3 Single Uncoated Straight 0.00 29.87
.2500 43250026L6 76364 1/4 1/4 6-7/32 7/32 SD-1L6 Diam Std Diamond Uncoated Straight 4.00 43.04
.2500 43250036 76365 1/4 1/4 2 7/32 SD-1-F Diam Fine Diamond Uncoated Straight 3.00 28.19
.2500 43250037L6 76366 1/4 1/4 6-7/32 7/32 SD-1L6-F Alt Diam Fine Alternate Diamond Uncoated Straight 0.00 36.3
.2500 43250027A 18892 1/4 1/4 2 7/32 SD-1-D Double Cut ALtima® Straight 0.00 31.84
.2500 43250020A 19380 1/4 1/4 2 7/32 SD-1 Single ALtima® Straight 0.00 31.84
.2500 43250020B 19381 1/4 1/4 2 7/32 SD-1 Single ALtima® Blaze Straight 0.00 31.84
.2500 70030020 70061 1/4 1/8 1-23/32 7/32 SD-51 Single Uncoated Straight 137.00 18.97
.2500 70030027 70069 1/4 1/8 1-23/32 7/32 SD-51-D Double Cut Uncoated Straight 135.00 18.97
.2500 70030030 70077 1/4 1/8 1-23/32 7/32 SD-51-F Fine Uncoated Straight 138.00 20.83
.2500 70030020A 20696 1/4 1/8 1-23/32 7/32 SD-51 Single ALtima® Straight 0.00 29.36
.2520 70030020M 70065 6.4mm 3mm 44mm 5.6mm SD-51M Single Uncoated Straight 175.00 18.97
.2520 70030027M 70073 6.4mm 3mm 44mm 5.6mm SD-51M-D Double Cut Uncoated Straight 504.00 18.97
.2520 70030030M 70081 6.4mm 3mm 44mm 5.6mm SD-51M-F Fine Uncoated Straight 57.00 20.83
.2520 70030026M 76668 6.4mm 3mm 44mm 5.6mm SD-51M Diam Std Diamond Uncoated Straight 0.00 22.84
.2520 70030036M 76670 6.4mm 3mm 44mm 5.6mm SD-51M-F Diam Fine Diamond Uncoated Straight 0.00 25.13
.3125 43312520 43109 5/16 1/4 2-9/32 9/32 SD-2 Single Uncoated Straight 8.00 24.51
.3125 43312520L6 43816 5/16 1/4 6-9/32 9/32 SD-2L6 Single Uncoated Straight 44.00 34.31
.3125 43312527 43121 5/16 1/4 2-9/32 9/32 SD-2-D Double Cut Uncoated Straight 100.00 24.51
.3125 43312527L6 43821 5/16 1/4 6-9/32 9/32 SD-2L6-D Double Cut Uncoated Straight 37.00 34.31
.3125 43312530 43133 5/16 1/4 2-9/32 9/32 SD-2-F Fine Uncoated Straight 7.00 26.96
.3125 43312530L6 43826 5/16 1/4 6-9/32 9/32 SD-2L6-F Fine Uncoated Straight 11.00 37.67
.3125 43312520L3 76367 5/16 1/4 3-9/32 9/32 SD-3L3 Single Uncoated Straight 0.00 34.31
.3125 43312526 76368 5/16 1/4 2-9/32 9/32 SD-2 Diam Std Diamond Uncoated Straight 9.00 29.4
.3125 43312536 76369 5/16 1/4 2-9/32 9/32 SD-2-F Diam Fine Diamond Uncoated Straight 7.00 30.5
.3150 43312520L6M 43817 8mm 6mm 159mm 6mm SD-2L6M Single Uncoated Straight 6.00 34.31
.3150 43312520M 43117 8mm 6mm 51mm 6mm SD-2M Single Uncoated Straight 18.00 24.51
.3150 43312527L6M 43822 8mm 6mm 159mm 6mm SD-2L6M-D Double Cut Uncoated Straight 58.00 34.31
.3150 43312527M 43129 8mm 6mm 51mm 6mm SD-2M-D Double Cut Uncoated Straight 30.00 24.51
.3150 43312536M 76370 8mm 6mm 51mm 6mm SD-2M-F Diam Fine Diamond Uncoated Straight 1.00 32.33
.3150 43312530L6M 43827 8mm 6mm 159mm 6mm SD-2L6M-F Fine Uncoated Straight 2.00 37.67
.3150 43312530M 43141 8mm 6mm 51mm 6mm SD-2M-F Fine Uncoated Straight 11.00 26.96
.3740 43375020L6M 43832 9.5mm 6mm 161mm 7mm SD-3L6M Single Uncoated Straight 42.00 34.92
.3740 43375020M 43153 9.5mm 6mm 53mm 7mm SD-3M Single Uncoated Straight 87.00 24.97
.3740 43375027L6M 43837 9.5mm 6mm 161mm 7mm SD-3L6M-D Double Cut Uncoated Straight 29.00 34.92
.3740 43375027M 43165 9.5mm 6mm 53mm 7mm SD-3M-D Double Cut Uncoated Straight 99.00 24.97
.3740 43375030L6M 43842 9.5mm 6mm 161mm 7mm SD-3L6M-F Fine Uncoated Straight 25.00 38.47
.3740 43375030M 43177 9.5mm 6mm 53mm 7mm SD-3M-F Fine Uncoated Straight 314.00 27.42
.3740 43375150M 43185 9.5mm 6mm 53mm 7mm SD-3NFM Shear Uncoated Straight 15.00 36.63
.3740 43375027MT 14908 9.5mm 6mm 53mm 7mm SD-3M-D Double Cut TiN Straight 0.00 48
.3750 43375020 43145 3/8 1/4 2-5/16 5/16 SD-3 Single Uncoated Straight 0.00 24.97
.3750 43375020L6 43831 3/8 1/4 6-5/16 5/16 SD-3L6 Single Uncoated Straight 72.00 34.92
.3750 43375027 43157 3/8 1/4 2-5/16 5/16 SD-3-D Double Cut Uncoated Straight 61.00 24.97
.3750 43375027L6 43836 3/8 1/4 6-5/16 5/16 SD-3L6-D Double Cut Uncoated Straight 29.00 34.92
.3750 43375030 43169 3/8 1/4 2-5/16 5/16 SD-3-F Fine Uncoated Straight 90.00 27.42
.3750 43375030L6 43841 3/8 1/4 6-5/16 5/16 SD-3L6-F Fine Uncoated Straight 16.00 38.47
.3750 43375150 43601 3/8 1/4 2-5/16 5/16 SD-3NF Shear Uncoated Straight 32.00 36.63
.3750 43375020B 19394 3/8 1/4 2-5/16 5/16 SD-3 Single ALtima® Blaze Straight 0.00 46.89
.3750 43375026 76372 3/8 1/4 2-5/16 5/16 SD-3 Diam Std Diamond Uncoated Straight 19.00 30.04
.3937 43393020M 43178 10mm 6mm 54mm 7mm SD-3MZ Single Uncoated Straight 22.00 27.25
.3937 43393027M 43180 10mm 6mm 54mm 7mm SD-3MZ-D Double Cut Uncoated Straight 67.00 27.25
.3937 43393030M 43182 10mm 6mm 54mm 7mm SD-3MZ-F Fine Uncoated Straight 25.00 29.98
.4331 43437520M 43193 11mm 6mm 54mm 8mm SD-4M Single Uncoated Straight 34.00 28.49
.4331 43437527M 43201 11mm 6mm 54mm 8mm SD-4M-D Double Cut Uncoated Straight 191.00 28.49
.4331 43437530M 43209 11mm 6mm 54mm 8mm SD-4M-F Fine Uncoated Straight 5.00 31.23
.4331 43437536M 76374 11mm 6mm 54mm 9mm SD-4M-F Diam Fine Diamond Uncoated Straight 0.00 37.53
.4375 43437520 43189 7/16 1/4 2-3/8 3/8 SD-4 Single Uncoated Straight 59.00 28.49
.4375 43437527 43197 7/16 1/4 2-3/8 3/8 SD-4-D Double Cut Uncoated Straight 21.00 28.49
.4375 43437530 43205 7/16 1/4 2-3/8 3/8 SD-4-F Fine Uncoated Straight 80.00 31.23
.4724 43472020M 43184 12mm 6mm 56mm 9.5mm SD-5MZ Single Uncoated Straight 21.00 33.25
.4724 43472030M 43188 12mm 6mm 56mm 9.5mm SD-5MZ-F Fine Uncoated Straight 23.00 36.63
.4724 43472027M 43186 12mm 6mm 56mm 9.5mm SD-5MZ-D Double Cut Uncoated Straight 19.00 33.25
.4724 43472036M 78060 12mm 6mm 56mm 10mm SD-5MZ-F Diam Fine Diamond Uncoated Straight 2.00 37.88
.5000 43500020 43213 1/2 1/4 2-7/16 7/16 SD-5 Single Uncoated Straight 142.00 34.31
.5000 43500020L6 43846 1/2 1/4 6-7/16 7/16 SD-5L6 Single Uncoated Straight 36.00 47.94
.5000 43500020L6M 43847 12.7mm 6mm 160mm 10mm SD-5L6M Single Uncoated Straight 29.00 47.94
.5000 43500020M 43221 12.7mm 6mm 56mm 10mm SD-5M Single Uncoated Straight 7.00 34.31
.5000 43500027 43225 1/2 1/4 2-7/16 7/16 SD-5-D Double Cut Uncoated Straight 97.00 34.31
.5000 43500027L6 43851 1/2 1/4 6-7/16 7/16 SD-5L6-D Double Cut Uncoated Straight 53.00 47.94
.5000 43500027L6M 43852 12.7mm 6mm 160mm 10mm SD-5L6M-D Double Cut Uncoated Straight 26.00 47.94
.5000 43500027M 43233 12.7mm 6mm 56mm 10mm SD-5M-D Double Cut Uncoated Straight 295.00 34.31
.5000 43500030 43237 1/2 1/4 2-7/16 7/16 SD-5-F Fine Uncoated Straight 46.00 37.67
.5000 43500030L6 43856 1/2 1/4 6-7/16 7/16 SD-5L6-F Fine Uncoated Straight 3.00 52.84
.5000 43500030L6M 43857 12.7mm 6mm 160mm 10mm SD-5L6M-F Fine Uncoated Straight 4.00 52.84
.5000 43500030M 43245 12.7mm 6mm 56mm 10mm SD-5M-F Fine Uncoated Straight 4.00 37.67
.5000 43500150 43621 1/2 1/4 2-7/16 7/16 SD-5NF Shear Uncoated Straight 0.00 47.47
.5000 43500150M 43253 12.7mm 6mm 56mm 10mm SD-5NFM Shear Uncoated Straight 6.00 47.47
.5000 43500026 76375 1/2 1/4 2-7/16 7/16 SD-5 Std Diam Uncoated Straight 17.00 41.2
.5000 43500036 76377 1/2 1/4 2-7/16 7/16 SD-5-F Diam Fine Diamond Uncoated Straight 0.00 45.36
.5000 43500036M 76378 12.7mm 6mm 56mm 10mm SD-5M-F Diam Fine Diamond Uncoated Straight 0.00 45.36
.5000 43500027MT 14909 12.7mm 6mm 56mm 10mm SD-5M-D Double Cut TiN Straight 0.00 60.61
.5000 43500027A 18893 1/2 1/4 2-7/16 7/16 SD-5-D Double ALtima® Straight 0.00 59.36
.6250 43625020 43257 5/8 1/4 2-9/16 9/16 SD-6 Single Uncoated Straight 89.00 42.58
.6250 43625027 43265 5/8 1/4 2-9/16 9/16 SD-6-D Double Cut Uncoated Straight 31.00 42.58
.6250 43625030 43273 5/8 1/4 2-9/16 9/16 SD-6-F Fine Uncoated Straight 1.00 46.72
.6250 43625150 43641 5/8 1/4 2-9/16 9/16 SD-6NF Shear Uncoated Straight 15.00 85.93
.6250 43625027A 76379 5/8 1/4 2-9/16 9/16 SD-6-D Double Cut ALtima® Straight 0.00 53.22
.6299 43625020M 43261 16mm 6mm 59mm 13mm SD-6M Single Uncoated Straight 52.00 42.58
.6299 43625027M 43269 16mm 6mm 59mm 13mm SD-6M-D Double Cut Uncoated Straight 30.00 42.58
.6299 43625030M 43277 16mm 6mm 59mm 13mm SD-6M-F Fine Uncoated Straight 26.00 46.72
.6299 43625150M 43285 16mm 6mm 59mm 13mm SD-6NFM Shear Uncoated Straight 53.00 85.93
.6299 43625036M 76380 16mm 6mm 59mm 13mm SD-6M-F Diam Fine Diamond Uncoated Straight 0.00 56.06
.6299 43625037M 76382 16mm 6mm 59mm 13mm SD-6M-F Alt Diam Fine Alternate Diamond Uncoated Straight 13.00 51.63
.7480 43750020M 43293 19mm 6mm 62mm 16mm SD-7M Single Uncoated Straight 5.00 58.83
.7480 43750027M 43301 19mm 6mm 62mm 16mm SD-7M-D Double Cut Uncoated Straight 30.00 58.83
.7480 43750030M 43309 19mm 6mm 62mm 16mm SD-7M-F Fine Uncoated Straight 10.00 64.61
.7500 43750020 43289 3/4 1/4 2-11/16 11/16 SD-7 Single Uncoated Straight 29.00 58.83
.7500 43750027 43297 3/4 1/4 2-11/16 11/16 SD-7-D Double Cut Uncoated Straight 32.00 58.83
.7500 43750030 43305 3/4 1/4 2-11/16 11/16 SD-7-F Fine Uncoated Straight 0.00 64.61
.9843 43100020M 43005 25mm 6mm 68mm 21mm SD-9M Single Uncoated Straight 20.00 112.29
.9843 43100027M 43013 25mm 6mm 68mm 21mm SD-9M-D Double Cut Uncoated Straight 21.00 112.29
.9843 43100030M 43021 25mm 6mm 68mm 21mm SD-9M-F Fine Uncoated Straight 0.00 123.46
1.0000 43100020 43001 1 1/4 2-15/16 15/16 SD-9 Single Uncoated Straight 43.00 112.29
1.0000 43100027 43009 1 1/4 2-15/16 15/16 SD-9-D Double Cut Uncoated Straight 27.00 112.29
1.0000 43100030 43017 1 1/4 2-15/16 15/16 SD-9-F Fine Uncoated Straight 15.00 123.46
1.0000 43100027T 17564 1 1/4 2-15/16 15/16 SD-9-D Double Cut TiN Straight 0.00 181.33
